مشخصات زلزله

Magnitude	:3.6
Date & Time (UTC)	2015-08-22 09:13:27.1
Date & Time (Local)	1394/5/31  13:43:27.1
Location	Lat:31.562 Lon: 56.45
Region	Kerman Province, 48 km North-West of Ravar
Nearest Cities
	22 km North East of Kuhbanan, Kerman Province
	24 km South East of Asfih, Yazd Province
	27 km North East of Jor, Kerman Province
	40 km South East of Benestan, Yazd Province
	42 km North West of Dehali, Kerman Province
Depth	14 km
Agency

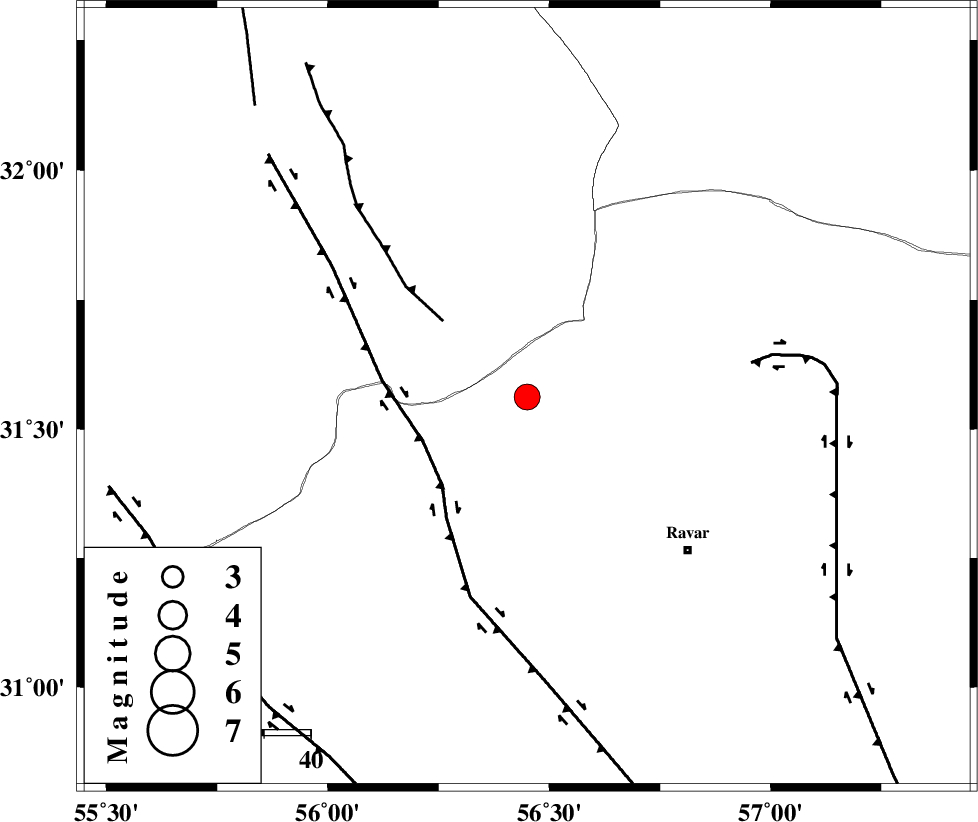

Faults within 150 km:
	KUHBANAN_F (Length: 189 km) , Distance to epicenter: 24 km
	JAFARABAD_F (Length: 60 km) , Distance to epicenter: 24 km
	LAKARKUH_F (Length: 138 km) , Distance to epicenter: 49 km
Number of Phases	9
RMS	0.3
Number of Stations	8
Error in Latitude	>3.3 km
Error in Longitude	2.9 km
Error in Depth	6.5 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
100422	IIEES	KRBR	E	732.9	0.2	2015-08-22 09:14:24	2015-08-22 10:49:00	n
100423	IIEES	KRBR	N	555.8	0.41	2015-08-22 09:14:25	2015-08-22 10:49:00	n
100424	IIEES	YZKH	E	627.1	0.46	2015-08-22 09:14:27	2015-08-22 10:49:00	n
100425	IIEES	YZKH	N	635.2	0.42	2015-08-22 09:14:28	2015-08-22 10:49:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	KRBR	Z	Pg	E		2015-08-22 09:13:56	-0.08	y		178	170
IIEES	YZKH	Z	Pg	E		2015-08-22 09:13:59	-0.41	y		198	298
IIEES	TABS	Z	Pn	E		2015-08-22 09:14:05	0.47	y		240	15
IIEES	BSRN	Z	Pn	E		2015-08-22 09:14:06	-0.41	y		257	79
IIEES	BSRN	N	Sg	E		2015-08-22 09:14:39	0.06	y		257	79
IIEES	NASN	Z	Pn	E		2015-08-22 09:14:21	0.1	y		370	293
IIEES	BNDS	Z	Pn	E		2015-08-22 09:14:32	0.62	y		462	183
IIEES	ZHSF	Z	Pn	E		2015-08-22 09:14:32	-0.26	y		468	116
IIEES	SHRO	Z	Pn	E		2015-08-22 09:14:36	0.04	y		495	355
