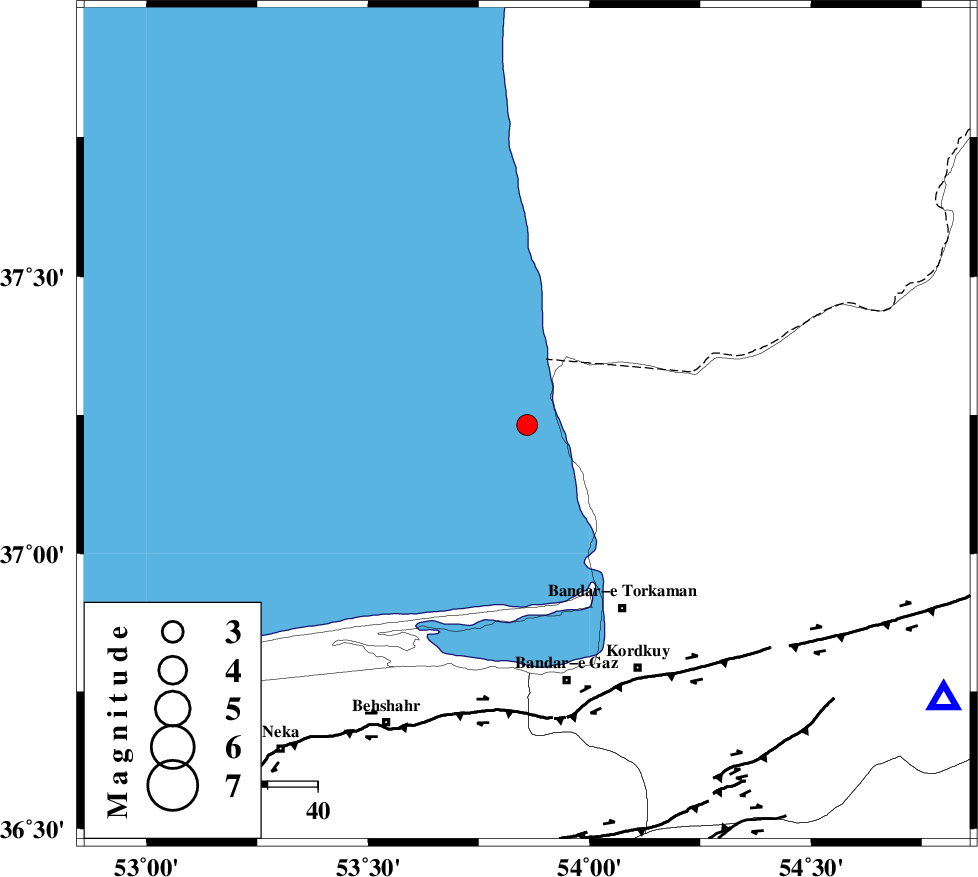

Map Region : lat:-  lon:-

  North
West   East
  South
Show Cities
Show Foreign Cities
Show Fault Mechanism
Show Province Boundaries
Show Stations
Map Title

Magnitude
 :3
Date & Time (UTC) 2025-10-20 02:48:26.5
Date & Time (Local) 1404/7/28  06:18:26.5
Location Lat:37.232 Lon: 53.859
Region Caspian Sea, 41 km North-West of Bandar-e torkaman
Nearest Cities
25 km North West of Gomishtappeh, Golestan Province
41 km North West of Banavar, Golestan Province
41 km North West of Bandar-e torkaman, Golestan Province
45 km North West of Sijval, Golestan Province
52 km North of Bandar-e gaz, Golestan Province
Depth 12 km
Agency
Faults within 150 km:
KHAZAR_F (Length: 523 km) , Distance to epicenter: 55 km
N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 81 km
SHAVAR_F (Length: 87 km) , Distance to epicenter: 88 km
Number of Phases 14
RMS 0.4
Number of Stations 14
Error in Latitude >2.7 km
Error in Longitude 2.7 km
Error in Depth 7.4 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
199729IIEES SCMRVTZ 0.212025-10-20 02:48:592025-10-20 07:09:00n
199730IIEES SCCHTHZ 0.212025-10-20 02:49:102025-10-20 07:09:00n
199731IIEES SCTABSZ 0.0212025-10-20 02:49:352025-10-20 07:09:00n
199732IIEES SCMEHZ 0.00612025-10-20 02:49:552025-10-20 07:09:00n
199733IIEES SCSHRTZ 0.00912025-10-20 02:50:012025-10-20 07:09:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCGLOZ EPg E2025-10-20 02:48:39-0.8y081182
IIEES SCABGHZ EPg E2025-10-20 02:48:440.6y0100123
IIEES SCANJZ EPg E2025-10-20 02:48:580.5y0196179
IIEES SCMRVTZ EPn E2025-10-20 02:48:590.2y020377
IIEES SCSHROZ EPn E2025-10-20 02:49:00-3.2n4236125
IIEES SCDAMVZ EPn E2025-10-20 02:49:00-5n4245224
IIEES SCCHTHZ EPn E2025-10-20 02:49:100.1y0285239
IIEES SCBJRDZ EPn E2025-10-20 02:49:13-0.1y031881
IIEES SCGHVRZ EPn E2025-10-20 02:49:230.6y0386218
IIEES SCASAOZ EPn E2025-10-20 02:49:31-0.2y0457229
IIEES SCTABSZ EPn E2025-10-20 02:49:35-0.2y0496143
IIEES SCKAGHZ EPn E2025-10-20 02:49:41-0.1y054393
IIEES SCMEHZ EPn E2025-10-20 02:49:55-0.2y0652174
IIEES SCSHRTZ EPn E2025-10-20 02:50:01-0.7y0707124
