Magnitude |
:3.3 |
| Date & Time (UTC) | 2017-02-20 03:05:29.9 |
| Date & Time (Local) | 1395/12/2 06:35:29.9 |

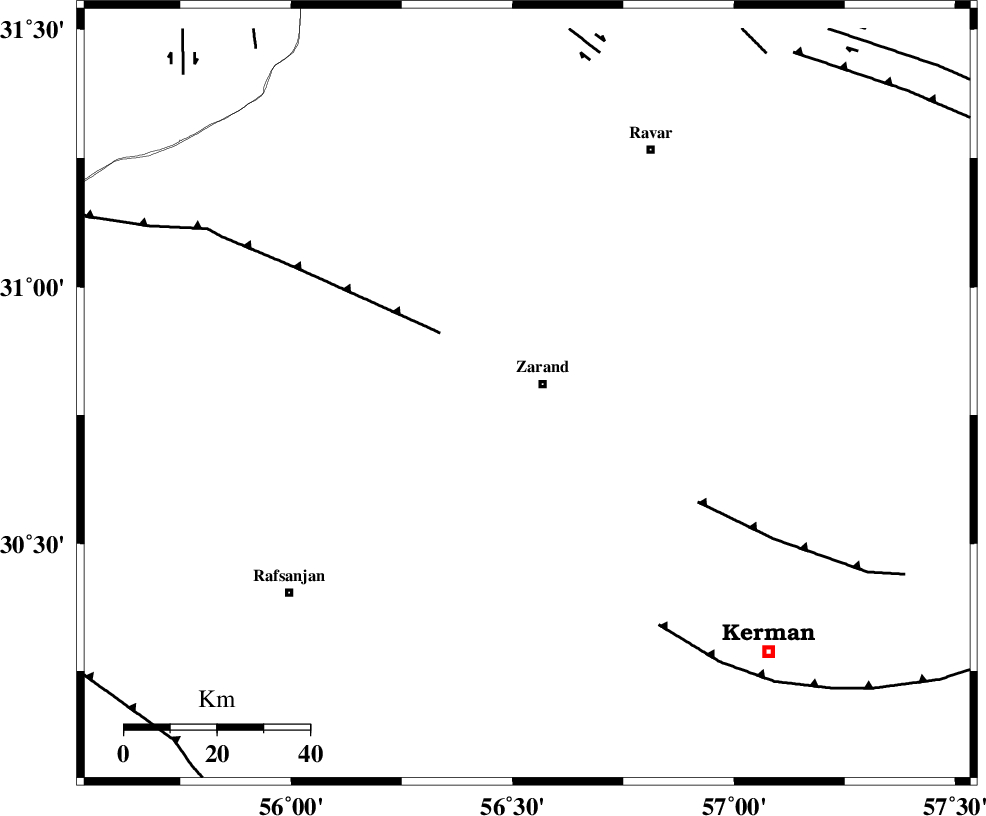

| Location | Lat:30.791 Lon: 56.533 |
| Region | Kerman Province, 4 km of Zarand |
Nearest Cities |
|
| 2 km North of Mohammadabad, Kerman Province | |
| 4 km of Zarand, Kerman Province | |
| 12 km North West of Bahaabad, Kerman Province | |
| 25 km West of Hatkan, Kerman Province | |
| 25 km North West of Khankuk, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 19 km | |
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 29 km | |
| CHATRUD_F (Length: 37 km) , Distance to epicenter: 44 km | |
| Number of Phases | 13 |
| RMS | 0.5 |
| Number of Stations | 11 |
| Error in Latitude | >3.2 km |
| Error in Longitude | 5.2 km |
| Error in Depth | 8.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 113443 | IIEES | KRBR | N | 829.3 | 0.33 | 2017-02-20 03:05:59 | 2017-02-20 04:53:00 | n |
| 113444 | IIEES | KRBR | E | 1009.5 | 0.33 | 2017-02-20 03:06:03 | 2017-02-20 04:53:00 | n |
| 113445 | IIEES | YZKH | N | 169 | 0.45 | 2017-02-20 03:06:47 | 2017-02-20 04:53:00 | n |
| 113446 | IIEES | YZKH | E | 137.4 | 0.22 | 2017-02-20 03:06:48 | 2017-02-20 04:53:00 | n |
| 113447 | IIEES | BNDS | E | 41.5 | 0.52 | 2017-02-20 03:07:28 | 2017-02-20 04:53:00 | n |
| 113448 | IIEES | BNDS | N | 46.8 | 0.29 | 2017-02-20 03:07:30 | 2017-02-20 04:53:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2017-02-20 03:05:45 | -0.2 | y | 92.3 | 166 | |||
| IIEES | KRBR | E | Sg | E | 2017-02-20 03:05:57 | -0.06 | y | 92.3 | 166 | |||
| IIEES | YZKH | Z | Pn | E | 2017-02-20 03:06:09 | -0.25 | y | 256 | 314 | |||
| IIEES | YZKH | E | Sg | E | 2017-02-20 03:06:41 | -0.58 | y | 256 | 314 | |||
| IIEES | BSRN | Z | Pn | E | 2017-02-20 03:06:11 | -0.55 | y | 279 | 62 | |||
| IIEES | TABS | Z | Pn | E | 2017-02-20 03:06:17 | 0.13 | y | 322 | 10 | |||
| IIEES | BNDS | Z | Pn | E | 2017-02-20 03:06:24 | -0.29 | y | 378 | 185 | |||
| IIEES | NASN | Z | Pn | E | 2017-02-20 03:06:30 | 0.37 | y | 417 | 303 | |||
| IIEES | GHIR | Z | Pn | E | 2017-02-20 03:06:33 | 0.52 | y | 442 | 232 | |||
| IIEES | SHRT | Z | Pn | E | 2017-02-20 03:06:37 | 0.77 | y | 475 | 47 | |||
| IIEES | SHRO | Z | Pn | E | 2017-02-20 03:06:49 | 0.07 | y | 581 | 355 | |||
| IIEES | ASAO | Z | Pn | E | 2017-02-20 03:07:10 | 1.3 | y | 739 | 306 | |||
| IIEES | MRVT | Z | Pn | E | 2017-02-20 03:07:12 | -0.1 | y | 763 | 357 | |||
