Map Title

Magnitude
 :5.8
Date & Time (UTC) 2026-07-20 03:48:51.4
Date & Time (Local) 1405/4/29  07:18:51.4

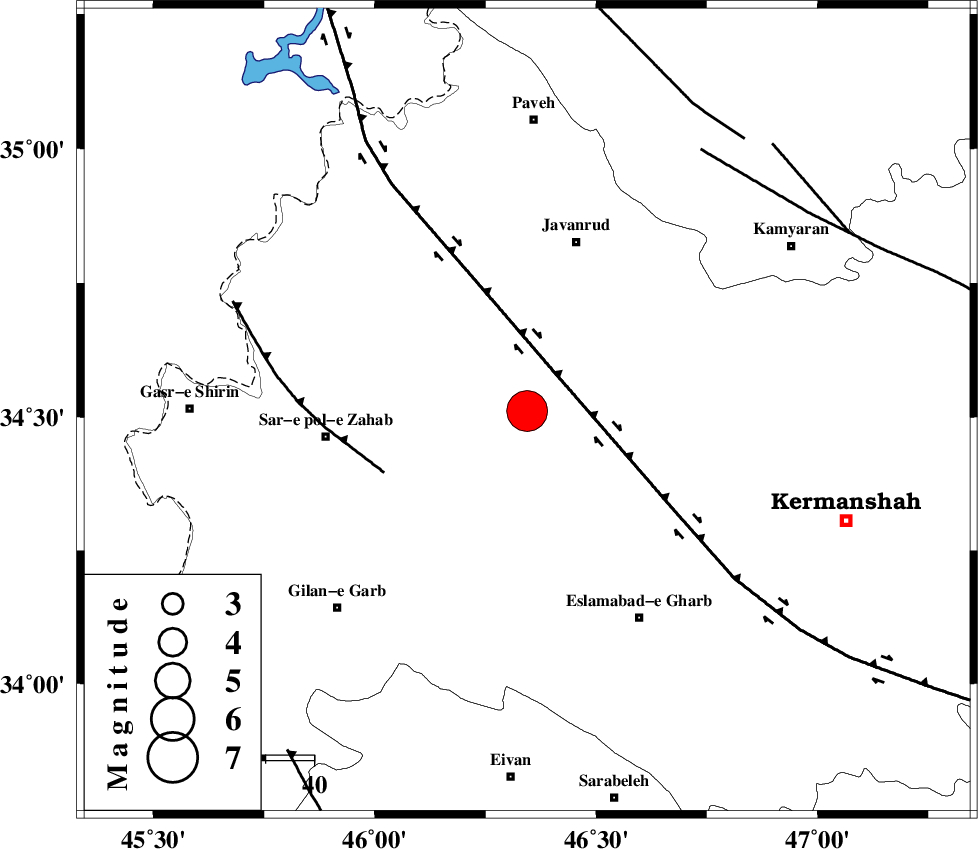

Location Lat:34.511 Lon: 46.344
Region Kermanshah Province, 37 km South-West of Javanrud
Nearest Cities
3 km North of Zavleh olia, Kermanshah Province
16 km North of Gahvareh, Kermanshah Province
20 km South of Mirabad, Kermanshah Province
22 km West of Kuzran, Kermanshah Province
22 km South West of Dolatabad, Kermanshah Province
Depth 12 km
Agency
Faults within 150 km:
HZF4 (Length: 492 km) , Distance to epicenter: 10 km
MFF8 (Length: 48 km) , Distance to epicenter: 32 km
SARTAKHT_F (Length: 78 km) , Distance to epicenter: 65 km
Number of Phases 23
RMS 0.4
Number of Stations 23
Error in Latitude >2.2 km
Error in Longitude 2.2 km
Error in Depth 17.4 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
202199IIEES SCBSR2Z 1012026-07-20 03:49:592026-07-20 07:09:00n
202200IIEES SCGNIZ 512026-07-20 03:50:192026-07-20 07:09:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCDOBZ EPg E2026-07-20 03:49:220.3y0187115
IIEES SCBSR2Z EPn E2026-07-20 03:49:590.2y0483166
IIEES SCBRJZ EPn E2026-07-20 03:50:06-0.7y0542122
IIEES SCSFBZ EPn E2026-07-20 03:50:06-0.7y054292
IIEES SCABH1Z EPn E2026-07-20 03:50:09-0.1y0568140
IIEES SCGUROZ EPn E2026-07-20 03:50:12-0.8y0592319
IIEES SCNASNZ EPn E2026-07-20 03:50:14-3.2n4629108
IIEES SCGNIZ EPn E2026-07-20 03:50:190.4y0642347
IIEES SCAHRMZ EPn E2026-07-20 03:50:33-2.6n4783143
IIEES SCYZKHZ EPn E2026-07-20 03:50:08-30.5n4802107
IIEES SCARPRZ EPn E2026-07-20 03:50:48-0.1y0877305
IIEES SCSHROZ EPn E2026-07-20 03:50:500.1y089579
IIEES SCGHIRZ EPn E2026-07-20 03:50:54-1.1y0936138
IIEES SCKRVRZ EPn E2026-07-20 03:51:07-0.2y01032108
IIEES SCBJRDZ EPn E2026-07-20 03:51:09-0.8y0105770
IIEES SCKRBRZ EPn E2026-07-20 03:51:13-3n41103117
IIEES SCRAYNZ EPn E2026-07-20 03:51:28-2.7n41221184
IIEES SCBSRNZ EPn E2026-07-20 03:51:15-16n41224103
IIEES SCGENOZ EPn E2026-07-20 03:51:28-3.4n41226130
IIEES SCSHRTZ EPn E2026-07-20 03:51:39-0.2y0129194
IIEES SCUOSSZ EPn E2026-07-20 03:51:51-5.3n41426138
IIEES SCZHSFZ EPn E2026-07-20 03:52:01-0.1y01466112
IIEES SCCHBRZ EPn E2026-07-20 03:52:21-6.7n41684126
