Magnitude |
:3.8 |
| Date & Time (UTC) | 2014-11-25 04:30:36.0 |
| Date & Time (Local) | 1393/9/4 08:00:36.0 |

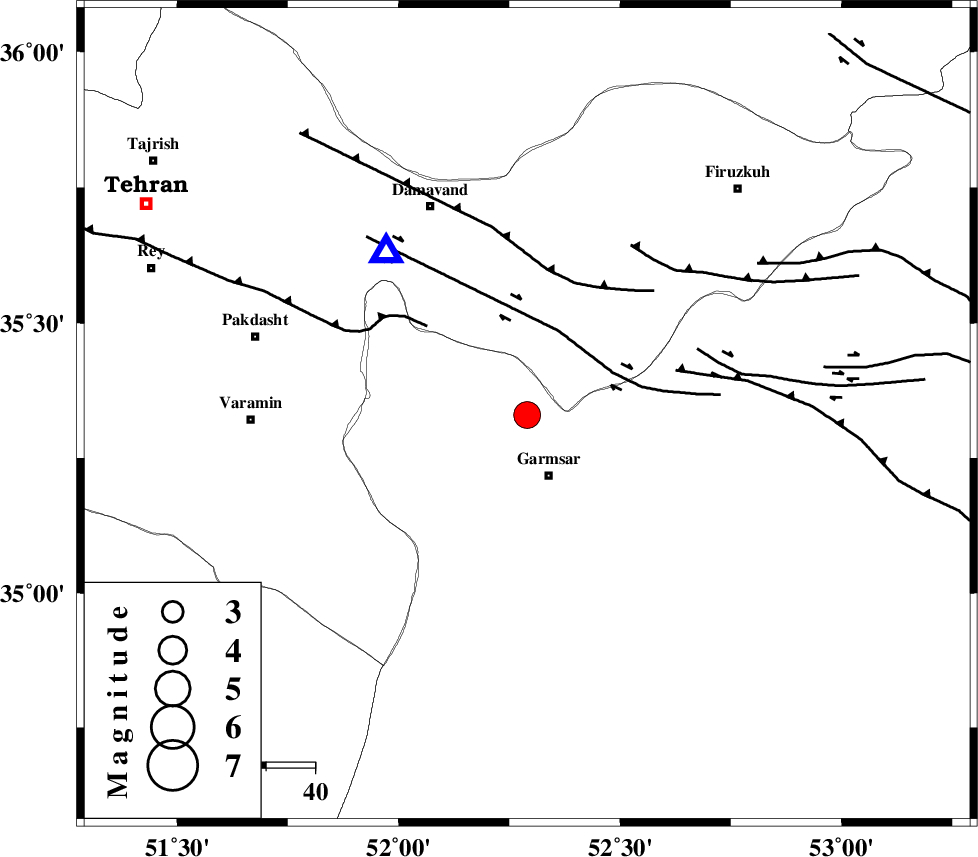

| Location | Lat:35.33 Lon: 52.29 |
| Region | Semnan Province, 13 km North of Garmsar |
Nearest Cities |
|
| 13 km North of Garmsar, Semnan Province | |
| 16 km North of Lajran, Semnan Province | |
| 21 km North West of Davarabad, Semnan Province | |
| 21 km East of Evanekay, Semnan Province | |
| 21 km North West of Gardovan, Semnan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| GARMSAR_F (Length: 77 km) , Distance to epicenter: 8 km | |
| EYVANEKEY_F (Length: 74 km) , Distance to epicenter: 8 km | |
| PISHAV_F (Length: 34 km) , Distance to epicenter: 37 km | |
| Number of Phases | 12 |
| RMS | 0.3 |
| Number of Stations | 11 |
| Error in Latitude | >2.2 km |
| Error in Longitude | 3.4 km |
| Error in Depth | 4.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 94369 | IIEES | DAMV | E | 8927.2 | 0.09 | 2014-11-25 04:30:55 | 2014-11-25 05:03:00 | n |
| 94370 | IIEES | CHTH | N | 2039.5 | 0.63 | 2014-11-25 04:31:13 | 2014-11-25 05:03:00 | n |
| 94371 | IIEES | ASAO | E | 681.3 | 0.45 | 2014-11-25 04:31:48 | 2014-11-25 05:03:00 | n |
| 94372 | IIEES | ASAO | N | 628.6 | 0.68 | 2014-11-25 04:31:56 | 2014-11-25 05:03:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | DAMV | Z | Pg | E | 2014-11-25 04:30:44 | -0.25 | y | 44.4 | 319 | |||
| IIEES | CHTH | Z | Pg | E | 2014-11-25 04:30:56 | -0.13 | y | 124 | 302 | |||
| IIEES | ASAO | Z | Pn | E | 2014-11-25 04:31:11 | -0.06 | y | 224 | 248 | |||
| IIEES | KHMZ | Z | P | E | 2014-11-25 04:31:18 | 0.09 | y | 277 | 231 | |||
| IIEES | NASN | Z | Pn | E | 2014-11-25 04:31:19 | 0.22 | y | 285 | 170 | |||
| IIEES | NASN | E | Sg | E | 2014-11-25 04:31:56 | -0.1 | y | 285 | 170 | |||
| IIEES | ZNJK | Z | Pn | E | 2014-11-25 04:31:28 | -0.01 | y | 358 | 296 | |||
| IIEES | YZKH | Z | Pn | E | 2014-11-25 04:31:32 | -0.02 | y | 389 | 146 | |||
| IIEES | TABS | Z | Pn | E | 2014-11-25 04:31:43 | 0.01 | y | 481 | 111 | |||
| IIEES | GRMI | Z | P | E | 2014-11-25 04:31:52 | 0.61 | y | 550 | 316 | |||
| IIEES | BSRN | Z | Pn | E | 2014-11-25 04:32:14 | -0.64 | y | 735 | 119 | |||
| IIEES | SHRT | Z | Pn | E | 2014-11-25 04:32:18 | 0.36 | y | 758 | 102 | |||
