مشخصات زلزله

Magnitude	:3.1
Date & Time (UTC)	2014-10-22 17:31:59.2
Date & Time (Local)	1393/7/30  21:01:59.2

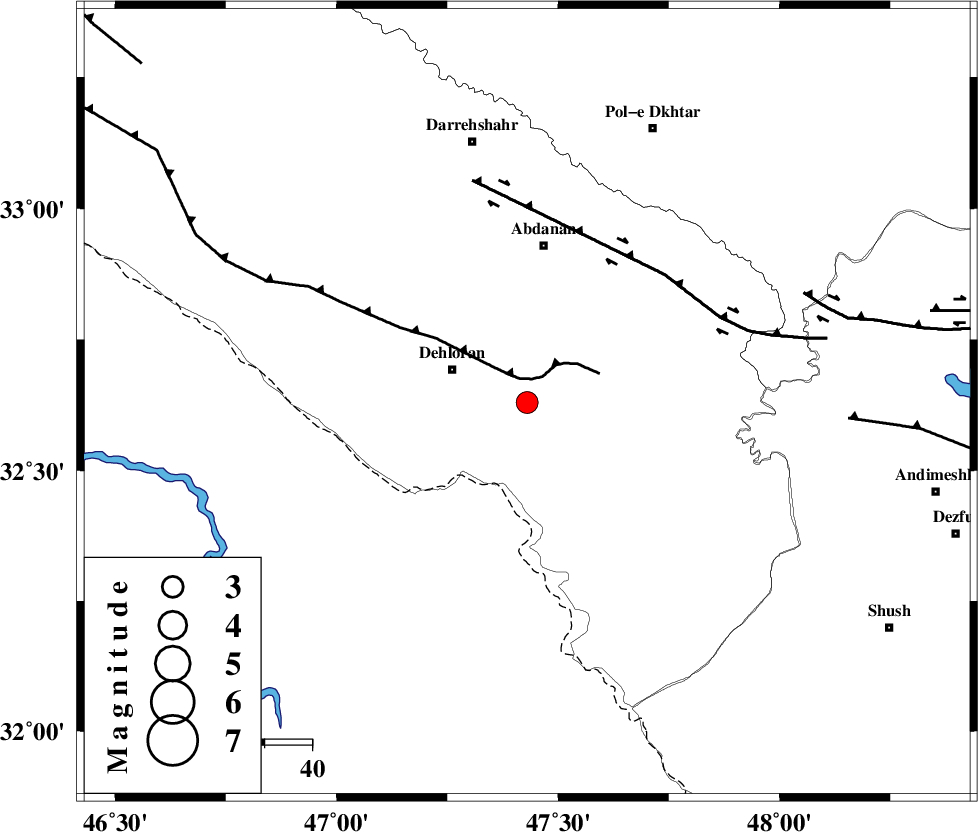

Location	Lat:32.63 Lon: 47.43
Region	Ilam Province, 18 km East of Dehloran
Nearest Cities
	11 km North of Musian, Ilam Province
	17 km East of Dehloran, Ilam Province
	32 km South West of Sarabbagh, Ilam Province
	34 km South of Abdanan, Ilam Province
	48 km South East of Bishehzar, Ilam Province
Depth	14 km
Agency
Faults within 150 km:
	MFF6 (Length: 144 km) , Distance to epicenter: 5 km
	BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 40 km
	BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 63 km
Number of Phases	6
RMS	0.1
Number of Stations	4
Error in Latitude	>1.9 km
Error in Longitude	4.8 km
Error in Depth	5.9 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
94052	IIEES	SHGR	N	301.1	0.4	2014-10-22 17:32:43	2014-10-22 07:17:00	n
94053	IIEES	SHGR	E	530.2	0.64	2014-10-22 17:32:44	2014-10-22 07:17:00	n
94054	IIEES	ASAO	E	47.5	0.56	2014-10-22 17:33:41	2014-10-22 07:17:00	n
94055	IIEES	ASAO	N	43.9	0.6	2014-10-22 17:33:42	2014-10-22 07:17:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	SHGR	Z	Pg	E		2014-10-22 17:32:22	-0.08	y		141	114
IIEES	SHGR	N	Sg	E		2014-10-22 17:32:39	0.05	y		141	114
IIEES	KHMZ	Z	Pn	E		2014-10-22 17:32:40	0.1	y		266	62
IIEES	KHMZ	E	Sg	E		2014-10-22 17:33:14	-0.03	y		266	62
IIEES	ASAO	Z	Pn	E		2014-10-22 17:32:46	0.02	y		321	48
IIEES	GHVR	Z	Pn	E		2014-10-22 17:32:57	-0.08	y		409	59
