مشخصات زلزله

Magnitude	:3.1
Date & Time (UTC)	2014-08-23 21:54:17.6
Date & Time (Local)	1393/6/2  02:24:17.6

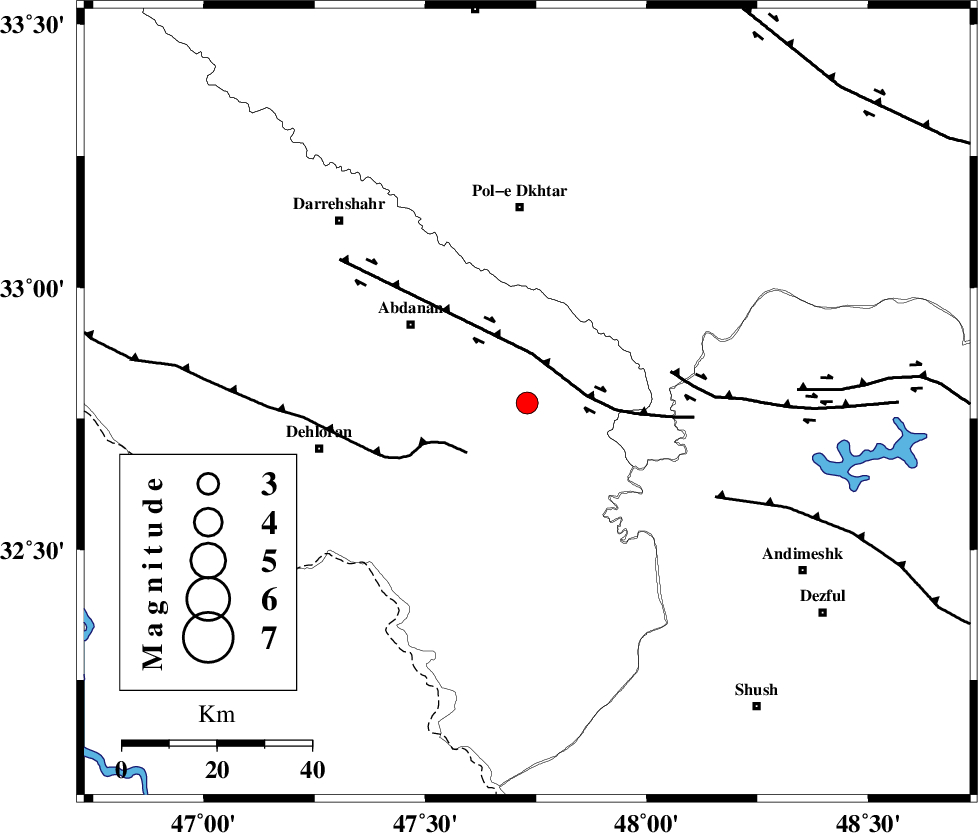

Location	Lat:32.78 Lon: 47.73
Region	Ilam Province, 42 km South of Pol-e dokhtar
Nearest Cities
	20 km South East of Sarabbagh, Ilam Province
	30 km South East of Abdanan, Ilam Province
	35 km South of Sarab hammam, Lorestan Province
	42 km South of Pol-e dokhtar, Lorestan Province
	43 km North East of Musian, Ilam Province
Depth	14 km
Agency
Faults within 150 km:
	BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 11 km
	MFF6 (Length: 144 km) , Distance to epicenter: 17 km
	BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 31 km
Number of Phases	5
RMS	0.3
Number of Stations	4
Error in Latitude	>6.7 km
Error in Longitude	12.9 km
Error in Depth	7.9 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
93252	IIEES	SHGR	N	384.1	0.84	2014-08-23 21:54:57	2014-08-24 12:03:00	n
93253	IIEES	SHGR	E	382.6	0.52	2014-08-23 21:55:07	2014-08-24 12:03:00	n
93254	IIEES	AHRM	N	12.5	0.4	2014-08-23 21:56:41	2014-08-24 12:03:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	SHGR	Z	Pg	E		2014-08-23 21:54:38	-0.31	y		125	126
IIEES	SHGR	N	Sg	E		2014-08-23 21:54:53	-0.02	y		125	126
IIEES	KHMZ	Z	Pn	E		2014-08-23 21:54:54	0.37	y		234	62
IIEES	SNGE	Z	Pn	E		2014-08-23 21:54:58	0.33	y		260	352
IIEES	SNGE	N	Sg	E		2014-08-23 21:55:30	-0.37	y		260	352
