مشخصات زلزله

Magnitude	:3.5
Date & Time (UTC)	2014-08-20 19:31:13.9
Date & Time (Local)	1393/5/30  00:01:13.9

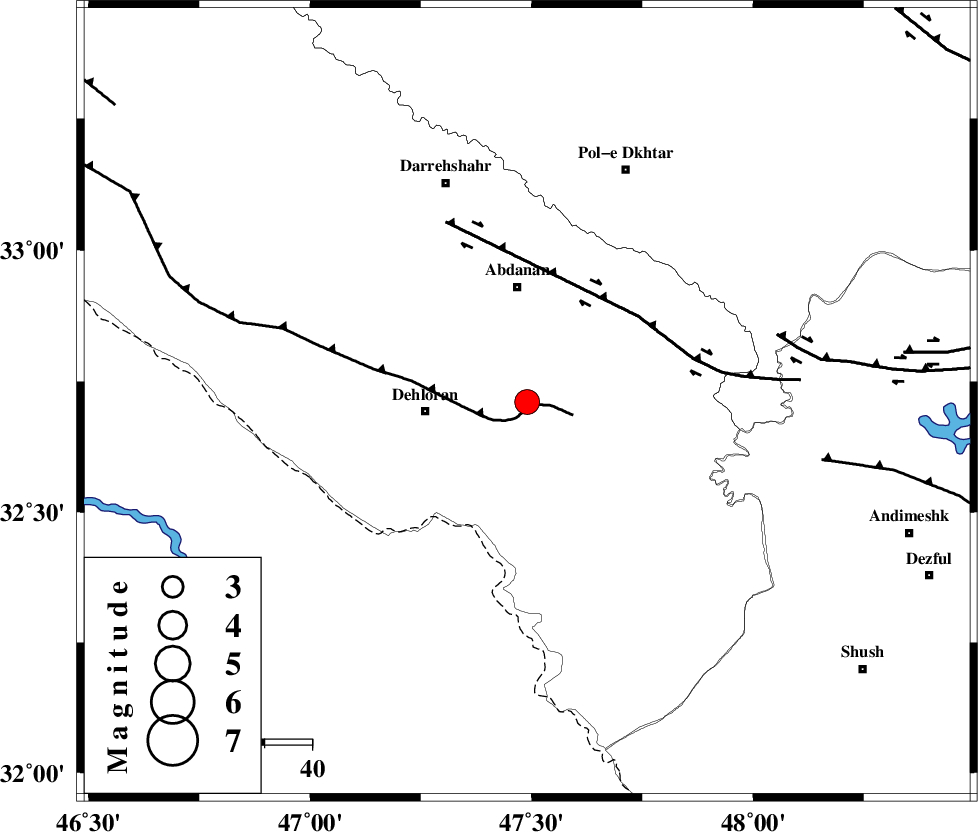

Location	Lat:32.71 Lon: 47.49
Region	Ilam Province, 24 km South of Abdanan
Nearest Cities
	22 km North East of Dehloran, Ilam Province
	22 km North East of Musian, Ilam Province
	22 km South of Sarabbagh, Ilam Province
	25 km South of Abdanan, Ilam Province
	47 km South West of Sarab hammam, Lorestan Province
Depth	14 km
Agency
Faults within 150 km:
	MFF6 (Length: 144 km) , Distance to epicenter: 1 km
	BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 30 km
	BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 55 km
Number of Phases	7
RMS	0.1
Number of Stations	5
Error in Latitude	>1.6 km
Error in Longitude	3.7 km
Error in Depth	5.4 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
93183	IIEES	AHRM	E	29.2	0.64	2014-08-20 19:34:12	2014-08-20 09:07:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	KHMZ	Z	Pn	E		2014-08-20 19:31:53	0.04	y		257	63
IIEES	KHMZ	Z	Sg	E		2014-08-20 19:32:26	0	y		257	63
IIEES	SNGE	Z	Pn	E		2014-08-20 19:31:54	-0.05	y		264	357
IIEES	SNGE	N	S	E		2014-08-20 19:32:24	0.06	y		264	357
IIEES	CHTH	Z	Pn	E		2014-08-20 19:32:22	-0.11	y		487	42
IIEES	DAMV	Z	Pn	E		2014-08-20 19:32:26	-0.02	y		524	51
IIEES	AHRM	Z	Pn	E		2014-08-20 19:32:31	0.04	y		561	139
