مشخصات زلزله

Magnitude	:4.3
Date & Time (UTC)	2014-08-20 19:03:18.3
Date & Time (Local)	1393/5/29  23:33:18.3

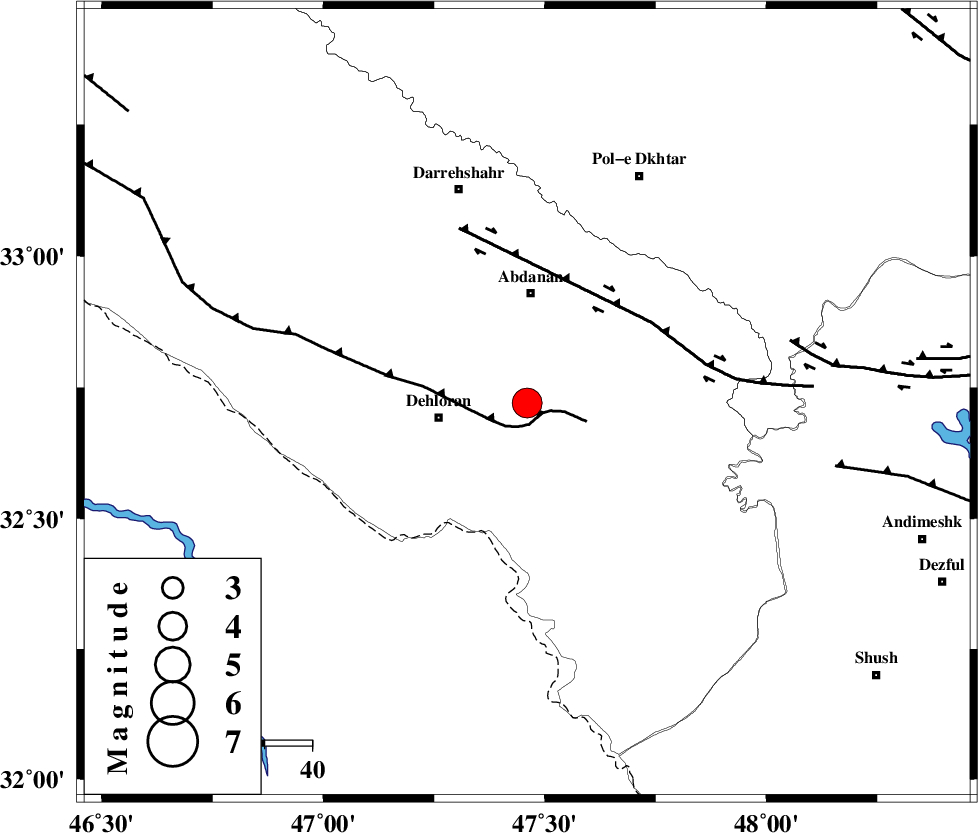

Location	Lat:32.72 Lon: 47.46
Region	Ilam Province, 23 km South of Abdanan
Nearest Cities
	19 km North East of Dehloran, Ilam Province
	21 km North of Musian, Ilam Province
	22 km South West of Sarabbagh, Ilam Province
	23 km South of Abdanan, Ilam Province
	47 km South East of Bishehzar, Ilam Province
Depth	14 km
Agency
Faults within 150 km:
	MFF6 (Length: 144 km) , Distance to epicenter: 4 km
	BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 31 km
	BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 57 km
Number of Phases	7
RMS	0.1
Number of Stations	5
Error in Latitude	>1.6 km
Error in Longitude	4.2 km
Error in Depth	6 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
93176	IIEES	AHRM	N	102.5	0.64	2014-08-20 19:06:24	2014-08-20 08:22:00	n
93177	IIEES	BNDS	N	20.2	0.44	2014-08-20 19:07:22	2014-08-20 08:22:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	KHMZ	Z	Pn	E		2014-08-20 19:03:58	0.17	y		259	64
IIEES	KHMZ	Z	Sg	E		2014-08-20 19:04:31	-0.03	y		259	64
IIEES	SNGE	Z	Pn	E		2014-08-20 19:03:58	-0.04	y		263	358
IIEES	SNGE	N	S	E		2014-08-20 19:04:28	0	y		263	358
IIEES	CHTH	Z	Pn	E		2014-08-20 19:04:26	-0.07	y		489	43
IIEES	AHRM	Z	Pn	E		2014-08-20 19:04:35	-0.04	y		564	138
IIEES	BNDS	Z	Pn	E		2014-08-20 19:05:33	-0.12	y		1026	123
