مشخصات زلزله

Magnitude	:3
Date & Time (UTC)	2014-08-20 04:49:18.6
Date & Time (Local)	1393/5/29  09:19:18.6

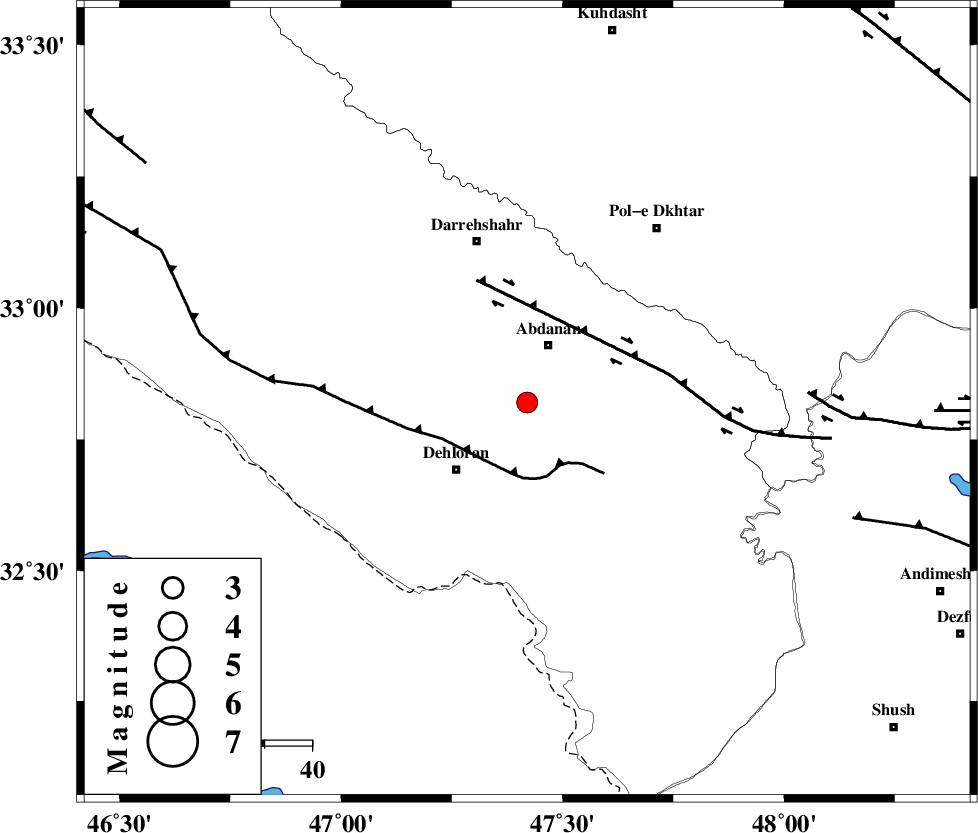

Location	Lat:32.82 Lon: 47.42
Region	Ilam Province, 13 km South of Abdanan
Nearest Cities
	13 km South of Abdanan, Ilam Province
	16 km West of Sarabbagh, Ilam Province
	21 km North East of Dehloran, Ilam Province
	31 km North of Musian, Ilam Province
	36 km South East of Darreh Shahr, Ilam Province
Depth	18 km
Agency
Faults within 150 km:
	MFF6 (Length: 144 km) , Distance to epicenter: 15 km
	BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 28 km
	BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 59 km
Number of Phases	5
RMS	0
Number of Stations	5
Error in Latitude	>20 km
Error in Longitude	14.1 km
Error in Depth	28.3 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
93160	IIEES	SNGE	N	55.7	0.52	2014-08-20 04:50:44	2014-08-20 08:01:00	n
93161	IIEES	AHRM	N	13.6	0.48	2014-08-20 04:53:25	2014-08-20 08:01:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	SNGE	Z	Pn	E		2014-08-20 04:49:57	0	y		252	358
IIEES	SNGE	N	Sg	E		2014-08-20 04:50:29	0.01	y		252	358
IIEES	KHMZ	Z	Pn	E		2014-08-20 04:49:58	0.06	y		258	66
IIEES	CHTH	Z	Pn	E		2014-08-20 04:50:26	-0.03	y		483	44
IIEES	DAMV	Z	Pn	E		2014-08-20 04:50:30	-0.08	y		522	52
