Magnitude |
:3.9 |
| Date & Time (UTC) | 2014-07-05 23:41:43.2 |
| Date & Time (Local) | 1393/4/15 04:11:43.2 |

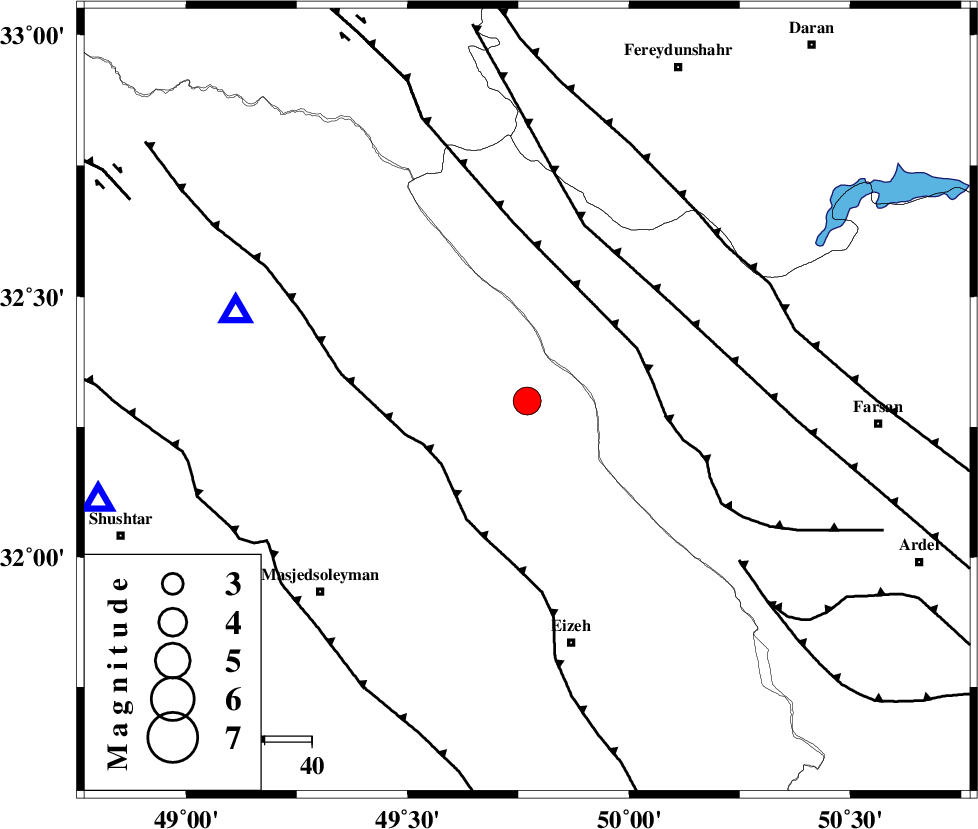

| Location | Lat:32.3 Lon: 49.77 |
| Region | Khoozestan Province, 37 km South-West of Chelgard |
Nearest Cities |
|
| 20 km North East of Paabshalal, Khoozestan Province | |
| 33 km North East of Qale-yekhvaju, Khoozestan Province | |
| 34 km North of Torshak, Khoozestan Province | |
| 38 km South West of Chelgard, Chaharmahal Bakhtiari Province | |
| 45 km South of Durak, Chaharmahal Bakhtiari Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF2 (Length: 205 km) , Distance to epicenter: 23 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 26 km | |
| ARDAL_F (Length: 170 km) , Distance to epicenter: 37 km | |
| Number of Phases | 10 |
| RMS | 0.3 |
| Number of Stations | 10 |
| Error in Latitude | >3.1 km |
| Error in Longitude | 5.6 km |
| Error in Depth | 9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 92754 | IIEES | SHGR | N | 2450.5 | 0.66 | 2014-07-05 23:42:20 | 2014-07-06 05:34:00 | n |
| 92755 | IIEES | SHGR | E | 2747.8 | 0.77 | 2014-07-05 23:42:27 | 2014-07-06 05:34:00 | n |
| 92756 | IIEES | ASAO | N | 459.5 | 0.77 | 2014-07-05 23:43:08 | 2014-07-06 05:34:00 | n |
| 92757 | IIEES | BNDS | E | 26.9 | 0.32 | 2014-07-05 23:45:05 | 2014-07-06 05:34:00 | n |
| 92758 | IIEES | BNDS | N | 27.2 | 0.48 | 2014-07-05 23:45:13 | 2014-07-06 05:34:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2014-07-05 23:41:59 | -0.02 | y | 93.9 | 257 | |||
| IIEES | ASAO | Z | Pn | E | 2014-07-05 23:42:22 | -0.02 | y | 250 | 5 | |||
| IIEES | ASAO | E | Sg | E | 2014-07-05 23:42:53 | -0.21 | y | 250 | 5 | |||
| IIEES | GHVR | Z | Pn | E | 2014-07-05 23:42:25 | 0.48 | y | 278 | 29 | |||
| IIEES | CHTH | Z | Pn | E | 2014-07-05 23:42:43 | 0.43 | y | 419 | 17 | |||
| IIEES | YZKH | Z | Pn | E | 2014-07-05 23:42:47 | -0.32 | y | 454 | 88 | |||
| IIEES | SHRO | Z | Pn | E | 2014-07-05 23:43:18 | -0.47 | y | 707 | 53 | |||
| IIEES | KRBR | Z | P | E | 2014-07-05 23:43:19 | -0.13 | y | 714 | 109 | |||
| IIEES | GRMI | Z | Pn | E | 2014-07-05 23:43:22 | -0.38 | y | 742 | 347 | |||
| IIEES | SHRT | Z | Pn | E | 2014-07-05 23:43:54 | 0.55 | y | 994 | 79 | |||
