Magnitude
:4.3
Date & Time (UTC) 2014-02-20 04:18:37.6
Date & Time (Local) 1392/12/1  07:48:37.6

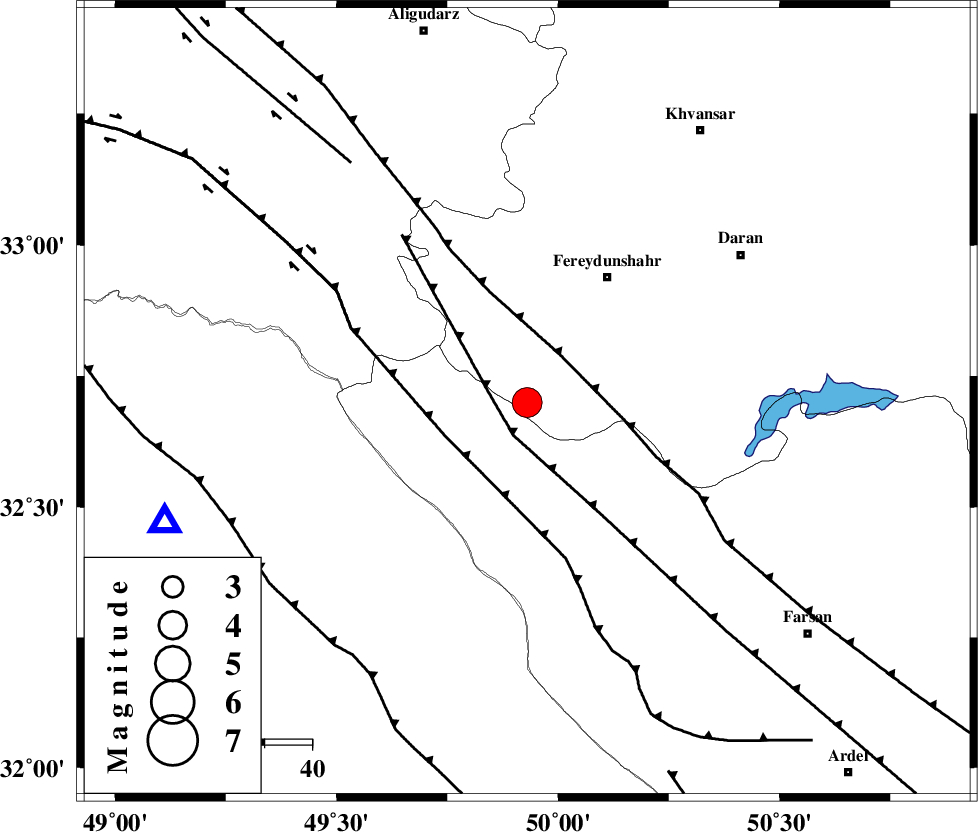

Location Lat:32.7 Lon: 49.93
Region Esfahan Province, 32 km South-West of Fereydunshahr
Nearest Cities
6 km North of Durak, Chaharmahal Bakhtiari Province
18 km South of Masir, Esfahan Province
24 km South West of Sibak, Esfahan Province
28 km West of Ghale? sorkh, Esfahan Province
32 km South West of Fereydunshahr, Esfahan Province
Depth 18 km
Agency
Faults within 150 km:
ARDAL_F (Length: 170 km) , Distance to epicenter: 8 km
MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 12 km
ZARDKUH_F (Length: 139 km) , Distance to epicenter: 19 km
Number of Phases 6
RMS 0.1
Number of Stations 5
Error in Latitude >1.5 km
Error in Longitude 2.4 km
Error in Depth 3.3 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
91855IIEESSHGRN 6233.70.322014-02-20 04:19:172014-02-20 10:27:00n
91856IIEESGHVRN 1805.30.442014-02-20 04:19:492014-02-20 10:27:00n
91857IIEESGHVRE 1932.80.442014-02-20 04:19:492014-02-20 10:27:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEESSHGRZ Pg E2014-02-20 04:18:580.1y125239
IIEESASAOZ Pn E2014-02-20 04:19:10-0.03y2052
IIEESASAON Sg E2014-02-20 04:19:36-0.05y2052
IIEESGHVRN Sg E2014-02-20 04:19:430.15y23231
IIEESYZKHZ Pn E2014-02-20 04:19:39-0.1y43993
IIEESZNJKZ Pn E2014-02-20 04:19:41-0.12y455346
