مشخصات زلزله

Magnitude	:3.1
Date & Time (UTC)	2013-12-17 08:36:06.7
Date & Time (Local)	1392/9/26  12:06:06.7

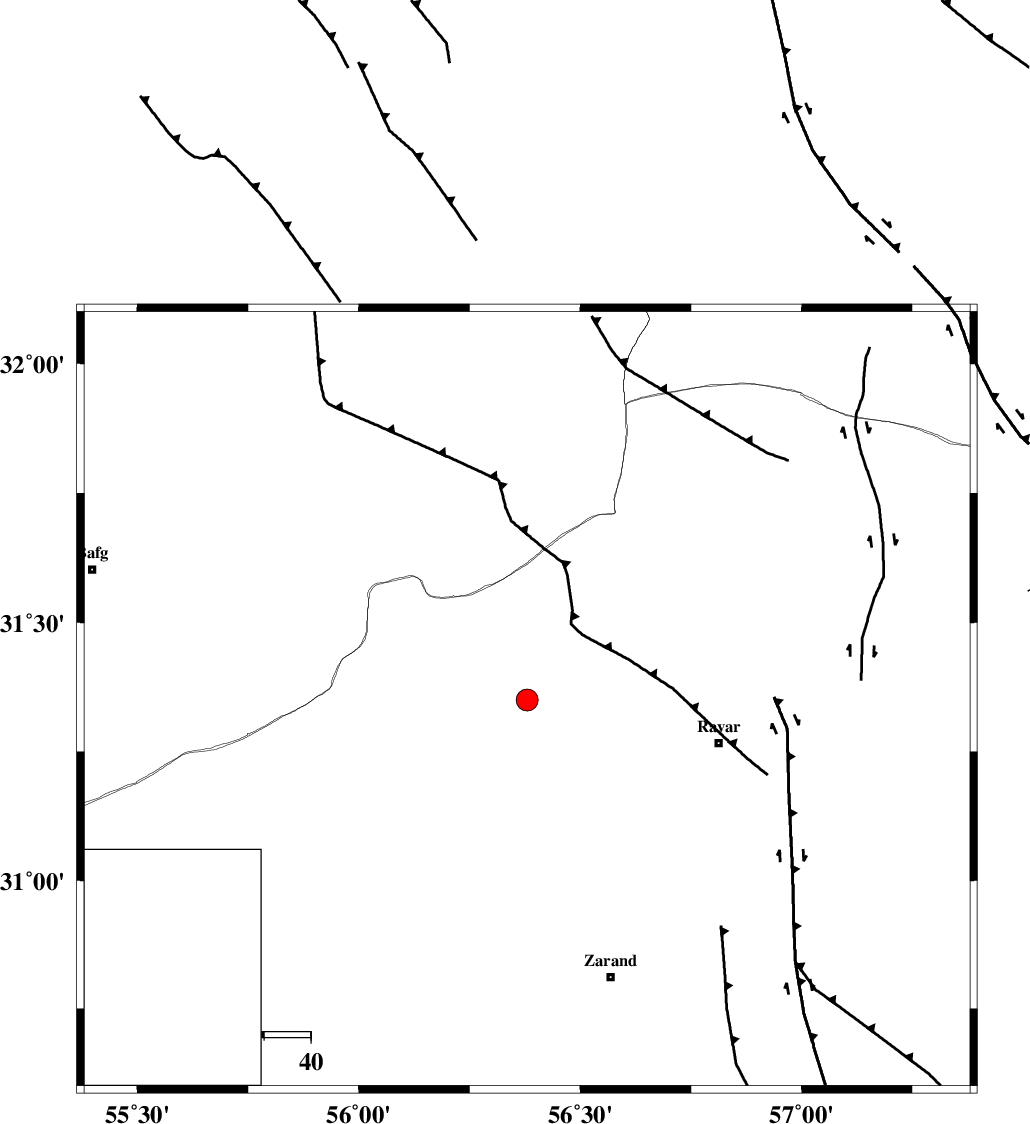

Location	Lat:31.35 Lon: 56.38
Region	Kerman Province, 42 km West of Ravar
Nearest Cities
	9 km of Jor, Kerman Province
	11 km of Kuhbanan, Kerman Province
	23 km North of Toghroljerd, Kerman Province
	37 km North West of Dasht-e khak, Kerman Province
	38 km South East of Asfih, Yazd Province
Depth	14 km
Agency
Faults within 150 km:
	KUHBANAN_F (Length: 189 km) , Distance to epicenter: 11 km
	JAFARABAD_F (Length: 60 km) , Distance to epicenter: 42 km
	LAKARKUH_F (Length: 138 km) , Distance to epicenter: 63 km
Number of Phases	6
RMS	0.3
Number of Stations	4
Error in Latitude	>2.8 km
Error in Longitude	4.3 km
Error in Depth	8.2 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
91225	IIEES	YZKH	E	163.7	0.32	2013-12-17 08:37:08	2013-12-17 09:12:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	KRBR	Z	Pg	E		2013-12-17 08:36:32	-0.41	y		156	166
IIEES	YZKH	Z	Pn	E		2013-12-17 08:36:40	0.24	y		205	305
IIEES	TABS	Z	Pn	E		2013-12-17 08:36:47	0.16	y		265	15
IIEES	TABS	E	Sg	E		2013-12-17 08:37:20	-0.48	y		265	15
IIEES	BSRN	Z	Pn	E		2013-12-17 08:36:48	0.33	y		270	75
IIEES	BSRN	E	Sg	E		2013-12-17 08:37:22	0.17	y		270	75
