مشخصات زلزله

Magnitude	:3.2
Date & Time (UTC)	2012-12-03 15:02:10.6
Date & Time (Local)	1391/9/13  18:32:10.6
Location	Lat:32.81 Lon: 49.89
Region	Esfahan Province, 25 km South-West of Fereydunshahr
Nearest Cities
	5 km of Masir, Esfahan Province
	13 km North of Durak, Chaharmahal Bakhtiari Province
	18 km West of Sibak, Esfahan Province
	25 km South West of Fereydunshahr, Esfahan Province
	30 km South West of Afus, Esfahan Province
Depth	14 km
Agency

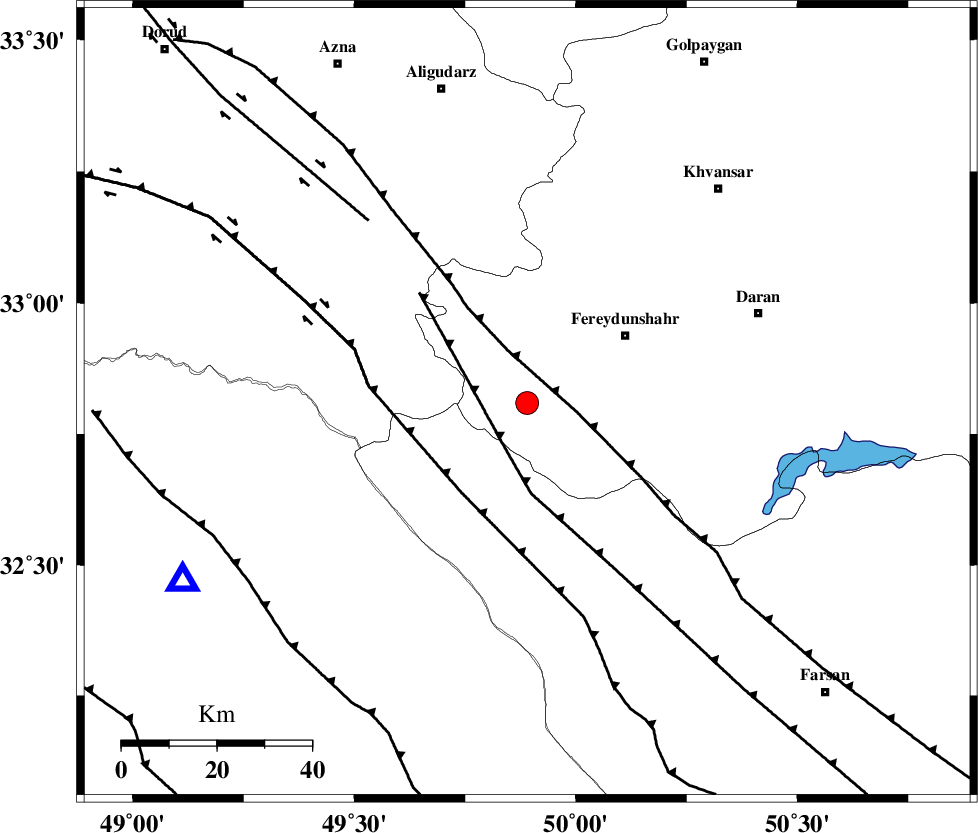

Faults within 150 km:
	MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 11 km
	ARDAL_F (Length: 170 km) , Distance to epicenter: 12 km
	ZARDKUH_F (Length: 139 km) , Distance to epicenter: 24 km
Number of Phases	4
RMS	0.1
Number of Stations	4
Error in Latitude	>4.3 km
Error in Longitude	8.6 km
Error in Depth	5.7 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
87250	IIEES	SHGR	N	1134.7	0.4	2012-12-03 15:02:50	2012-12-03 03:38:00	n
87251	IIEES	SHGR	E	455.6	0.6	2012-12-03 15:02:53	2012-12-03 03:38:00	n
87252	IIEES	GHVR	N	109.2	0.44	2012-12-03 15:03:20	2012-12-03 03:38:00	n
87253	IIEES	GHVR	E	110.1	0.48	2012-12-03 15:03:21	2012-12-03 03:38:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	KHMZ	Z	Pg	E		2012-12-03 15:02:28	-0.08	y		103	4
IIEES	SHGR	Z	Pg	E		2012-12-03 15:02:32	-0.01	y		129	233
IIEES	ASAO	Z	Pn	E		2012-12-03 15:02:42	0.11	y		193	4
IIEES	GHVR	Z	Pn	E		2012-12-03 15:02:46	-0.02	y		224	34
