مشخصات زلزله

Magnitude	:2.8
Date & Time (UTC)	2012-10-20 21:33:53.7
Date & Time (Local)	1391/7/30  01:03:53.7

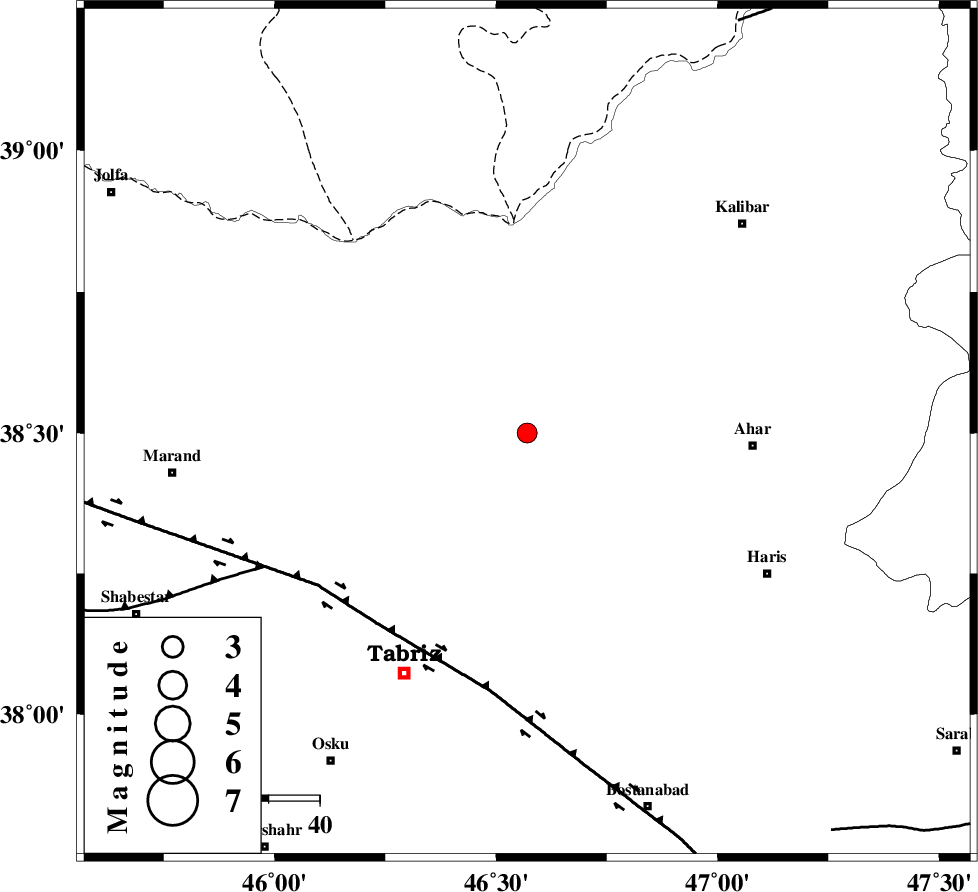

Location	Lat:38.5 Lon: 46.57
Region	Azarbaijan Sharghi Province, 44 km West of Ahar
Nearest Cities
	6 km North of Varzagan, Azarbaijan Sharghi Province
	7 km of Aqababafaramarzi, Azarbaijan Sharghi Province
	21 km South East of Joshin, Azarbaijan Sharghi Province
	22 km South West of Bekrabad, Azarbaijan Sharghi Province
	23 km North of Sarand, Azarbaijan Sharghi Province
Depth	14 km
Agency
Faults within 150 km:
	N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 48 km
	N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 58 km
	DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 91 km
Number of Phases	4
RMS	0.1
Number of Stations	3
Error in Latitude	>4.9 km
Error in Longitude	4.4 km
Error in Depth	11.4 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
86694	IIEES	GRMI	E	213	0.2	2012-10-20 21:34:30	2012-10-21 12:35:00	n
86695	IIEES	GRMI	N	231.3	0.44	2012-10-20 21:34:35	2012-10-21 12:35:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	GRMI	Z	Pg	E		2012-10-20 21:34:13	-0.1	y		120	73
IIEES	GRMI	N	Sg	E		2012-10-20 21:34:28	0.06	y		120	73
IIEES	MAKU	Z	Pn	E		2012-10-20 21:34:25	0.02	y		189	301
IIEES	ZNJK	Z	Pn	E		2012-10-20 21:34:35	0.02	y		276	137
