Magnitude |
:2.4 |
| Date & Time (UTC) | 2012-10-06 23:47:32.9 |
| Date & Time (Local) | 1391/7/16 03:17:32.9 |

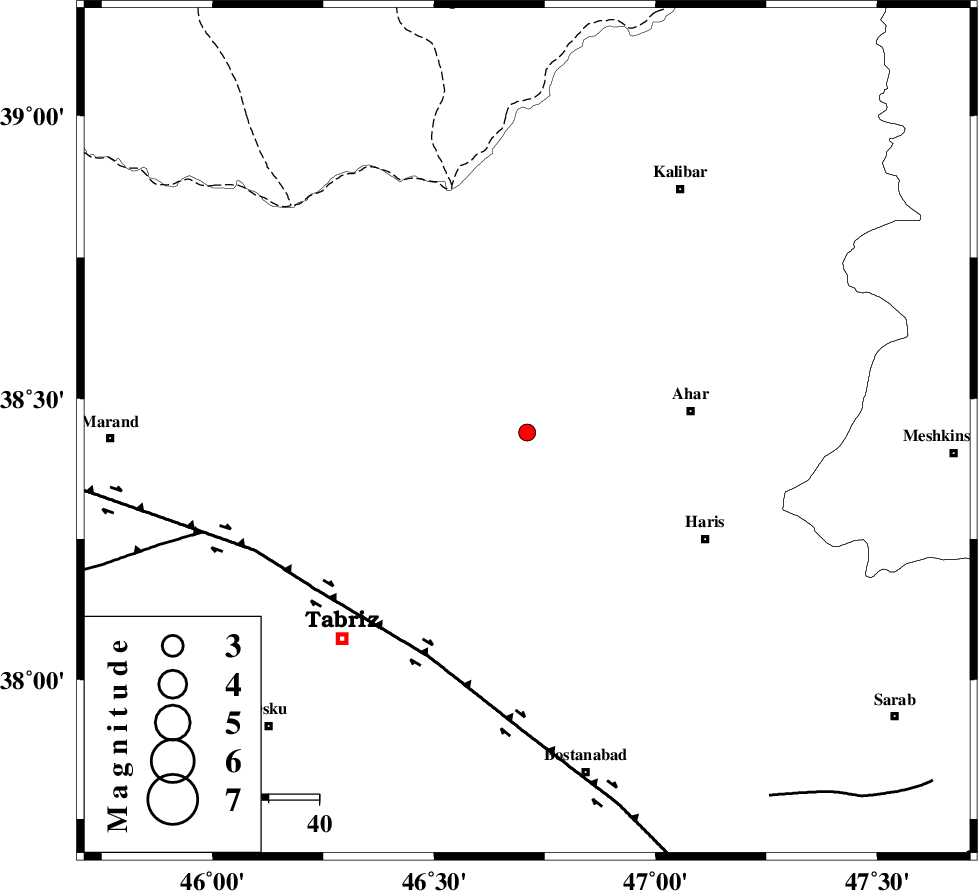

| Location | Lat:38.44 Lon: 46.71 |
| Region | Azarbaijan Sharghi Province, 33 km West of Ahar |
Nearest Cities |
|
| 8 km of Varzagan, Azarbaijan Sharghi Province | |
| 18 km South West of Tokhmdel, Azarbaijan Sharghi Province | |
| 18 km North of Sarand, Azarbaijan Sharghi Province | |
| 18 km South East of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 22 km South of Bekrabad, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 48 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 67 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 86 km | |
| Number of Phases | 4 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >5.6 km |
| Error in Longitude | 2.9 km |
| Error in Depth | 7.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 86426 | IIEES | GRMI | E | 97.8 | 0.28 | 2012-10-06 23:48:06 | 2012-10-07 04:14:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-10-06 23:47:51 | -0.01 | y | 111 | 68 | |||
| IIEES | MAKU | Z | Pn | E | 2012-10-06 23:48:06 | 0.16 | y | 203 | 301 | |||
| IIEES | MAKU | N | Sg | E | 2012-10-06 23:48:30 | -0.1 | y | 203 | 301 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-10-06 23:48:13 | -0.05 | y | 263 | 138 | |||
