مشخصات زلزله

Magnitude	:3.6
Date & Time (UTC)	2012-09-30 05:14:54.4
Date & Time (Local)	1391/7/9  08:44:54.4

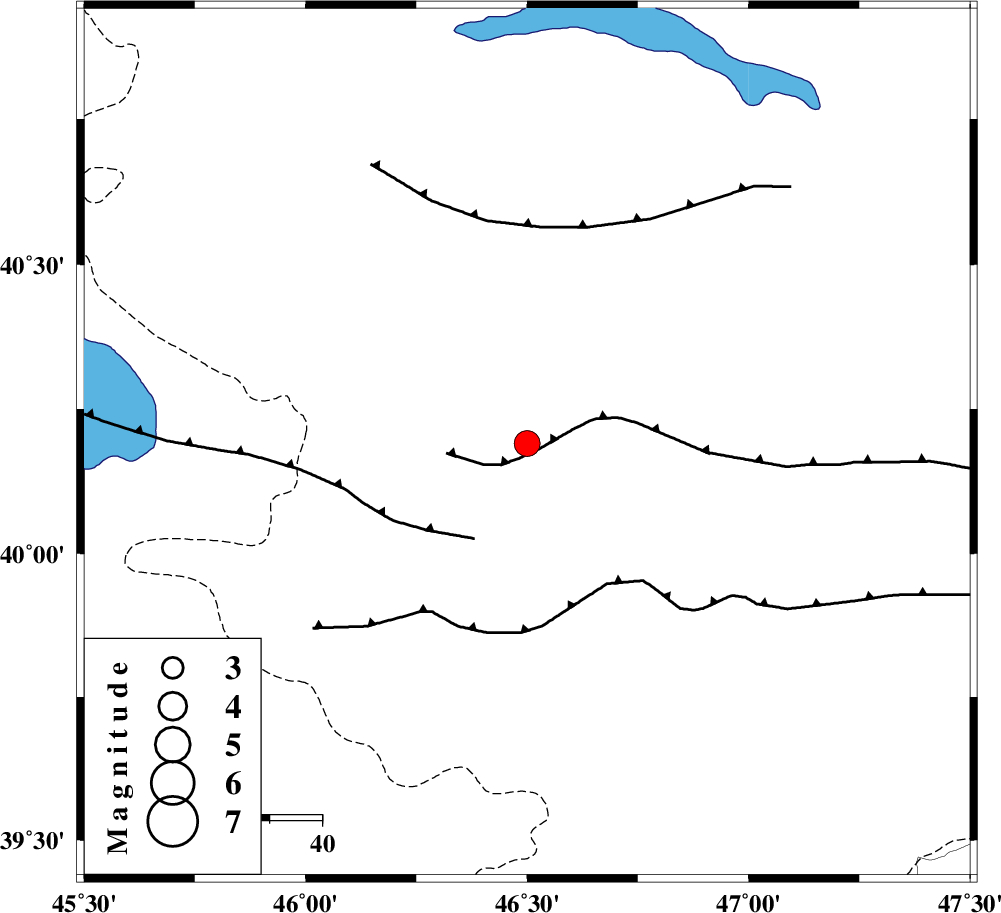

Location	Lat:40.19 Lon: 46.5
Region	Azerbaijan
Nearest Cities
	115 km North West of Larijan, Azarbaijan Sharghi Province
	116 km North West of Aslanduz, Ardebil Province
	123 km North West of Bastamlu, Azarbaijan Sharghi Province
	128 km North West of Khamarlu, Azarbaijan Sharghi Province
	133 km North West of Buran olia, Ardebil Province
Depth	14 km
Agency
Faults within 150 km:
	DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 117 km
Number of Phases	5
RMS	0.2
Number of Stations	3
Error in Latitude	>7.4 km
Error in Longitude	2.8 km
Error in Depth	8 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
86354	IIEES	MAKU	E	687.8	0.28	2012-09-30 05:15:47	2012-09-30 05:36:00	n
86355	IIEES	MAKU	N	601.8	0.2	2012-09-30 05:15:48	2012-09-30 05:36:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	MAKU	Z	Pg	E		2012-09-30 05:15:24	-0.04	y		181	240
IIEES	MAKU	E	Sg	E		2012-09-30 05:15:46	0.01	y		181	240
IIEES	GRMI	Z	Pg	E		2012-09-30 05:15:26	-0.28	y		194	141
IIEES	GRMI	N	Sg	E		2012-09-30 05:15:49	0.03	y		194	141
IIEES	ZNJK	Z	Pn	E		2012-09-30 05:15:56	0.38	y		434	153
