مشخصات زلزله

Magnitude	:3.2
Date & Time (UTC)	2012-09-17 21:19:34.1
Date & Time (Local)	1391/6/28  01:49:34.1

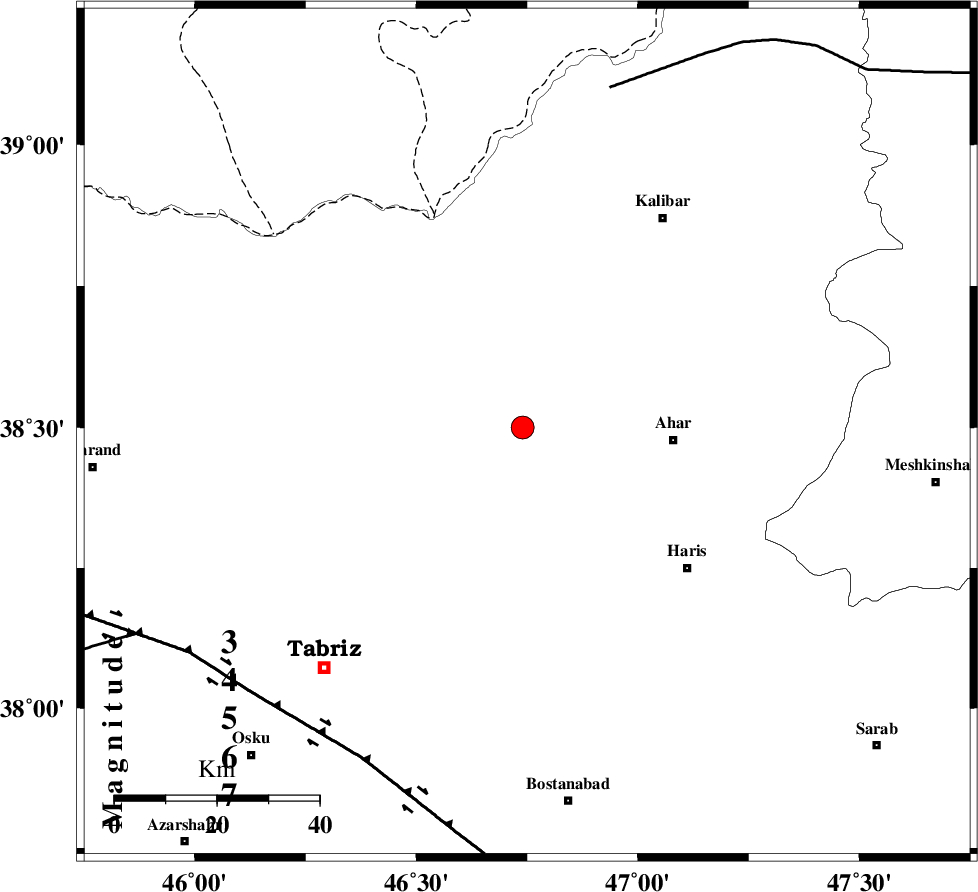

Location	Lat:38.49 Lon: 46.75
Region	Azarbaijan Sharghi Province, 29 km West of Ahar
Nearest Cities
	10 km North East of Varzagan, Azarbaijan Sharghi Province
	11 km of Tokhmdel, Azarbaijan Sharghi Province
	15 km South of Bekrabad, Azarbaijan Sharghi Province
	17 km East of Aqababafaramarzi, Azarbaijan Sharghi Province
	20 km West of Azghan, Azarbaijan Sharghi Province
Depth	14 km
Agency
Faults within 150 km:
	N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 55 km
	N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 72 km
	DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 86 km
Number of Phases	5
RMS	0.2
Number of Stations	3
Error in Latitude	>6.4 km
Error in Longitude	2.5 km
Error in Depth	9.8 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
86180	IIEES	GRMI	E	701.7	0.2	2012-09-17 21:20:06	2012-09-18 12:09:00	n
86181	IIEES	GRMI	N	637.4	0.16	2012-09-17 21:20:07	2012-09-18 12:09:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	GRMI	Z	Pg	E		2012-09-17 21:19:52	-0.01	y		106	70
IIEES	GRMI	N	Sg	E		2012-09-17 21:20:05	0.03	y		106	70
IIEES	MAKU	Z	Pn	E		2012-09-17 21:20:07	0.38	y		203	299
IIEES	MAKU	E	Sg	E		2012-09-17 21:20:31	-0.23	y		203	299
IIEES	ZNJK	Z	Pn	E		2012-09-17 21:20:14	-0.17	y		265	139
