مشخصات زلزله

Magnitude	:4.1
Date & Time (UTC)	2012-09-17 07:05:48.0
Date & Time (Local)	1391/6/27  11:35:48.0

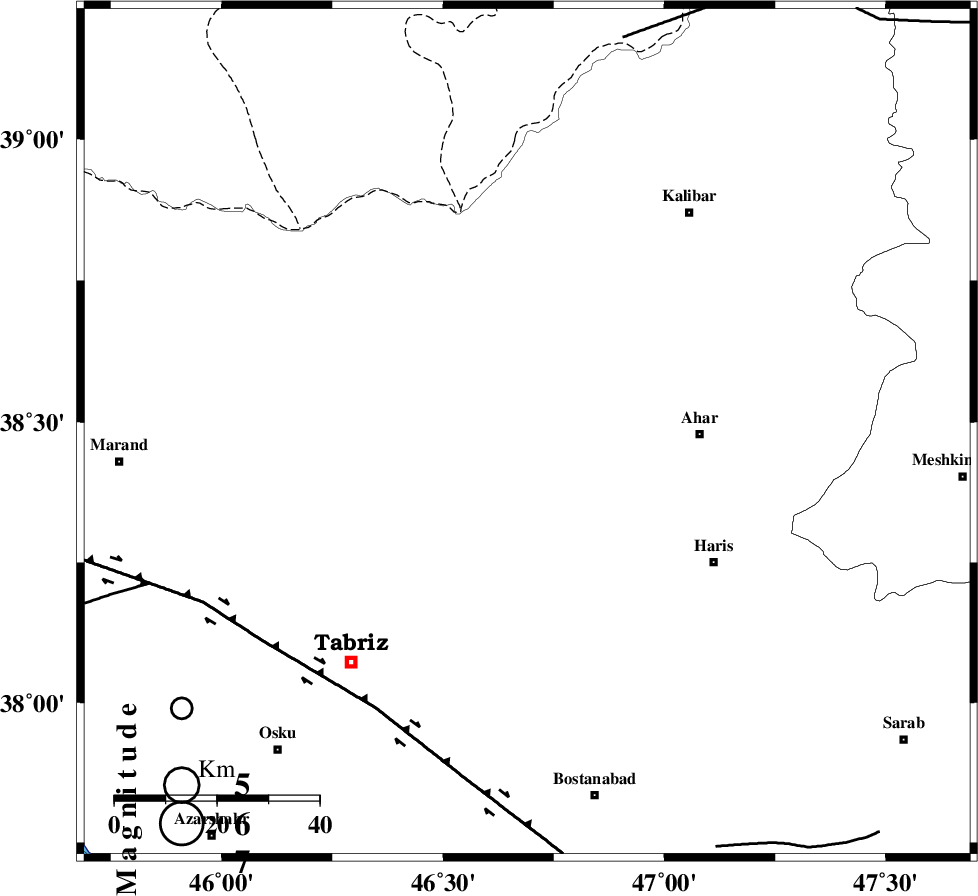

Location	Lat:38.48 Lon: 46.69
Region	Azarbaijan Sharghi Province, 34 km West of Ahar
Nearest Cities
	5 km of Varzagan, Azarbaijan Sharghi Province
	14 km East of Aqababafaramarzi, Azarbaijan Sharghi Province
	16 km West of Tokhmdel, Azarbaijan Sharghi Province
	18 km South of Bekrabad, Azarbaijan Sharghi Province
	22 km North of Sarand, Azarbaijan Sharghi Province
Depth	18 km
Agency
Faults within 150 km:
	N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 52 km
	N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 67 km
	DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 89 km
Number of Phases	4
RMS	0.1
Number of Stations	3
Error in Latitude	>5 km
Error in Longitude	2.6 km
Error in Depth	5.8 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
86158	IIEES	GRMI	N	5847.2	0.44	2012-09-17 07:06:24	2012-09-17 07:16:00	n
86159	IIEES	GRMI	E	4971.2	0.28	2012-09-17 07:06:24	2012-09-17 07:16:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	GRMI	Z	Pg	E		2012-09-17 07:06:06	0.01	y		111	71
IIEES	MAKU	Z	Pn	E		2012-09-17 07:06:20	-0.09	y		199	300
IIEES	MAKU	N	Sg	E		2012-09-17 07:06:44	0.05	y		199	300
IIEES	ZNJK	Z	Pn	E		2012-09-17 07:06:28	0.03	y		267	138
