مشخصات زلزله

Magnitude	:3.4
Date & Time (UTC)	2012-09-13 20:26:08.4
Date & Time (Local)	1391/6/24  00:56:08.4

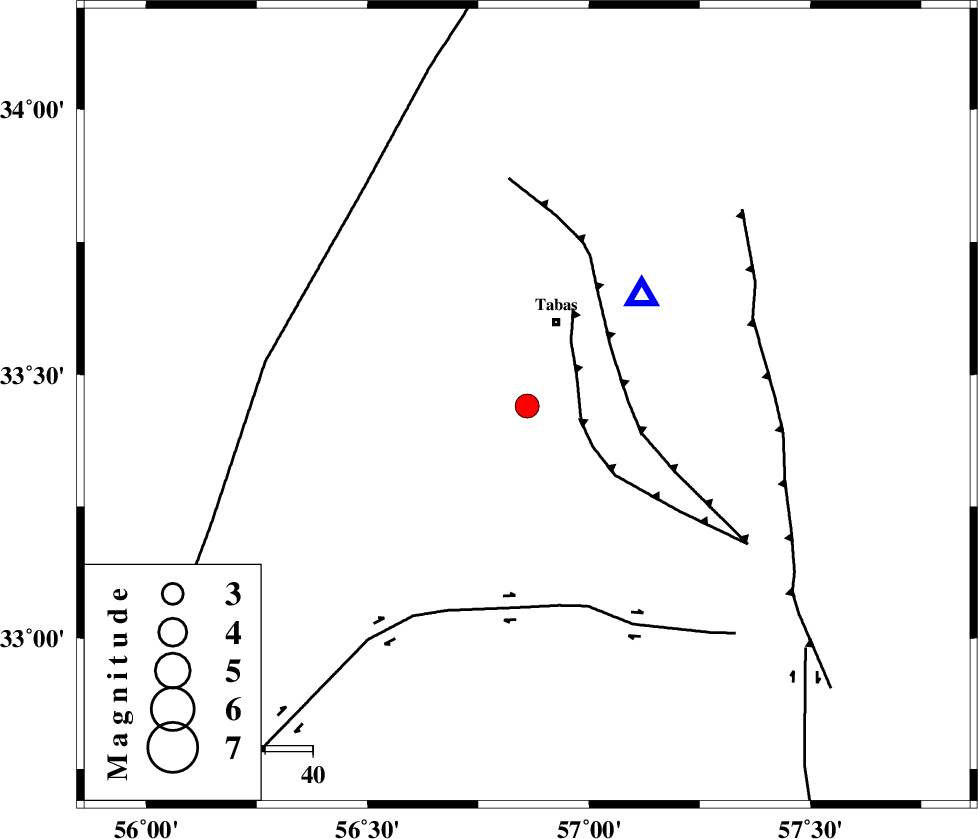

Location	Lat:33.44 Lon: 56.86
Region	Yazd Province, 19 km South of Tabas
Nearest Cities
	7 km of Kerit, Yazd Province
	14 km South of Oshtoqran, Yazd Province
	19 km South of Tabas, Yazd Province
	32 km South of Jokhvah, Yazd Province
	56 km South West of Reqqeh, Khorasan(center) Province
Depth	14 km
Agency
Faults within 150 km:
	TABAS_F2 (Length: 67 km) , Distance to epicenter: 12 km
	TABAS_F1 (Length: 91 km) , Distance to epicenter: 21 km
	CHESHMEH_ROSTAM_ (Length: 142 km) , Distance to epicenter: 43 km
Number of Phases	6
RMS	0.4
Number of Stations	5
Error in Latitude	>3.5 km
Error in Longitude	4.6 km
Error in Depth	9.3 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
86117	IIEES	TABS	N	2865.1	0.6	2012-09-13 20:26:29	2012-09-13 09:03:00	n
86118	IIEES	YZKH	N	200.4	0.32	2012-09-13 20:27:22	2012-09-13 09:03:00	n
86119	IIEES	YZKH	E	212.7	0.44	2012-09-13 20:27:22	2012-09-13 09:03:00	n
86120	IIEES	SHRO	E	72.5	0.48	2012-09-13 20:27:44	2012-09-13 09:03:00	n
86121	IIEES	SHRO	N	104	0.6	2012-09-13 20:27:50	2012-09-13 09:03:00	n
86122	IIEES	KRBR	N	240.4	0.6	2012-09-13 20:28:02	2012-09-13 09:03:00	n
86123	IIEES	KRBR	E	213.7	0.52	2012-09-13 20:28:03	2012-09-13 09:03:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	TABS	Z	Pg	E		2012-09-13 20:26:14	-0.64	y		33.9	46
IIEES	YZKH	Z	Pg	E		2012-09-13 20:26:48	0.06	y		242	242
IIEES	YZKH	N	Sg	E		2012-09-13 20:27:16	-0.2	y		242	242
IIEES	SHRO	Z	Pn	E		2012-09-13 20:26:53	0.5	y		296	345
IIEES	SHRO	N	Sg	E		2012-09-13 20:27:31	-0.04	y		296	345
IIEES	SHRT	Z	Pn	E		2012-09-13 20:26:56	0.4	y		320	85
