مشخصات زلزله

Magnitude	:2.8
Date & Time (UTC)	2012-09-12 12:59:25.0
Date & Time (Local)	1391/6/22  17:29:25.0

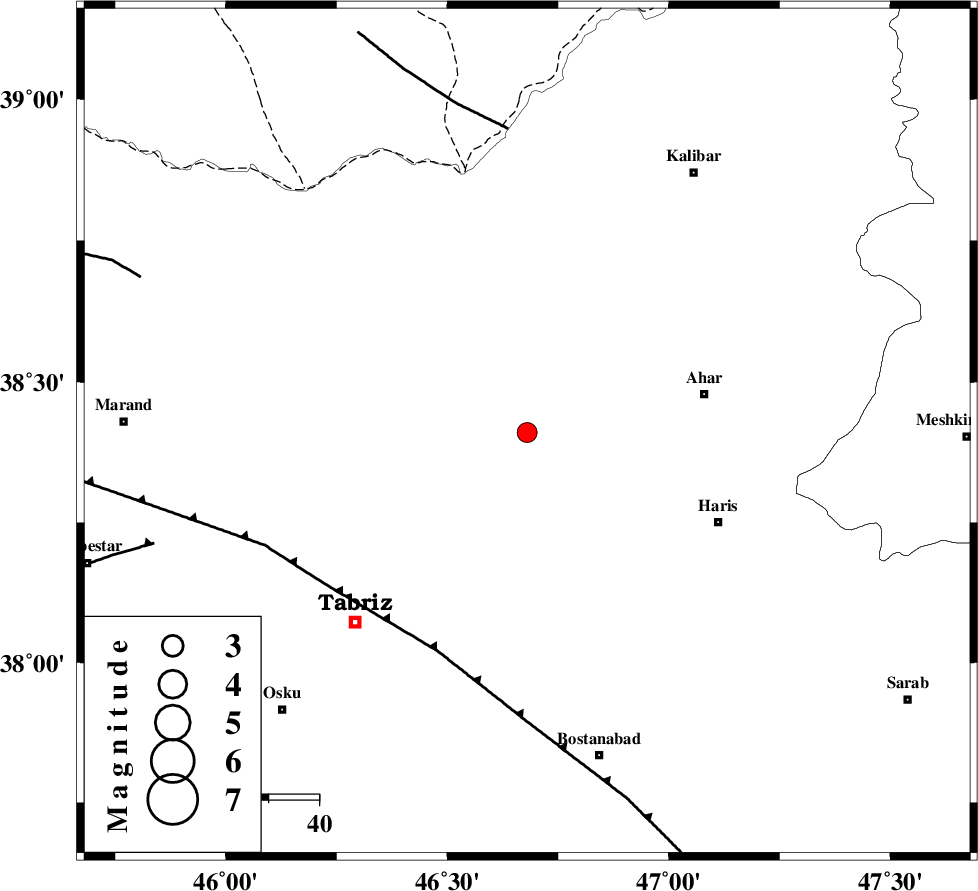

Location	Lat:38.41 Lon: 46.68
Region	Azarbaijan Sharghi Province, 36 km West of Ahar
Nearest Cities
	9 km of Varzagan, Azarbaijan Sharghi Province
	14 km North of Sarand, Azarbaijan Sharghi Province
	19 km South East of Aqababafaramarzi, Azarbaijan Sharghi Province
	22 km South West of Tokhmdel, Azarbaijan Sharghi Province
	25 km North West of Bilverdi, Azarbaijan Sharghi Province
Depth	18 km
Agency
Faults within 150 km:
	N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 44 km
	N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 63 km
	BOZQUSH (Length: 70 km) , Distance to epicenter: 85 km
Number of Phases	6
RMS	0
Number of Stations	4
Error in Latitude	>2.5 km
Error in Longitude	1.2 km
Error in Depth	4.4 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
86102	IIEES	GRMI	E	241	0.28	2012-09-12 13:00:02	2012-09-12 09:35:00	n
86103	IIEES	GRMI	N	203.8	0.16	2012-09-12 13:00:04	2012-09-12 09:35:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	GRMI	Z	Pg	E		2012-09-12 12:59:44	-0.05	y		115	67
IIEES	GRMI	N	Sg	E		2012-09-12 12:59:58	0.02	y		115	67
IIEES	MAKU	Z	Pn	E		2012-09-12 12:59:57	-0.03	y		202	302
IIEES	MAKU	N	Sg	E		2012-09-12 13:00:22	0.02	y		202	302
IIEES	ZNJK	Z	Pn	E		2012-09-12 13:00:05	0.06	y		262	137
IIEES	SNGE	Z	P	E		2012-09-12 13:00:18	-0.04	y		373	171
