مشخصات زلزله

Magnitude	:2.9
Date & Time (UTC)	2012-08-23 01:10:32.5
Date & Time (Local)	1391/6/2  05:40:32.5

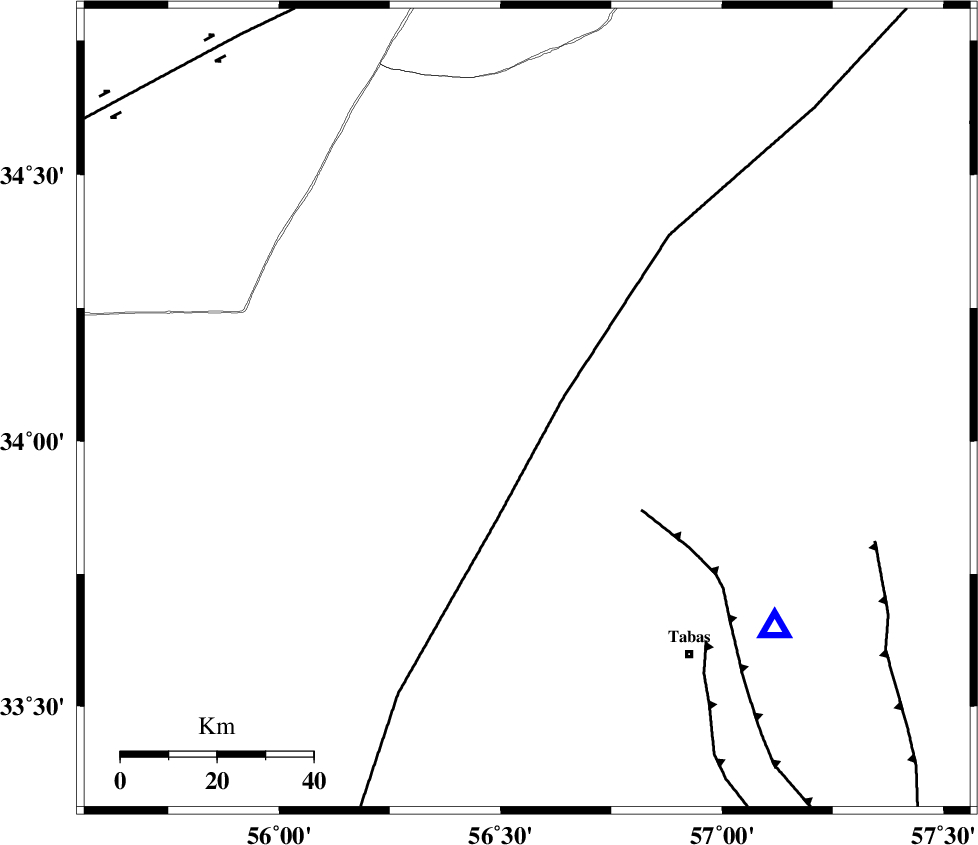

Location	Lat:34.06 Lon: 56.56
Region	Yazd Province, 61 km North-West of Tabas
Nearest Cities
	28 km North East of Halvan, Yazd Province
	43 km North West of Jokhvah, Yazd Province
	47 km South West of Eshqabad, Yazd Province
	61 km North West of Tabas, Yazd Province
	64 km North East of Darin, Yazd Province
Depth	16 km
Agency
Faults within 150 km:
	NAINI_F (Length: 342 km) , Distance to epicenter: 8 km
	TABAS_F1 (Length: 91 km) , Distance to epicenter: 32 km
	TABAS_F2 (Length: 67 km) , Distance to epicenter: 61 km
Number of Phases	6
RMS	0.2
Number of Stations	3
Error in Latitude	>1.2 km
Error in Longitude	1.9 km
Error in Depth	4.2 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
85698	IIEES	SHRO	N	99.6	0.28	2012-08-23 01:11:37	2012-08-23 02:54:00	n
85699	IIEES	SHRO	E	67.6	0.2	2012-08-23 01:11:37	2012-08-23 02:54:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	TABS	Z	Pg	E		2012-08-23 01:10:44	-0.03	y		68.7	131
IIEES	TABS	E	Sg	E		2012-08-23 01:10:53	0.02	y		68.7	131
IIEES	SHRO	Z	Pn	E		2012-08-23 01:11:07	-0.24	y		222	347
IIEES	SHRO	N	Sg	E		2012-08-23 01:11:35	0.11	y		222	347
IIEES	YZKH	Z	Pn	E		2012-08-23 01:11:12	0.24	y		260	225
IIEES	YZKH	N	Sg	E		2012-08-23 01:11:46	-0.11	y		260	225
