مشخصات زلزله

Magnitude	:3.4
Date & Time (UTC)	2012-08-20 08:48:16.6
Date & Time (Local)	1391/5/30  13:18:16.6
Location	Lat:38.46 Lon: 46.69
Region	Azarbaijan Sharghi Province, 34 km West of Ahar
Nearest Cities
	6 km of Varzagan, Azarbaijan Sharghi Province
	15 km South East of Aqababafaramarzi, Azarbaijan Sharghi Province
	17 km South West of Tokhmdel, Azarbaijan Sharghi Province
	19 km North of Sarand, Azarbaijan Sharghi Province
	20 km South of Bekrabad, Azarbaijan Sharghi Province
Depth	16 km
Agency

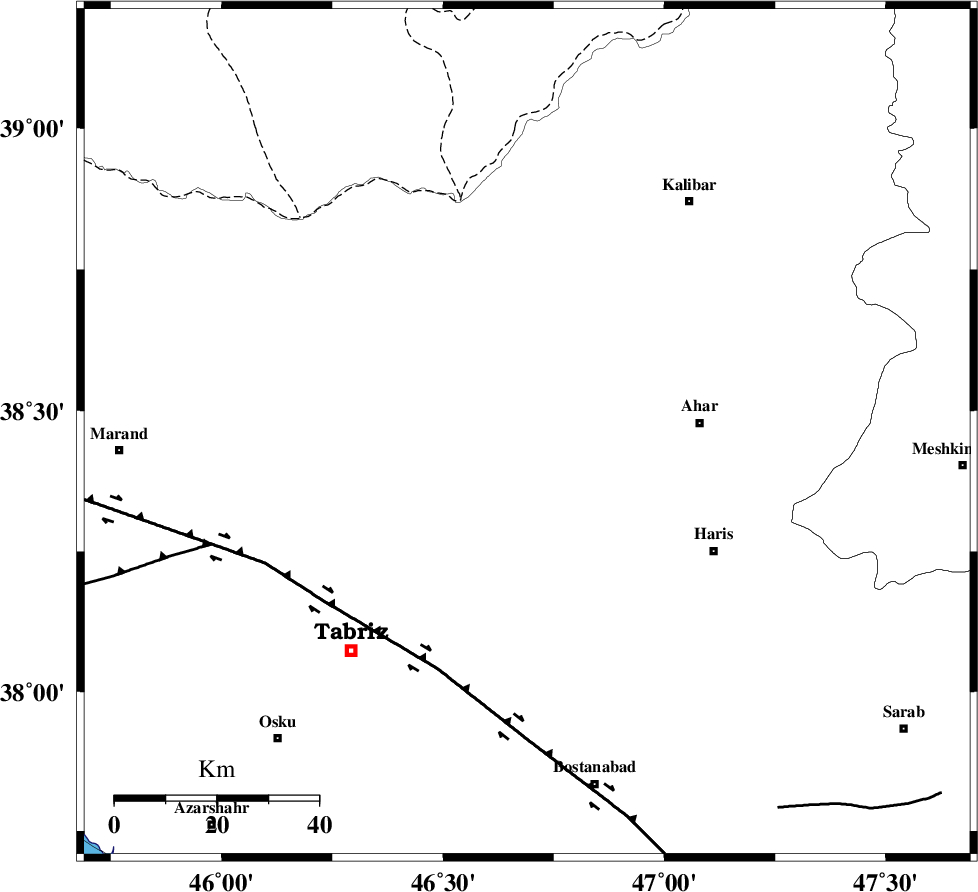

Faults within 150 km:
	N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 50 km
	N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 66 km
	BOZQUSH (Length: 70 km) , Distance to epicenter: 89 km
Number of Phases	4
RMS	0
Number of Stations	3
Error in Latitude	>4.7 km
Error in Longitude	2.4 km
Error in Depth	5.7 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
85622	IIEES	GRMI	E	1170.2	0.4	2012-08-20 08:48:50	2012-08-20 09:07:00	n
85623	IIEES	GRMI	N	705.9	0.16	2012-08-20 08:48:52	2012-08-20 09:07:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	GRMI	Z	Pg	E		2012-08-20 08:48:35	0	y		112	69
IIEES	MAKU	Z	Pn	E		2012-08-20 08:48:49	0	y		201	300
IIEES	MAKU	N	Sg	E		2012-08-20 08:49:13	0	y		201	300
IIEES	ZNJK	Z	Pn	E		2012-08-20 08:48:57	0	y		265	138
