مشخصات زلزله

Magnitude	:3.4
Date & Time (UTC)	2012-08-16 12:19:33.4
Date & Time (Local)	1391/5/26  16:49:33.4

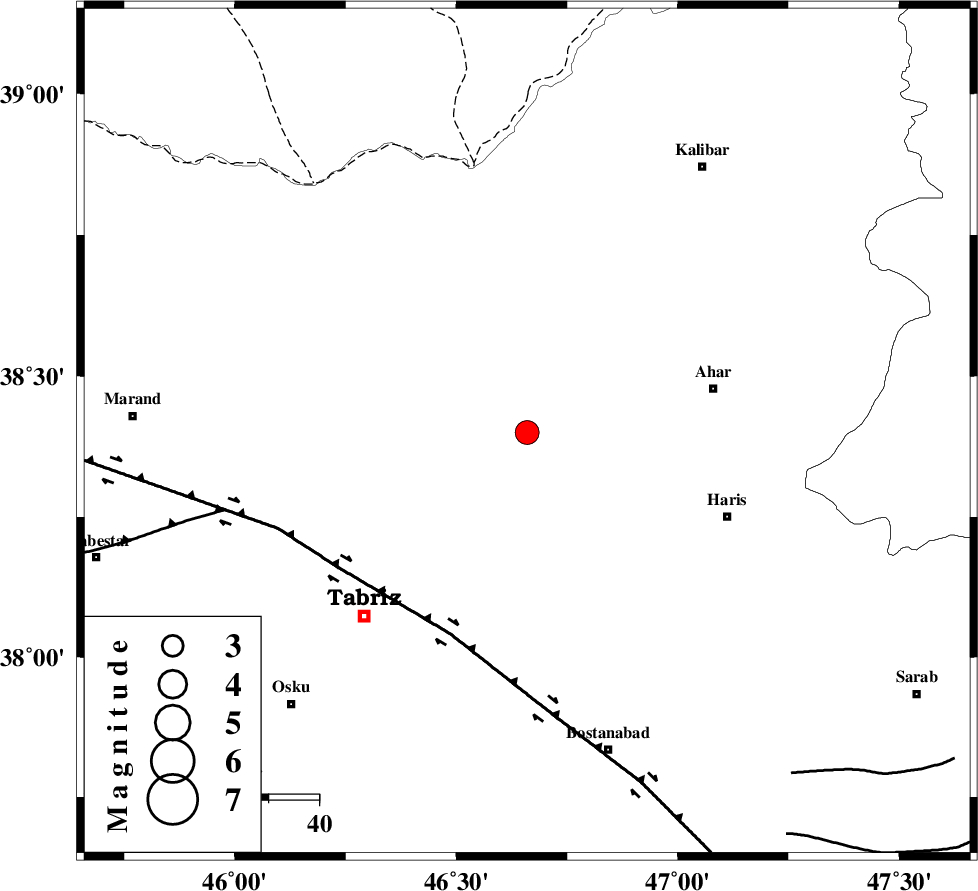

Location	Lat:38.4 Lon: 46.66
Region	Azarbaijan Sharghi Province, 38 km West of Ahar
Nearest Cities
	10 km of Varzagan, Azarbaijan Sharghi Province
	12 km North of Sarand, Azarbaijan Sharghi Province
	20 km South of Aqababafaramarzi, Azarbaijan Sharghi Province
	24 km South West of Tokhmdel, Azarbaijan Sharghi Province
	25 km North West of Bilverdi, Azarbaijan Sharghi Province
Depth	14 km
Agency
Faults within 150 km:
	N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 43 km
	N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 61 km
	BOZQUSH (Length: 70 km) , Distance to epicenter: 85 km
Number of Phases	5
RMS	0.1
Number of Stations	3
Error in Latitude	>4.7 km
Error in Longitude	1.9 km
Error in Depth	7.5 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
85428	IIEES	GRMI	E	899.8	0.16	2012-08-16 12:20:09	2012-08-16 12:29:00	n
85429	IIEES	GRMI	N	634.8	0.16	2012-08-16 12:20:09	2012-08-16 12:29:00	n
85430	IIEES	MAKU	N	405.1	0.28	2012-08-16 12:20:32	2012-08-16 12:29:00	n
85431	IIEES	MAKU	E	310.4	0.32	2012-08-16 12:20:36	2012-08-16 12:29:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	GRMI	Z	Pg	E		2012-08-16 12:19:53	0.07	y		117	67
IIEES	GRMI	N	Sg	E		2012-08-16 12:20:07	-0.02	y		117	67
IIEES	MAKU	Z	Pn	E		2012-08-16 12:20:06	0.23	y		202	302
IIEES	MAKU	N	Sg	E		2012-08-16 12:20:30	-0.15	y		202	302
IIEES	ZNJK	Z	Pn	E		2012-08-16 12:20:13	-0.13	y		262	136
