مشخصات زلزله

Magnitude	:5.2
Date & Time (UTC)	2012-08-14 14:02:25.7
Date & Time (Local)	1391/5/24  18:32:25.7
Location	Lat:38.46 Lon: 46.76
Region	Azarbaijan Sharghi Province, 28 km West of Ahar
Nearest Cities
	11 km East of Varzagan, Azarbaijan Sharghi Province
	14 km South of Tokhmdel, Azarbaijan Sharghi Province
	19 km South of Bekrabad, Azarbaijan Sharghi Province
	20 km South East of Aqababafaramarzi, Azarbaijan Sharghi Province
	21 km South West of Azghan, Azarbaijan Sharghi Province
Depth	14 km
Agency

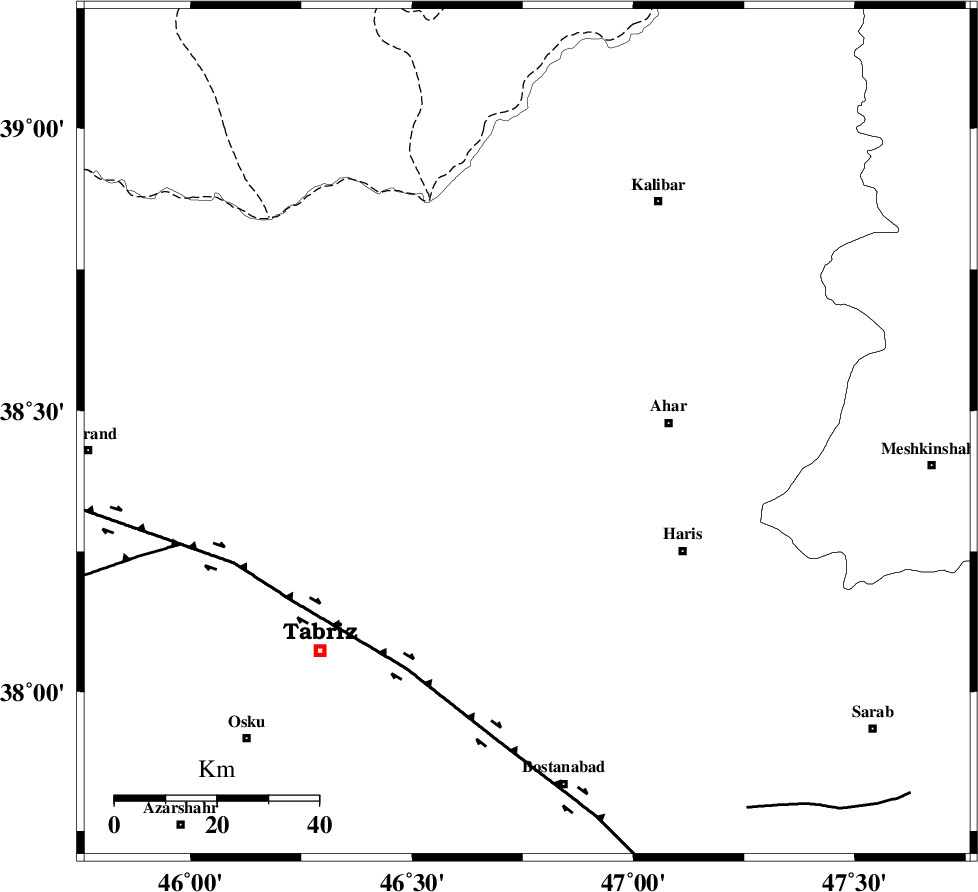

Faults within 150 km:
	N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 52 km
	N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 72 km
	BOZQUSH (Length: 70 km) , Distance to epicenter: 86 km
Number of Phases	4
RMS	0
Number of Stations	4
Error in Latitude	>4.7 km
Error in Longitude	2.4 km
Error in Depth	6 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
85330	IIEES	MAKU	N	17412	0.56	2012-08-14 14:03:26	2012-08-14 02:14:00	n
85331	IIEES	BJRD	E	179.9	0.64	2012-08-14 14:06:13	2012-08-14 02:14:00	n
85332	IIEES	BJRD	N	147.5	0.64	2012-08-14 14:06:13	2012-08-14 02:14:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	GRMI	Z	Pg	E		2012-08-14 14:02:43	-0.01	y		106	68
IIEES	MAKU	Z	Pn	E		2012-08-14 14:02:59	0.07	y		206	299
IIEES	MAKU	E	Sg	E		2012-08-14 14:03:24	-0.04	y		206	299
IIEES	ZNJK	Z	Pn	E		2012-08-14 14:03:06	-0.02	y		261	139
