مشخصات زلزله

Magnitude	:3
Date & Time (UTC)	2012-08-12 13:35:12.8
Date & Time (Local)	1391/5/22  18:05:12.8

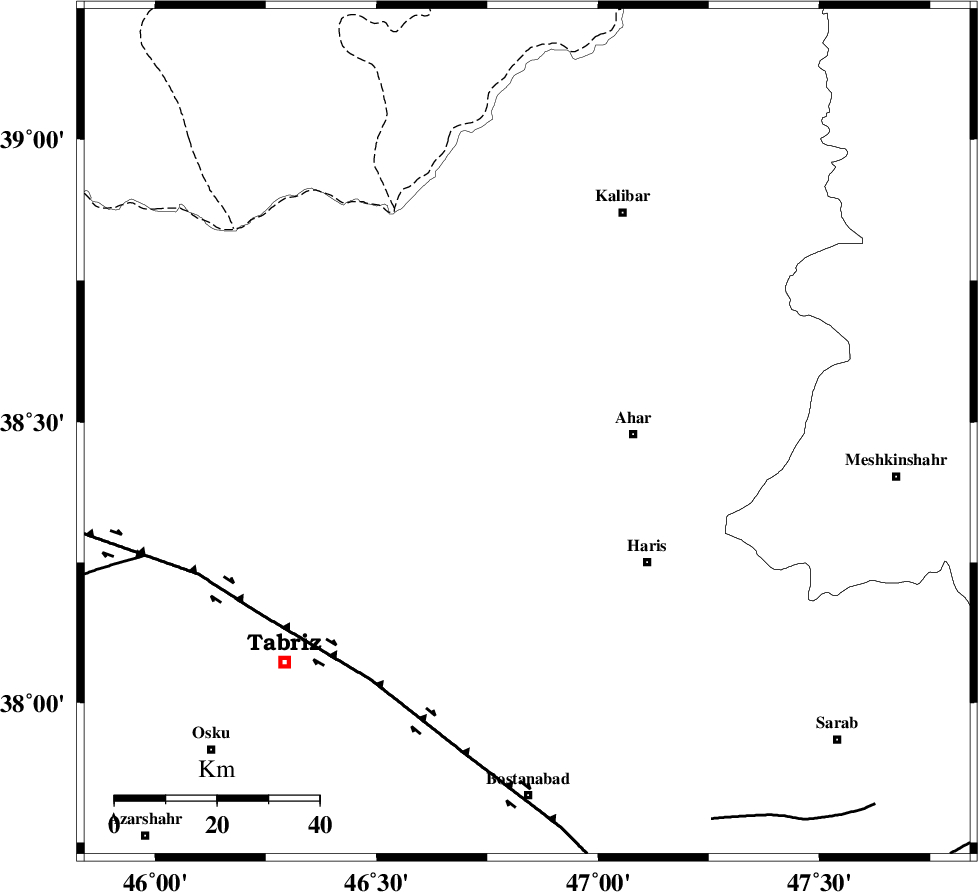

Location	Lat:38.48 Lon: 46.84
Region	Azarbaijan Sharghi Province, 21 km West of Ahar
Nearest Cities
	11 km of Tokhmdel, Azarbaijan Sharghi Province
	14 km South West of Azghan, Azarbaijan Sharghi Province
	17 km North West of Khuniq, Azarbaijan Sharghi Province
	18 km South of Bekrabad, Azarbaijan Sharghi Province
	18 km East of Varzagan, Azarbaijan Sharghi Province
Depth	14 km
Agency
Faults within 150 km:
	N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 58 km
	N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 79 km
	BOZQUSH (Length: 70 km) , Distance to epicenter: 85 km
Number of Phases	4
RMS	0.1
Number of Stations	3
Error in Latitude	>5 km
Error in Longitude	2.5 km
Error in Depth	6.5 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
85139	IIEES	MAKU	E	113.9	0.36	2012-08-12 13:36:14	2012-08-12 01:51:00	n
85140	IIEES	MAKU	N	145.9	0.4	2012-08-12 13:36:14	2012-08-12 01:51:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	GRMI	Z	Pg	E		2012-08-12 13:35:29	-0.01	y		98.7	68
IIEES	MAKU	Z	Pn	E		2012-08-12 13:35:47	0.13	y		211	298
IIEES	MAKU	E	Sg	E		2012-08-12 13:36:12	-0.08	y		211	298
IIEES	ZNJK	Z	Pn	E		2012-08-12 13:35:52	-0.04	y		258	140
