Magnitude |
:2.2 |
| Date & Time (UTC) | 2012-08-12 04:18:26.1 |
| Date & Time (Local) | 1391/5/22 08:48:26.1 |

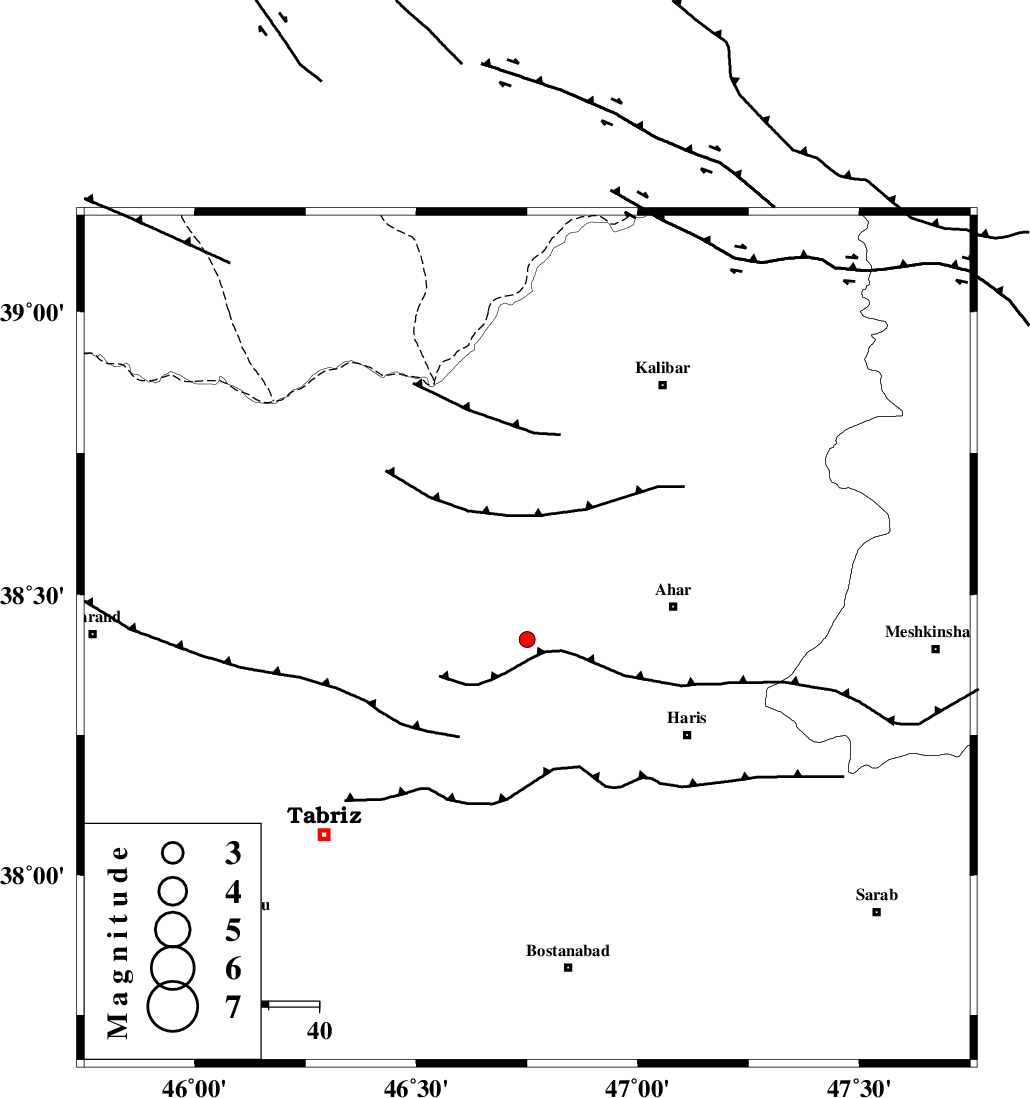

| Location | Lat:38.42 Lon: 46.75 |
| Region | Azarbaijan Sharghi Province, 29 km West of Ahar |
Nearest Cities |
|
| 12 km East of Varzagan, Azarbaijan Sharghi Province | |
| 18 km North East of Sarand, Azarbaijan Sharghi Province | |
| 18 km South of Tokhmdel, Azarbaijan Sharghi Province | |
| 21 km North West of Nikcheh, Azarbaijan Sharghi Province | |
| 22 km South East of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 48 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 70 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 83 km | |
| Number of Phases | 4 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >5.9 km |
| Error in Longitude | 3 km |
| Error in Depth | 7.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 85069 | IIEES | GRMI | E | 69 | 0.11 | 2012-08-12 04:19:00 | 2012-08-12 04:26:00 | n |
| 85070 | IIEES | GRMI | N | 57.4 | 0.15 | 2012-08-12 04:19:03 | 2012-08-12 04:26:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-08-12 04:18:44 | -0.02 | y | 109 | 66 | |||
| IIEES | MAKU | Z | Pn | E | 2012-08-12 04:18:59 | 0.19 | y | 207 | 301 | |||
| IIEES | MAKU | E | Sg | E | 2012-08-12 04:19:24 | -0.12 | y | 207 | 301 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-08-12 04:19:06 | -0.06 | y | 259 | 138 | |||
