مشخصات زلزله

Magnitude	:4
Date & Time (UTC)	2012-08-11 23:00:16.9
Date & Time (Local)	1391/5/22  03:30:16.9

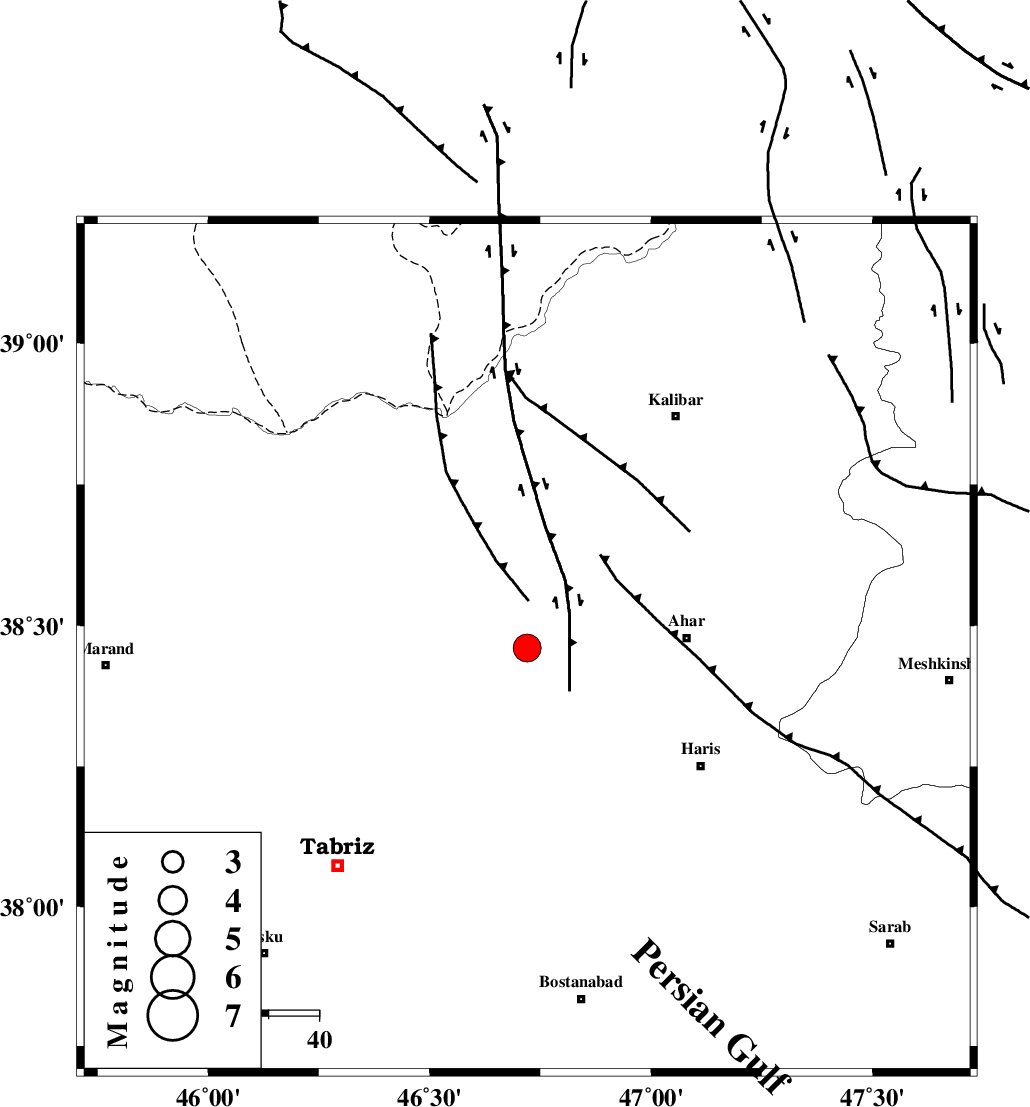

Location	Lat:38.46 Lon: 46.72
Region	Azarbaijan Sharghi Province, 32 km West of Ahar
Nearest Cities
	8 km of Varzagan, Azarbaijan Sharghi Province
	16 km South of Tokhmdel, Azarbaijan Sharghi Province
	17 km South East of Aqababafaramarzi, Azarbaijan Sharghi Province
	19 km South of Bekrabad, Azarbaijan Sharghi Province
	20 km North East of Sarand, Azarbaijan Sharghi Province
Depth	22 km
Agency
Faults within 150 km:
	N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 51 km
	N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 68 km
	BOZQUSH (Length: 70 km) , Distance to epicenter: 88 km
Number of Phases	4
RMS	0
Number of Stations	3
Error in Latitude	>4.8 km
Error in Longitude	4.6 km
Error in Depth	11.6 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
85026	IIEES	GRMI	E	4301.7	0.28	2012-08-11 23:00:49	2012-08-11 11:18:00	n
85027	IIEES	GRMI	N	3235.8	0.28	2012-08-11 23:00:51	2012-08-11 11:18:00	n
85028	IIEES	MAKU	N	1429.7	0.88	2012-08-11 23:01:15	2012-08-11 11:18:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	GRMI	Z	Pg	E		2012-08-11 23:00:35	0	y		110	69
IIEES	GRMI	N	Sg	E		2012-08-11 23:00:48	0	y		110	69
IIEES	MAKU	Z	Pn	E		2012-08-11 23:00:49	0	y		203	300
IIEES	ZNJK	Z	Pn	E		2012-08-11 23:00:56	0	y		264	138
