مشخصات زلزله

Magnitude	:3.4
Date & Time (UTC)	2012-08-11 22:04:32.6
Date & Time (Local)	1391/5/22  02:34:32.6

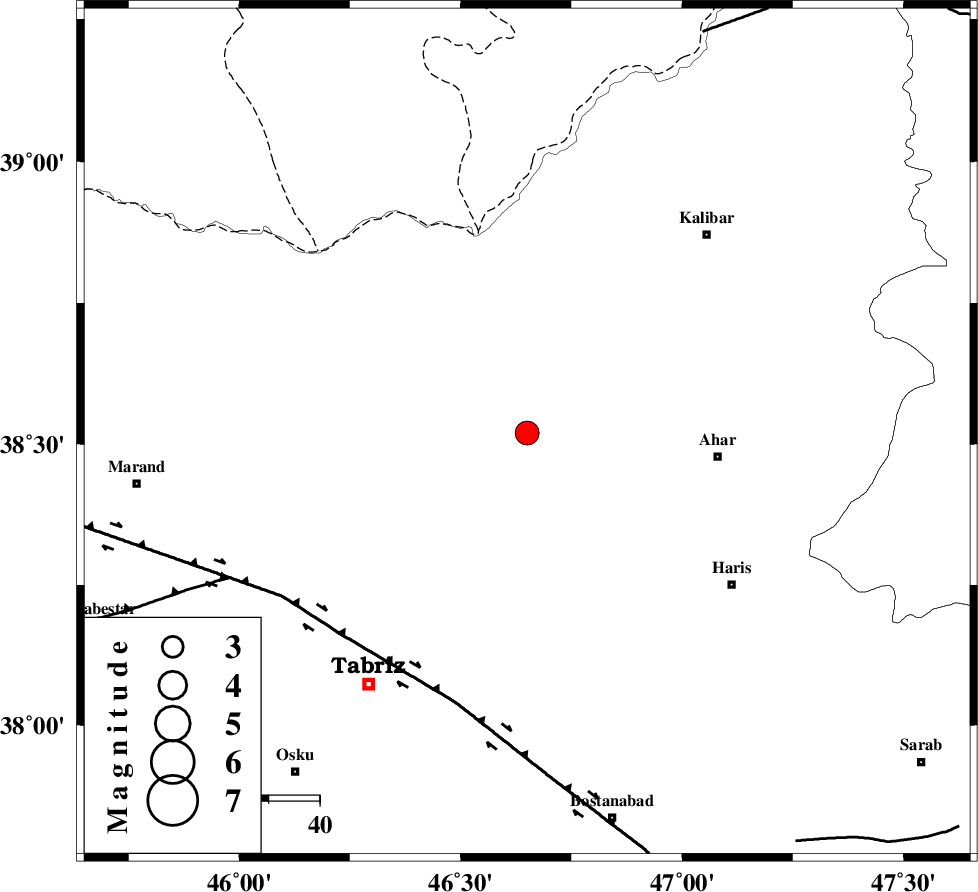

Location	Lat:38.52 Lon: 46.65
Region	Azarbaijan Sharghi Province, 38 km West of Ahar
Nearest Cities
	4 km North of Varzagan, Azarbaijan Sharghi Province
	8 km of Aqababafaramarzi, Azarbaijan Sharghi Province
	16 km South West of Bekrabad, Azarbaijan Sharghi Province
	16 km West of Tokhmdel, Azarbaijan Sharghi Province
	24 km South East of Joshin, Azarbaijan Sharghi Province
Depth	14 km
Agency
Faults within 150 km:
	N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 54 km
	N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 65 km
	DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 86 km
Number of Phases	4
RMS	0
Number of Stations	3
Error in Latitude	>4.6 km
Error in Longitude	4.2 km
Error in Depth	10.9 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
85015	IIEES	MAKU	E	314.3	0.36	2012-08-11 22:05:30	2012-08-11 10:45:00	n
85016	IIEES	MAKU	N	449.6	0.36	2012-08-11 22:05:31	2012-08-11 10:45:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	GRMI	Z	Pg	E		2012-08-11 22:04:51	-0.06	y		113	73
IIEES	GRMI	E	Sg	E		2012-08-11 22:05:05	0.03	y		113	73
IIEES	MAKU	Z	Pn	E		2012-08-11 22:05:04	0.01	y		194	299
IIEES	ZNJK	Z	Pn	E		2012-08-11 22:05:14	0.01	y		273	138
