مشخصات زلزله

Magnitude	:2.6
Date & Time (UTC)	2012-08-09 18:01:48.8
Date & Time (Local)	1391/5/19  22:31:48.8
Location	Lat:31.19 Lon: 56.31
Region	Kerman Province, 49 km West of Ravar
Nearest Cities
	11 km North West of Toghroljerd, Kerman Province
	19 km South of Jor, Kerman Province
	25 km South of Kuhbanan, Kerman Province
	28 km North West of Dasht-e khak, Kerman Province
	36 km North West of Ahmadi, Kerman Province
Depth	14 km
Agency

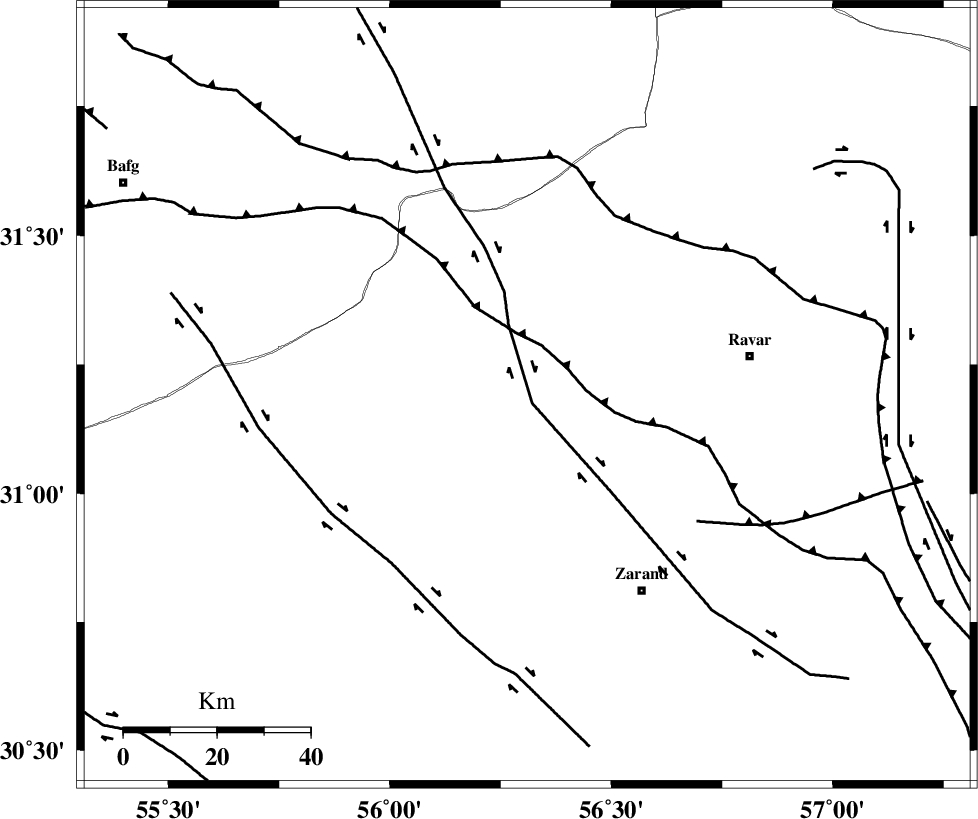

Faults within 150 km:
	KUHBANAN_F (Length: 189 km) , Distance to epicenter: 2 km
	DARIVAN_F (Length: 131 km) , Distance to epicenter: 47 km
	JAFARABAD_F (Length: 60 km) , Distance to epicenter: 58 km
Number of Phases	4
RMS	0.2
Number of Stations	3
Error in Latitude	>5.1 km
Error in Longitude	6.7 km
Error in Depth	9.5 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
84857	IIEES	KRBR	E	105.3	0.24	2012-08-09 18:02:38	2012-08-09 06:16:00	n
84858	IIEES	YZKH	E	81.9	0.32	2012-08-09 18:02:51	2012-08-09 06:16:00	n
84859	IIEES	YZKH	N	77	0.6	2012-08-09 18:02:52	2012-08-09 06:16:00	n
84860	IIEES	TABS	N	17.4	0.56	2012-08-09 18:03:17	2012-08-09 06:16:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	KRBR	Z	Pg	E		2012-08-09 18:02:12	-0.1	y		140	162
IIEES	YZKH	Z	Pn	E		2012-08-09 18:02:23	0.39	y		210	310
IIEES	YZKH	E	Sg	E		2012-08-09 18:02:48	-0.21	y		210	310
IIEES	TABS	Z	Pn	E		2012-08-09 18:02:31	-0.08	y		283	15
