مشخصات زلزله

Magnitude	:2.4
Date & Time (UTC)	2012-07-23 12:53:02.2
Date & Time (Local)	1391/5/2  17:23:02.2

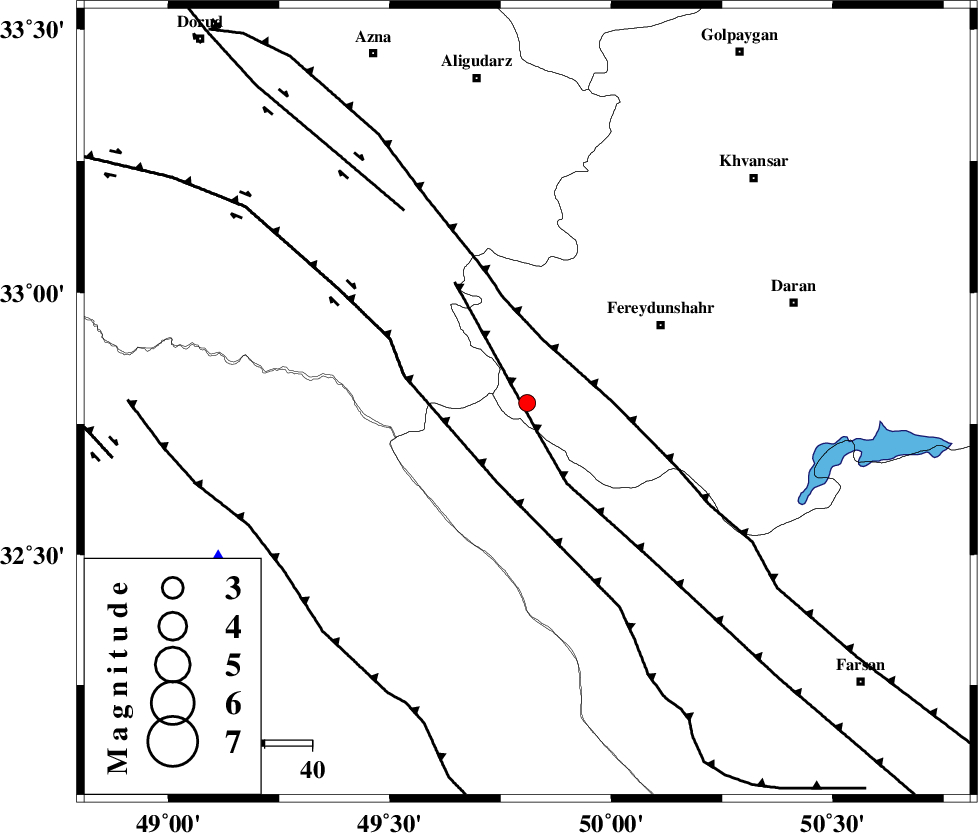

Location	Lat:32.79 Lon: 49.81
Region	Esfahan Province, 33 km South-West of Fereydunshahr
Nearest Cities
	8 km of Masir, Esfahan Province
	12 km North of Durak, Chaharmahal Bakhtiari Province
	26 km West of Sibak, Esfahan Province
	33 km South West of Fereydunshahr, Esfahan Province
	33 km South of Farsesh, Lorestan Province
Depth	7 km
Agency
Faults within 150 km:
	ARDAL_F (Length: 170 km) , Distance to epicenter: 9 km
	MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 14 km
	ZARDKUH_F (Length: 139 km) , Distance to epicenter: 18 km
Number of Phases	5
RMS	0.1
Number of Stations	4
Error in Latitude	>3.9 km
Error in Longitude	6.5 km
Error in Depth	4 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
84558	IIEES	KHMZ	E	102.2	0.48	2012-07-23 12:53:38	2012-07-23 01:12:00	n
84559	IIEES	SHGR	E	85.5	0.33	2012-07-23 12:53:42	2012-07-23 01:12:00	n
84560	IIEES	GHVR	N	31.2	0.4	2012-07-23 12:54:20	2012-07-23 01:12:00	n
84561	IIEES	GHVR	E	21.7	0.56	2012-07-23 12:54:24	2012-07-23 01:12:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	KHMZ	Z	Pg	E		2012-07-23 12:53:20	0.02	y		106	8
IIEES	SHGR	Z	Pg	E		2012-07-23 12:53:23	-0.08	y		121	232
IIEES	SHGR	N	Sg	E		2012-07-23 12:53:38	0.06	y		121	232
IIEES	ASAO	Z	Pn	E		2012-07-23 12:53:35	-0.04	y		196	6
IIEES	GHVR	Z	Pn	E		2012-07-23 12:53:39	0.04	y		230	35
