مشخصات زلزله

Magnitude	:2.8
Date & Time (UTC)	2012-06-08 14:52:14.4
Date & Time (Local)	1391/3/19  19:22:14.4
Location	Lat:32.82 Lon: 49.77
Region	Esfahan Province, 34 km South-West of Fereydunshahr
Nearest Cities
	8 km of Masir, Esfahan Province
	16 km North of Durak, Chaharmahal Bakhtiari Province
	28 km West of Sibak, Esfahan Province
	29 km East of Parchal, Lorestan Province
	31 km South of Farsesh, Lorestan Province
Depth	16 km
Agency

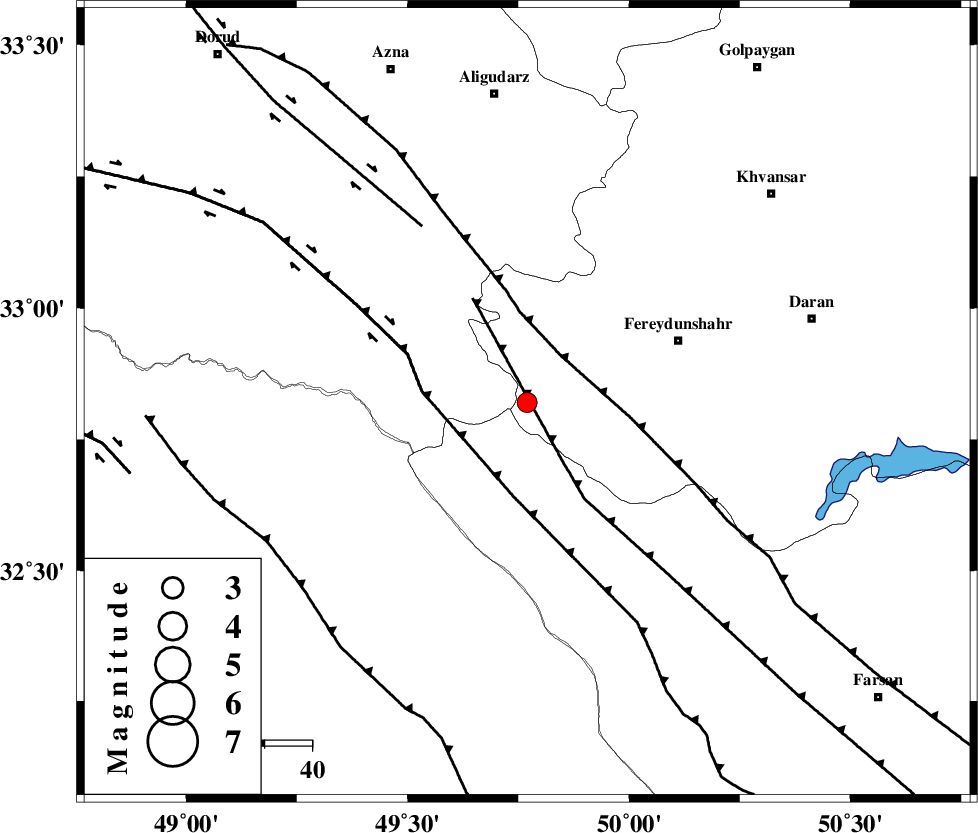

Faults within 150 km:
	MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 12 km
	ARDAL_F (Length: 170 km) , Distance to epicenter: 14 km
	ZARDKUH_F (Length: 139 km) , Distance to epicenter: 20 km
Number of Phases	9
RMS	0.1
Number of Stations	7
Error in Latitude	>1.7 km
Error in Longitude	2.4 km
Error in Depth	3 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
84049	IIEES	SHGR	N	242.3	0.28	2012-06-08 14:52:54	2012-06-08 03:29:00	n
84050	IIEES	SHGR	E	178	0.44	2012-06-08 14:52:57	2012-06-08 03:29:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	KHMZ	Z	Pg	E		2012-06-08 14:52:32	0.21	y		103	10
IIEES	KHMZ	N	Sg	E		2012-06-08 14:52:44	-0.16	y		103	10
IIEES	SHGR	Z	Pg	E		2012-06-08 14:52:34	-0.12	y		121	229
IIEES	ASAO	Z	Pg	E		2012-06-08 14:52:46	0.19	y		193	7
IIEES	GHVR	Z	Pn	E		2012-06-08 14:52:50	-0.07	y		229	36
IIEES	GHVR	N	Sg	E		2012-06-08 14:53:19	-0.11	y		229	36
IIEES	NASN	Z	Pn	E		2012-06-08 14:52:57	0.06	y		285	90
IIEES	SNGE	Z	Pn	E		2012-06-08 14:53:03	0	y		337	319
IIEES	DAMV	Z	Pn	E		2012-06-08 14:53:08	0.01	y		372	32
