Magnitude |
:3.4 |
| Date & Time (UTC) | 2012-05-14 18:05:25.7 |
| Date & Time (Local) | 1391/2/25 22:35:25.7 |

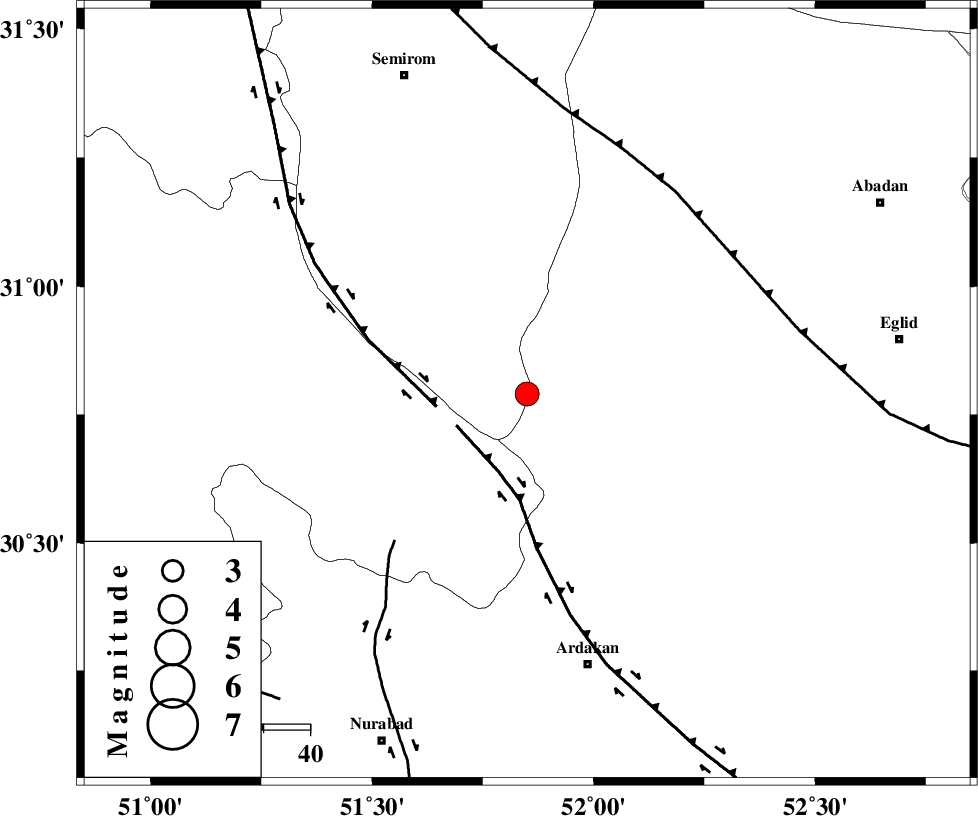

| Location | Lat:30.79 Lon: 51.85 |
| Region | Esfahan Province, 30 km North-East of Yasuj |
Nearest Cities |
|
| 10 km of Bideh, Esfahan Province | |
| 20 km South West of Khosro-o-shirin, Fars Province | |
| 30 km North East of Yasuj, Kohkiluieh va boyerahmad Province | |
| 32 km North West of Sedeh, Fars Province | |
| 33 km North East of Tal-e khosro, Kohkiluieh va boyerahmad Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| HZF3 (Length: 197 km) , Distance to epicenter: 17 km | |
| DENA_F (Length: 137 km) , Distance to epicenter: 20 km | |
| KAZERUN_F (Length: 96 km) , Distance to epicenter: 43 km | |
| Number of Phases | 10 |
| RMS | 0.4 |
| Number of Stations | 9 |
| Error in Latitude | >2.6 km |
| Error in Longitude | 7.3 km |
| Error in Depth | 8.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 83557 | IIEES | AHRM | N | 263 | 0.44 | 2012-05-14 18:06:32 | 2012-05-14 06:23:00 | n |
| 83558 | IIEES | AHRM | E | 278.6 | 0.4 | 2012-05-14 18:06:38 | 2012-05-14 06:23:00 | n |
| 83559 | IIEES | GHIR | N | 132.8 | 0.4 | 2012-05-14 18:06:57 | 2012-05-14 06:23:00 | n |
| 83560 | IIEES | GHIR | E | 185.4 | 0.48 | 2012-05-14 18:07:00 | 2012-05-14 06:23:00 | n |
| 83561 | IIEES | KRBR | E | 37.5 | 0.48 | 2012-05-14 18:07:53 | 2012-05-14 06:23:00 | n |
| 83562 | IIEES | KRBR | N | 35.3 | 0.56 | 2012-05-14 18:07:53 | 2012-05-14 06:23:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pn | E | 2012-05-14 18:06:01 | 0.73 | y | 220 | 194 | |||
| IIEES | AHRM | E | Sg | E | 2012-05-14 18:06:27 | -0.69 | y | 220 | 194 | |||
| IIEES | NASN | Z | Pn | E | 2012-05-14 18:06:03 | 0.21 | y | 240 | 22 | |||
| IIEES | NASN | N | Sg | E | 2012-05-14 18:06:33 | -0.53 | y | 240 | 22 | |||
| IIEES | GHIR | Z | Pn | E | 2012-05-14 18:06:10 | 0.06 | y | 299 | 158 | |||
| IIEES | KHMZ | Z | Pn | E | 2012-05-14 18:06:20 | 0.17 | y | 372 | 332 | |||
| IIEES | ASAO | Z | Pn | E | 2012-05-14 18:06:29 | -0.26 | y | 451 | 338 | |||
| IIEES | TABS | N | Pn | E | 2012-05-14 18:06:46 | 0.17 | y | 589 | 56 | |||
| IIEES | SNGE | Z | Pn | E | 2012-05-14 18:06:52 | 0.07 | y | 636 | 320 | |||
| IIEES | SHRO | Z | Pn | E | 2012-05-14 18:07:00 | 0.3 | y | 696 | 33 | |||
