مشخصات زلزله

Magnitude	:3.5
Date & Time (UTC)	2012-04-20 21:40:53.1
Date & Time (Local)	1391/2/2  02:10:53.1

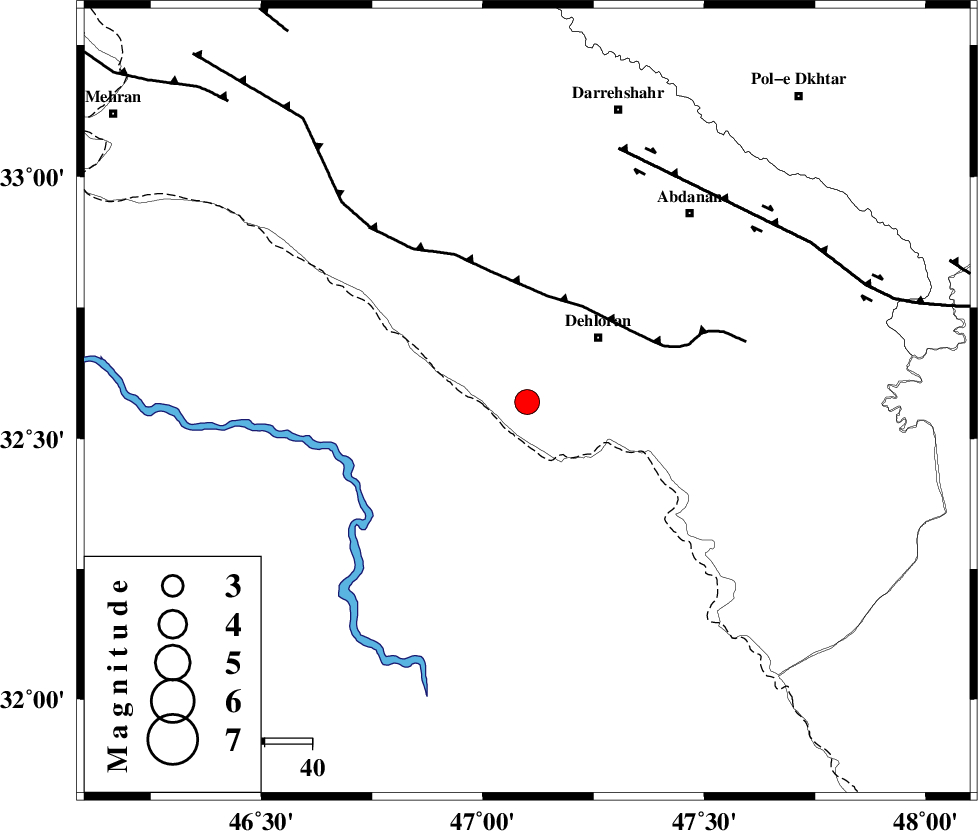

Location	Lat:32.57 Lon: 47.1
Region	Ilam Province, 21 km South-West of Dehloran
Nearest Cities
	20 km South West of Dehloran, Ilam Province
	25 km North West of Musian, Ilam Province
	31 km South East of Bishehzar, Ilam Province
	53 km South West of Abdanan, Ilam Province
	57 km South West of Sarabbagh, Ilam Province
Depth	43 km
Agency
Faults within 150 km:
	MFF6 (Length: 144 km) , Distance to epicenter: 23 km
	BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 57 km
	ZFF4 (Length: 128 km) , Distance to epicenter: 90 km
Number of Phases	8
RMS	0.2
Number of Stations	6
Error in Latitude	>2.9 km
Error in Longitude	6.5 km
Error in Depth	7 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
82933	IIEES	SHGR	E	1295.6	0.68	2012-04-20 21:41:43	2012-04-20 09:58:00	n
82934	IIEES	SHGR	N	1139.9	0.32	2012-04-20 21:41:44	2012-04-20 09:58:00	n
82935	IIEES	KHMZ	N	139.5	0.56	2012-04-20 21:42:22	2012-04-20 09:58:00	n
82936	IIEES	KHMZ	E	138.8	0.6	2012-04-20 21:42:30	2012-04-20 09:58:00	n
82937	IIEES	GHVR	N	55.8	0.72	2012-04-20 21:43:07	2012-04-20 09:58:00	n
82938	IIEES	GHVR	E	62.9	0.52	2012-04-20 21:43:08	2012-04-20 09:58:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	SHGR	Z	Pn	E		2012-04-20 21:41:18	-0.24	y		168	107
IIEES	SHGR	N	Sg	E		2012-04-20 21:41:40	0.11	y		168	107
IIEES	SNGE	Z	Pn	E		2012-04-20 21:41:33	-0.15	y		281	5
IIEES	KHMZ	Z	Pn	E		2012-04-20 21:41:35	0.04	y		297	63
IIEES	KHMZ	N	Sg	E		2012-04-20 21:42:15	-0.15	y		297	63
IIEES	ASAO	Z	Pn	E		2012-04-20 21:41:41	0.08	y		349	50
IIEES	GHVR	Z	Pn	E		2012-04-20 21:41:53	0.23	y		440	60
IIEES	ZNJK	Z	Pn	E		2012-04-20 21:41:57	0.18	y		478	17
