مشخصات زلزله

Magnitude	:4.9
Date & Time (UTC)	2012-04-20 16:17:50.2
Date & Time (Local)	1391/2/1  20:47:50.2

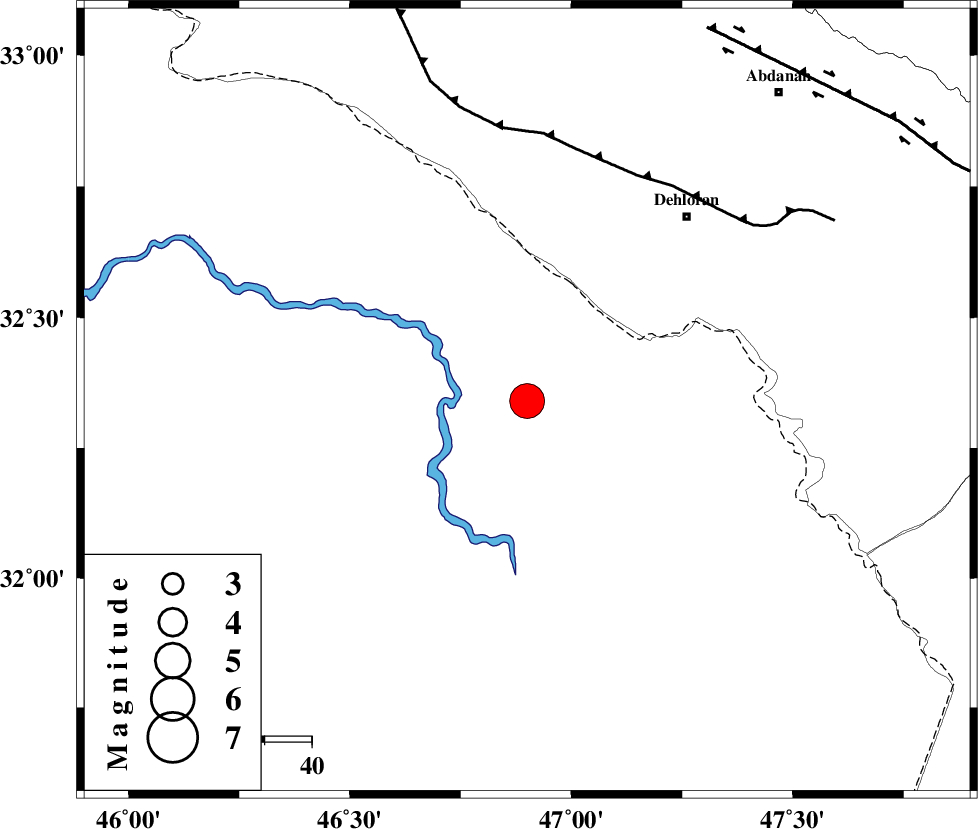

Location	Lat:32.34 Lon: 46.9
Region	Iraq, 52 km South-West of Dehloran
Nearest Cities
	49 km South West of Musian, Ilam Province
	52 km South West of Dehloran, Ilam Province
	54 km South of Bishehzar, Ilam Province
	84 km South West of Abdanan, Ilam Province
	88 km South West of Sarabbagh, Ilam Province
Depth	42 km
Agency
Faults within 150 km:
	MFF6 (Length: 144 km) , Distance to epicenter: 53 km
	BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 88 km
	ZFF4 (Length: 128 km) , Distance to epicenter: 100 km
Number of Phases	6
RMS	0.1
Number of Stations	5
Error in Latitude	>4 km
Error in Longitude	8.9 km
Error in Depth	3.6 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
82922	IIEES	SHGR	E	15858	0.72	2012-04-20 16:18:50	2012-04-20 04:33:00	n
82923	IIEES	SHGR	N	21833	0.64	2012-04-20 16:18:57	2012-04-20 04:33:00	n
82924	IIEES	GHVR	E	510.7	0.64	2012-04-20 16:20:22	2012-04-20 04:33:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	SHGR	Z	Pg	E		2012-04-20 16:18:19	0	y		181	98
IIEES	SNGE	Z	Pn	E		2012-04-20 16:18:33	0	y		308	8
IIEES	SNGE	N	Sg	E		2012-04-20 16:19:15	0	y		308	8
IIEES	KHMZ	Z	Pn	E		2012-04-20 16:18:36	0.19	y		325	61
IIEES	ASAO	Z	Pn	E		2012-04-20 16:18:42	-0.05	y		380	49
IIEES	GHVR	Z	Pn	E		2012-04-20 16:18:53	-0.2	y		468	58
