Magnitude |
:3.4 |
| Date & Time (UTC) | 2012-04-19 06:27:05.9 |
| Date & Time (Local) | 1391/1/31 10:57:05.9 |

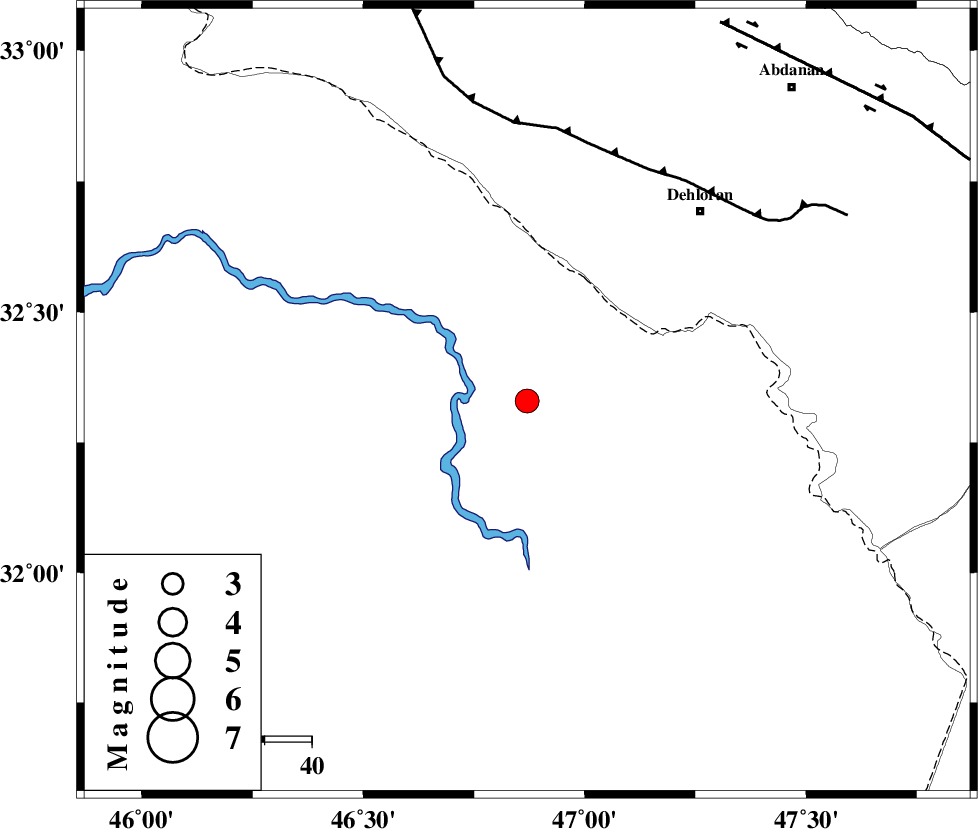

| Location | Lat:32.33 Lon: 46.87 |
| Region | Iraq, 54 km South-West of Dehloran |
Nearest Cities |
|
| 52 km South West of Musian, Ilam Province | |
| 54 km South West of Dehloran, Ilam Province | |
| 56 km South West of Bishehzar, Ilam Province | |
| 87 km South West of Abdanan, Ilam Province | |
| 91 km South West of Sarabbagh, Ilam Province | |
| Depth | 40 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 56 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 90 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 100 km | |
| Number of Phases | 9 |
| RMS | 0.2 |
| Number of Stations | 8 |
| Error in Latitude | >4.5 km |
| Error in Longitude | 5.8 km |
| Error in Depth | 5.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 82834 | IIEES | SHGR | E | 1049.2 | 0.42 | 2012-04-19 06:28:00 | 2012-04-19 06:57:00 | n |
| 82835 | IIEES | SHGR | N | 1065.3 | 0.31 | 2012-04-19 06:28:02 | 2012-04-19 06:57:00 | n |
| 82836 | IIEES | SNGE | N | 81.2 | 0.41 | 2012-04-19 06:28:33 | 2012-04-19 06:57:00 | n |
| 82837 | IIEES | SNGE | E | 102.5 | 0.47 | 2012-04-19 06:28:36 | 2012-04-19 06:57:00 | n |
| 82838 | IIEES | KHMZ | E | 66 | 0.64 | 2012-04-19 06:28:40 | 2012-04-19 06:57:00 | n |
| 82839 | IIEES | ASAO | E | 51.3 | 0.55 | 2012-04-19 06:28:59 | 2012-04-19 06:57:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2012-04-19 06:27:35 | -0.1 | y | 184 | 97 | |||
| IIEES | SHGR | N | Sg | E | 2012-04-19 06:27:57 | 0.08 | y | 184 | 97 | |||
| IIEES | SNGE | Z | Pn | E | 2012-04-19 06:27:50 | 0.23 | y | 309 | 8 | |||
| IIEES | KHMZ | Z | Pn | E | 2012-04-19 06:27:52 | -0.08 | y | 329 | 61 | |||
| IIEES | ASAO | Z | Pn | E | 2012-04-19 06:27:58 | -0.11 | y | 383 | 49 | |||
| IIEES | GHVR | Z | Pn | E | 2012-04-19 06:28:10 | 0.26 | y | 472 | 58 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-04-19 06:28:14 | -0.13 | y | 509 | 19 | |||
| IIEES | CHTH | Z | Pn | E | 2012-04-19 06:28:20 | -0.26 | y | 558 | 44 | |||
| IIEES | GHIR | Z | Pn | E | 2012-04-19 06:28:43 | 0.04 | y | 740 | 126 | |||
