مشخصات زلزله

Magnitude	:3.3
Date & Time (UTC)	2012-03-31 05:13:32.3
Date & Time (Local)	1391/1/12  09:43:32.3

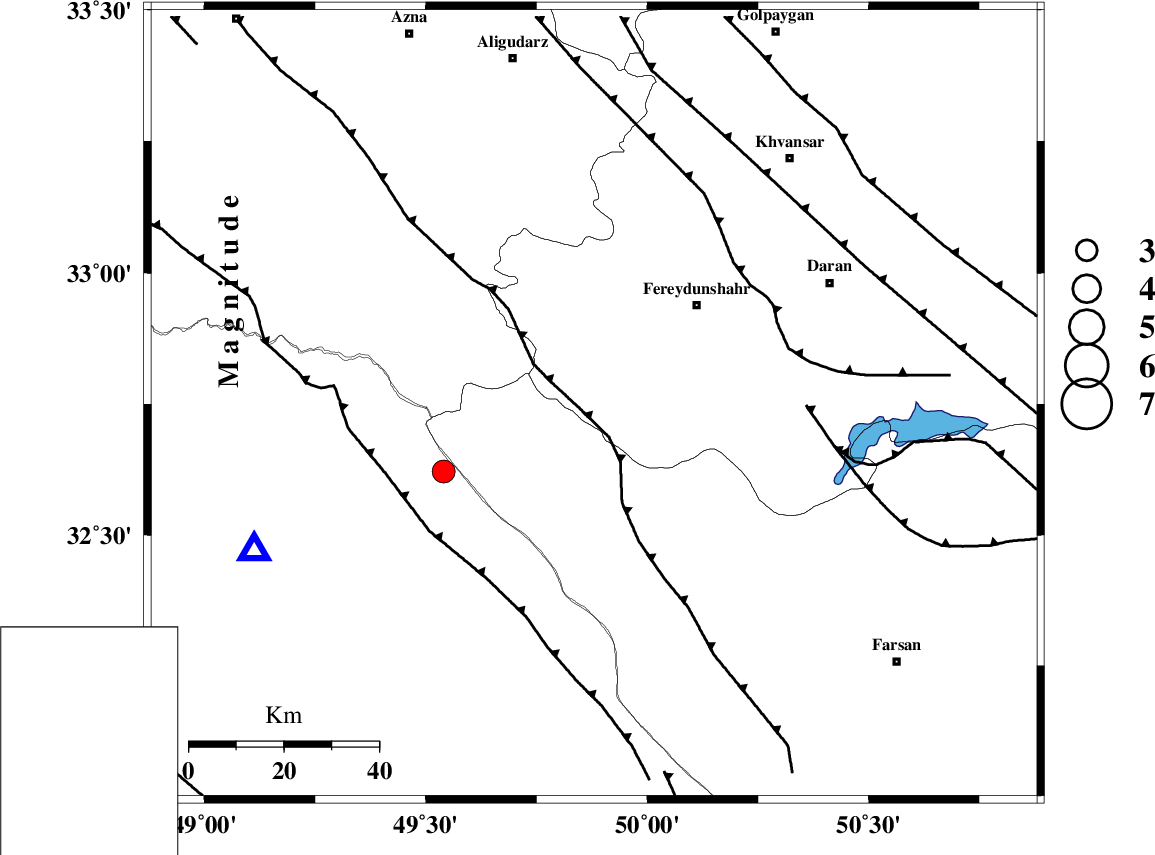

Location	Lat:32.75 Lon: 49.88
Region	Esfahan Province, 30 km South-West of Fereydunshahr
Nearest Cities
	6 km North of Durak, Chaharmahal Bakhtiari Province
	11 km of Masir, Esfahan Province
	23 km South West of Sibak, Esfahan Province
	30 km South West of Fereydunshahr, Esfahan Province
	32 km North West of Ghale? sorkh, Esfahan Province
Depth	14 km
Agency
Faults within 150 km:
	ARDAL_F (Length: 170 km) , Distance to epicenter: 5 km
	MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 12 km
	ZARDKUH_F (Length: 139 km) , Distance to epicenter: 18 km
Number of Phases	5
RMS	0.3
Number of Stations	4
Error in Latitude	>2.6 km
Error in Longitude	2.9 km
Error in Depth	8.2 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
82601	IIEES	SHGR	N	1265.9	0.4	2012-03-31 05:14:13	2012-03-31 10:16:00	n
82602	IIEES	SHGR	E	581.4	0.76	2012-03-31 05:14:20	2012-03-31 10:16:00	n
82603	IIEES	ASAO	E	159.6	0.52	2012-03-31 05:14:42	2012-03-31 10:16:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	KHMZ	Z	Pg	E		2012-03-31 05:13:51	0.27	y		110	4
IIEES	SHGR	Z	Pg	E		2012-03-31 05:13:52	-0.16	y		124	235
IIEES	ASAO	Z	Pn	E		2012-03-31 05:14:05	0.33	y		200	4
IIEES	ASAO	E	Sg	E		2012-03-31 05:14:28	-0.36	y		200	4
IIEES	NASN	E	Sg	E		2012-03-31 05:14:49	-0.07	y		275	88
