Magnitude |
:4.2 |
| Date & Time (UTC) | 2012-03-24 05:25:36.7 |
| Date & Time (Local) | 1391/1/5 09:55:36.7 |
| Location | Lat:32.46 Lon: 46.99 |
| Region | Iraq, 36 km South-West of Dehloran |
Nearest Cities |
|
| 36 km West of Musian, Ilam Province | |
| 36 km South West of Dehloran, Ilam Province | |
| 41 km South of Bishehzar, Ilam Province | |
| 69 km South West of Abdanan, Ilam Province | |
| 73 km South West of Sarabbagh, Ilam Province | |
| Depth | 44 km |
| Agency | |

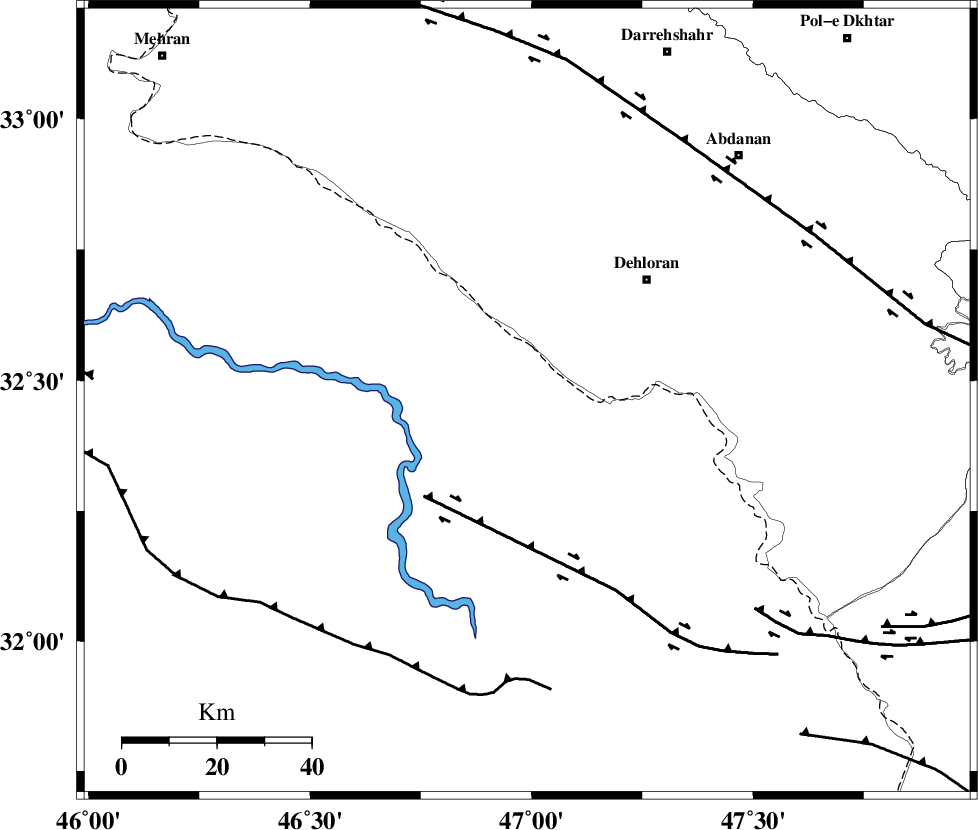

Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 38 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 72 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 93 km | |
| Number of Phases | 14 |
| RMS | 0.3 |
| Number of Stations | 14 |
| Error in Latitude | >4 km |
| Error in Longitude | 8.8 km |
| Error in Depth | 6.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 82522 | IIEES | KHMZ | E | 1085.7 | 0.45 | 2012-03-24 05:27:09 | 2012-03-24 04:50:00 | n |
| 82523 | IIEES | KHMZ | N | 939.4 | 0.57 | 2012-03-24 05:27:15 | 2012-03-24 04:50:00 | n |
| 82524 | IIEES | ASAO | N | 529.8 | 0.47 | 2012-03-24 05:27:22 | 2012-03-24 04:50:00 | n |
| 82525 | IIEES | ASAO | E | 535 | 0.57 | 2012-03-24 05:27:25 | 2012-03-24 04:50:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2012-03-24 05:26:05 | -0.01 | y | 175 | 102 | |||
| IIEES | SNGE | Z | Pn | E | 2012-03-24 05:26:18 | -0.07 | y | 294 | 6 | |||
| IIEES | KHMZ | Z | Pn | E | 2012-03-24 05:26:20 | 0.28 | y | 312 | 62 | |||
| IIEES | ASAO | Z | Pn | E | 2012-03-24 05:26:27 | 0.33 | y | 365 | 50 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-03-24 05:26:43 | 0.05 | y | 493 | 18 | |||
| IIEES | THKV | Z | Pn | E | 2012-03-24 05:26:47 | 0.3 | y | 525 | 42 | |||
| IIEES | CHTH | Z | Pn | E | 2012-03-24 05:26:48 | -0.35 | y | 540 | 44 | |||
| IIEES | NASN | Z | Pn | E | 2012-03-24 05:26:49 | -0.06 | y | 547 | 84 | |||
| IIEES | AHRM | Z | Pn | E | 2012-03-24 05:26:53 | 0.24 | y | 573 | 133 | |||
| IIEES | DAMV | Z | Pn | E | 2012-03-24 05:26:53 | -0.42 | y | 579 | 51 | |||
| IIEES | GHIR | Z | Pn | E | 2012-03-24 05:27:13 | -0.26 | y | 739 | 127 | |||
| IIEES | SHRO | Z | Pn | E | 2012-03-24 05:27:35 | -0.33 | y | 919 | 62 | |||
| IIEES | TABS | Z | Pn | E | 2012-03-24 05:27:39 | -0.55 | y | 955 | 79 | |||
| IIEES | KRBR | Z | Pn | E | 2012-03-24 05:27:42 | -0.03 | y | 970 | 104 | |||
