مشخصات زلزله

Magnitude	:2
Date & Time (UTC)	2012-02-13 10:56:57.6
Date & Time (Local)	1390/11/24  14:26:57.6

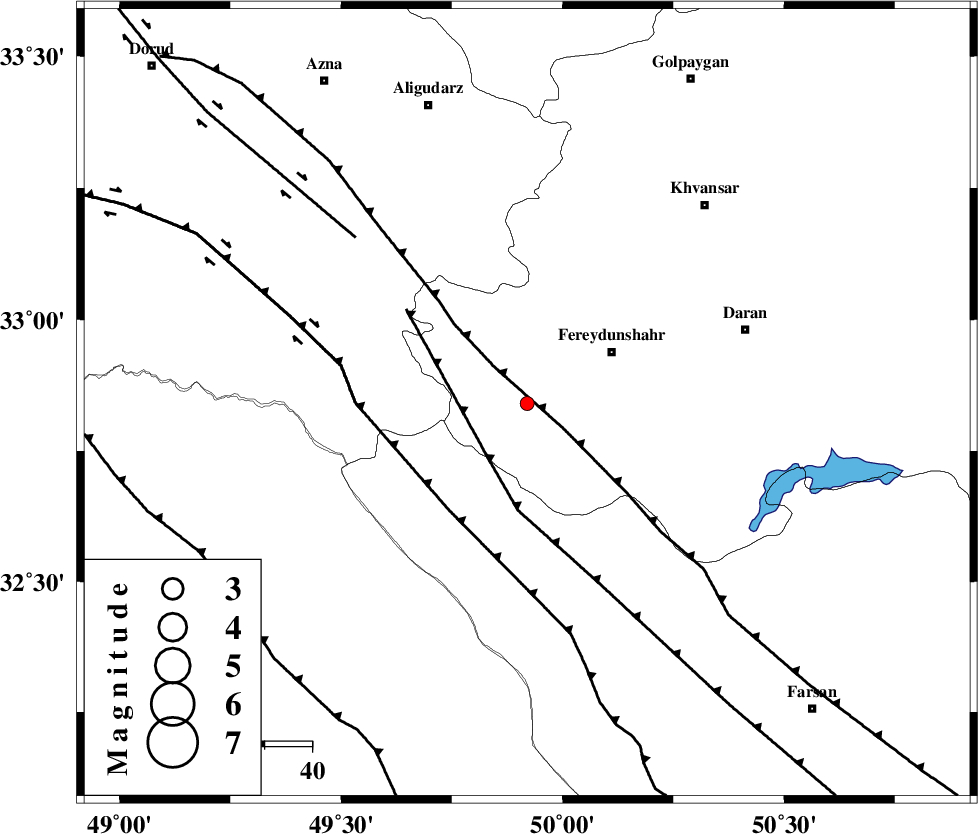

Location	Lat:32.84 Lon: 49.92
Region	Esfahan Province, 21 km West of Fereydunshahr
Nearest Cities
	6 km of Masir, Esfahan Province
	14 km West of Sibak, Esfahan Province
	17 km North of Durak, Chaharmahal Bakhtiari Province
	21 km West of Fereydunshahr, Esfahan Province
	25 km South West of Afus, Esfahan Province
Depth	18 km
Agency
Faults within 150 km:
	MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 9 km
	ARDAL_F (Length: 170 km) , Distance to epicenter: 16 km
	ZARDKUH_F (Length: 139 km) , Distance to epicenter: 28 km
Number of Phases	5
RMS	0.1
Number of Stations	5
Error in Latitude	>2.3 km
Error in Longitude	6.1 km
Error in Depth	8.4 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
81860	IIEES	KHMZ	N	25.7	0.46	2012-02-13 10:57:31	2012-02-13 10:10:00	n
81861	IIEES	KHMZ	E	46.5	0.31	2012-02-13 10:57:32	2012-02-13 10:10:00	n
81862	IIEES	SHGR	N	80	0.4	2012-02-13 10:57:38	2012-02-13 10:10:00	n
81863	IIEES	SHGR	E	72.3	0.46	2012-02-13 10:57:41	2012-02-13 10:10:00	n
81864	IIEES	ASAO	E	11.5	0.73	2012-02-13 10:58:00	2012-02-13 10:10:00	n
81865	IIEES	ASAO	N	14.9	0.7	2012-02-13 10:58:01	2012-02-13 10:10:00	n
81866	IIEES	NASN	N	5.7	0.55	2012-02-13 10:58:13	2012-02-13 10:10:00	n
81867	IIEES	NASN	E	7.5	0.5	2012-02-13 10:58:14	2012-02-13 10:10:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	KHMZ	Z	P	E		2012-02-13 10:57:14	-0.17	y		99.6	2
IIEES	SHGR	Z	Pg	E		2012-02-13 10:57:19	0.01	y		133	233
IIEES	ASAO	Z	Pg	E		2012-02-13 10:57:29	0.1	y		189	3
IIEES	GHVR	Z	Pn	E		2012-02-13 10:57:32	0.11	y		219	34
IIEES	NASN	Z	Pn	E		2012-02-13 10:57:38	-0.05	y		270	90
