Magnitude |
:4 |
| Date & Time (UTC) | 2012-01-13 12:35:34.9 |
| Date & Time (Local) | 1390/10/23 16:05:34.9 |

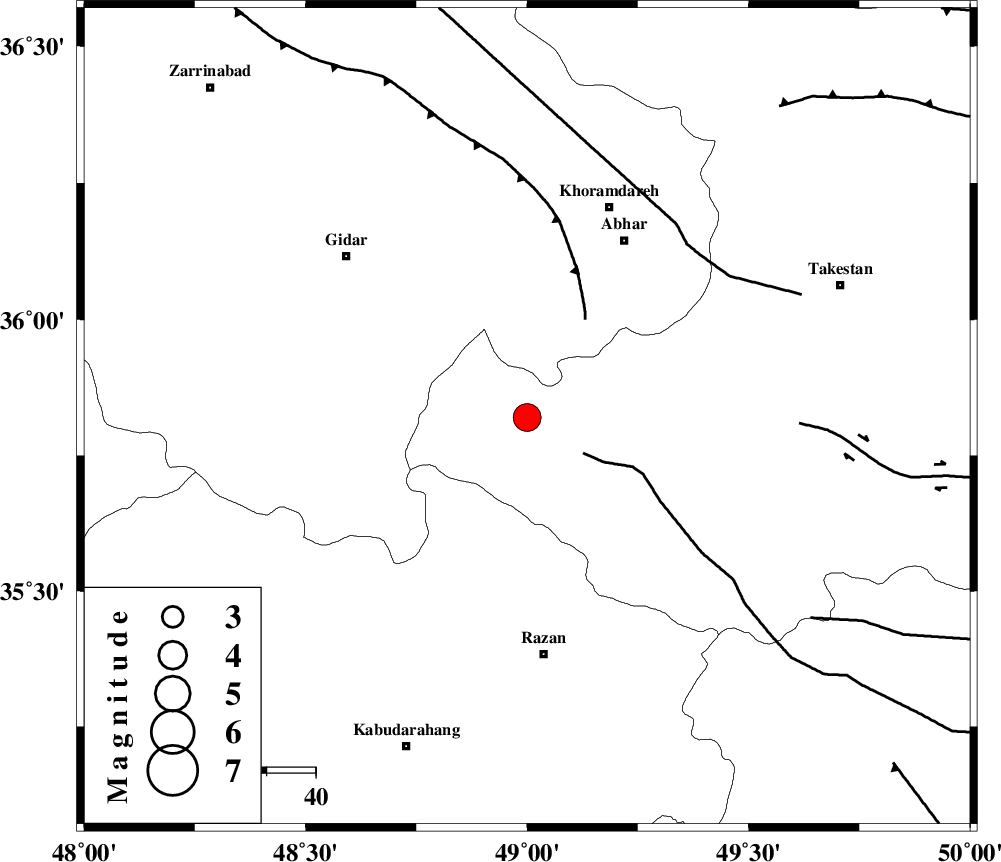

| Location | Lat:35.82 Lon: 49 |
| Region | Ghazvin Province, 48 km North of Razan |
Nearest Cities |
|
| 27 km North West of Ab-e garm, Ghazvin Province | |
| 31 km South West of Darsajin, Zanjan Province | |
| 33 km South West of Khalifeh hesar, Zanjan Province | |
| 33 km North East of Kahla, Zanjan Province | |
| 34 km North West of Avaj, Ghazvin Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 14 km | |
| SOLTANIYEH_F (Length: 119 km) , Distance to epicenter: 23 km | |
| ZANJAN_F (Length: 137 km) , Distance to epicenter: 48 km | |
| Number of Phases | 8 |
| RMS | 0.1 |
| Number of Stations | 8 |
| Error in Latitude | >2 km |
| Error in Longitude | 2.8 km |
| Error in Depth | 4.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 81344 | IIEES | ZNJK | E | 3744.2 | 0.2 | 2012-01-13 12:36:05 | 2012-01-13 12:06:00 | n |
| 81345 | IIEES | THKV | E | 1682.2 | 0.6 | 2012-01-13 12:36:36 | 2012-01-13 12:06:00 | n |
| 81346 | IIEES | KHMZ | N | 1155.7 | 0.44 | 2012-01-13 12:36:48 | 2012-01-13 12:06:00 | n |
| 81347 | IIEES | KHMZ | E | 853.4 | 0.56 | 2012-01-13 12:36:50 | 2012-01-13 12:06:00 | n |
| 81348 | IIEES | GHVR | E | 674.1 | 0.6 | 2012-01-13 12:37:08 | 2012-01-13 12:06:00 | n |
| 81349 | IIEES | SHGR | N | 351.9 | 0.72 | 2012-01-13 12:37:36 | 2012-01-13 12:06:00 | n |
| 81350 | IIEES | SHGR | E | 263.4 | 0.68 | 2012-01-13 12:37:49 | 2012-01-13 12:06:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZNJK | Z | Pg | E | 2012-01-13 12:35:51 | -0.06 | y | 98.8 | 344 | |||
| IIEES | THKV | Z | Pg | E | 2012-01-13 12:36:03 | -0.06 | y | 170 | 86 | |||
| IIEES | KHMZ | Z | Pn | E | 2012-01-13 12:36:13 | -0.15 | y | 247 | 159 | |||
| IIEES | GHVR | Z | Pn | E | 2012-01-13 12:36:14 | 0.11 | y | 253 | 125 | |||
| IIEES | GRMI | Z | Pn | E | 2012-01-13 12:36:25 | 0.08 | y | 346 | 344 | |||
| IIEES | SHGR | Z | Pn | E | 2012-01-13 12:36:33 | 0.04 | y | 412 | 183 | |||
| IIEES | NASN | Z | Pn | E | 2012-01-13 12:36:43 | 0.08 | y | 485 | 133 | |||
| IIEES | TABS | Z | Pn | E | 2012-01-13 12:37:19 | 0.02 | y | 781 | 106 | |||
