مشخصات زلزله

Magnitude	:4
Date & Time (UTC)	2011-12-25 05:35:34.6
Date & Time (Local)	1390/10/4  09:05:34.6

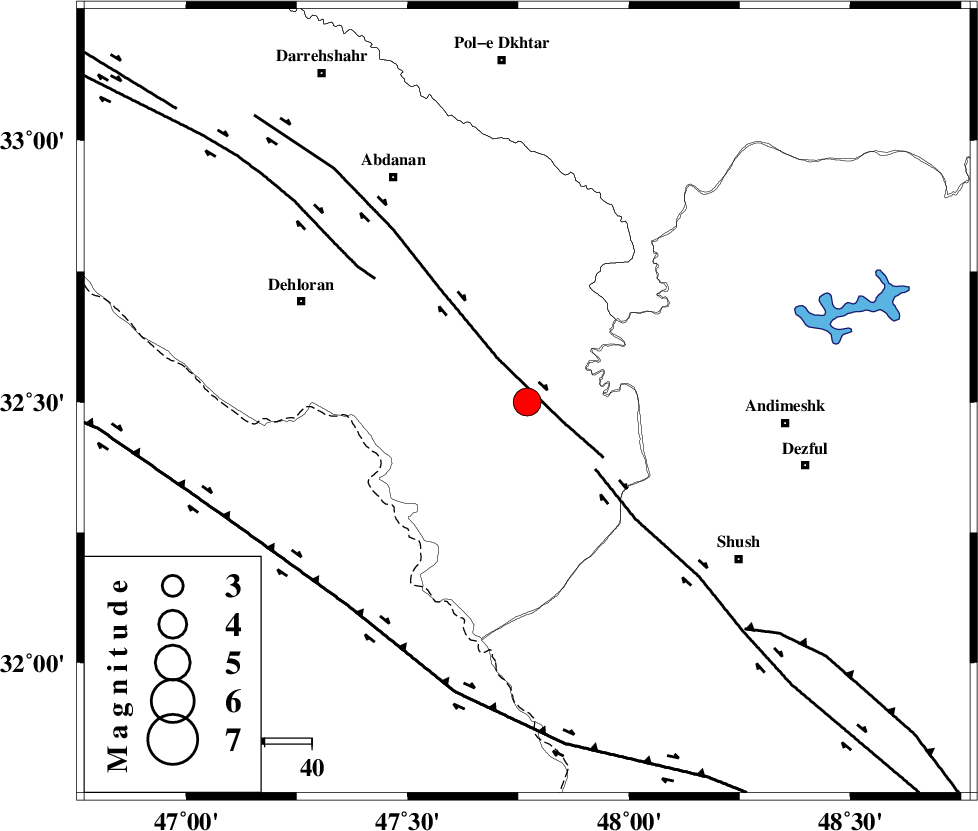

Location	Lat:32.5 Lon: 47.77
Region	Ilam Province, 55 km West of Andimeshk
Nearest Cities
	39 km East of Musian, Ilam Province
	48 km South East of Sarabbagh, Ilam Province
	49 km South West of Hoseinieh, Khoozestan Province
	52 km South West of Bidruyeh, Khoozestan Province
	52 km South East of Dehloran, Ilam Province
Depth	30 km
Agency
Faults within 150 km:
	MFF6 (Length: 144 km) , Distance to epicenter: 26 km
	BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 33 km
	DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 38 km
Number of Phases	17
RMS	0.3
Number of Stations	16
Error in Latitude	>3.3 km
Error in Longitude	5.7 km
Error in Depth	7 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
81100	IIEES	SHGR	E	3914.5	0.36	2011-12-25 05:36:37	2011-12-25 05:01:00	n
81101	IIEES	SHGR	N	3805.7	0.59	2011-12-25 05:36:42	2011-12-25 05:01:00	n
81102	IIEES	KHMZ	E	1276	0.5	2011-12-25 05:36:49	2011-12-25 05:01:00	n
81103	IIEES	KHMZ	N	916.2	0.54	2011-12-25 05:36:50	2011-12-25 05:01:00	n
81104	IIEES	ASAO	N	462.3	0.55	2011-12-25 05:37:08	2011-12-25 05:01:00	n
81105	IIEES	GHVR	E	244.4	0.51	2011-12-25 05:37:33	2011-12-25 05:01:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	SHGR	Z	Pg	E		2011-12-25 05:35:52	0.31	y		107	114
IIEES	KHMZ	Z	Pn	E		2011-12-25 05:36:12	0.44	y		247	56
IIEES	KHMZ	E	Sg	E		2011-12-25 05:36:42	-0.34	y		247	56
IIEES	SNGE	Z	Pn	E		2011-12-25 05:36:17	0	y		290	352
IIEES	ASAO	Z	Pn	E		2011-12-25 05:36:19	0.38	y		309	42
IIEES	GHVR	Z	Pn	E		2011-12-25 05:36:29	0.46	y		391	55
IIEES	ZNJK	Z	Pn	E		2011-12-25 05:36:39	-0.01	y		470	10
IIEES	NASN	Z	Pn	E		2011-12-25 05:36:39	-0.05	y		474	85
IIEES	THKV	Z	Pn	E		2011-12-25 05:36:39	-0.01	y		475	36
IIEES	CHTH	Z	Pn	E		2011-12-25 05:36:41	-0.25	y		489	38
IIEES	AHRM	Z	Pn	E		2011-12-25 05:36:45	-0.55	y		526	139
IIEES	GRMI	Z	Pn	E		2011-12-25 05:37:07	-0.1	y		700	1
IIEES	MAKU	Z	Pn	E		2011-12-25 05:37:21	-0.49	y		810	341
IIEES	SHRO	Z	Pn	E		2011-12-25 05:37:26	-0.54	y		853	61
IIEES	TABS	Z	Pn	E		2011-12-25 05:37:29	-0.63	y		882	79
IIEES	KRBR	Z	Pn	E		2011-12-25 05:37:32	-0.18	y		901	106
IIEES	MRVT	Z	Pn	E		2011-12-25 05:37:39	0.26	y		950	51
