Magnitude |
:4.3 |
| Date & Time (UTC) | 2011-12-08 20:04:31.4 |
| Date & Time (Local) | 1390/9/17 23:34:31.4 |

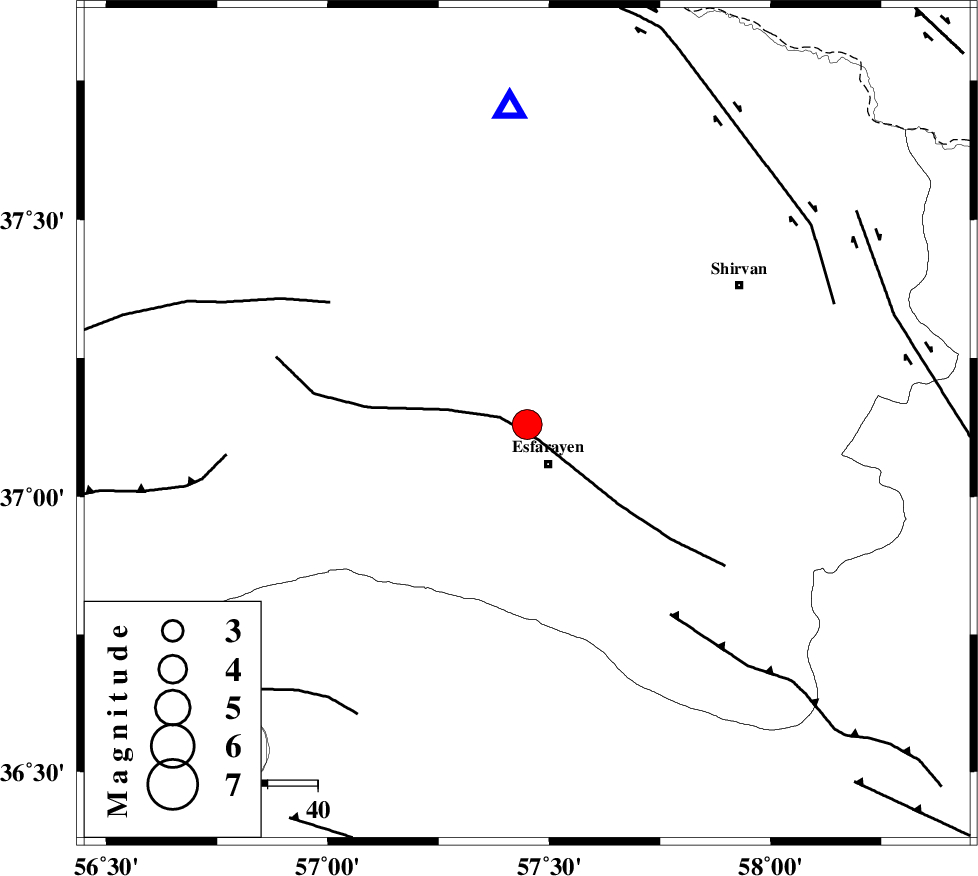

| Location | Lat:37.13 Lon: 57.45 |
| Region | Khorasan(north) Province, 9 km Esfarayen |
Nearest Cities |
|
| 3 km North of Eraj, Khorasan(north) Province | |
| 9 km North of Esfarayen, Khorasan(north) Province | |
| 15 km North West of Parkanlu, Khorasan(north) Province | |
| 17 km North East of Zarqabad, Khorasan(north) Province | |
| 19 km North of Abbasabad, Khorasan(north) Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 4 km | |
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 46 km | |
| RIVAND_F (Length: 70 km) , Distance to epicenter: 48 km | |
| Number of Phases | 9 |
| RMS | 0.2 |
| Number of Stations | 10 |
| Error in Latitude | >1.4 km |
| Error in Longitude | 2.5 km |
| Error in Depth | 4.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 80906 | IIEES | MRVT | E | 3420.7 | 0.6 | 2011-12-08 20:05:18 | 2011-12-08 07:30:00 | n |
| 80907 | IIEES | MRVT | N | 5097.6 | 0.48 | 2011-12-08 20:05:23 | 2011-12-08 07:30:00 | n |
| 80908 | IIEES | SHRO | E | 2771.1 | 0.56 | 2011-12-08 20:05:27 | 2011-12-08 07:30:00 | n |
| 80909 | IIEES | SHRO | N | 2283.2 | 0.68 | 2011-12-08 20:05:28 | 2011-12-08 07:30:00 | n |
| 80910 | IIEES | THKV | E | 144.4 | 0.6 | 2011-12-08 20:07:33 | 2011-12-08 07:30:00 | n |
| 80911 | IIEES | GHVR | N | 86.8 | 0.72 | 2011-12-08 20:07:57 | 2011-12-08 07:30:00 | n |
| 80912 | IIEES | GHVR | E | 152.7 | 0.64 | 2011-12-08 20:08:14 | 2011-12-08 07:30:00 | n |
| 80913 | IIEES | ZNJK | N | 67.3 | 0.48 | 2011-12-08 20:07:41 | 2011-12-08 07:30:00 | n |
| 80914 | IIEES | ZNJK | E | 46.8 | 0.52 | 2011-12-08 20:07:44 | 2011-12-08 07:30:00 | n |
| 80915 | IIEES | KRBR | N | 70.3 | 0.68 | 2011-12-08 20:08:39 | 2011-12-08 07:30:00 | n |
| 80916 | IIEES | KRBR | E | 55.1 | 0.68 | 2011-12-08 20:08:48 | 2011-12-08 07:30:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BJRD | Z | Pg | E | 2011-12-08 20:04:42 | 0.04 | y | 63.6 | 357 | |||
| IIEES | MRVT | Z | Pg | E | 2011-12-08 20:04:53 | -0.26 | y | 134 | 297 | |||
| IIEES | MRVT | N | Sg | E | 2011-12-08 20:05:10 | 0.14 | y | 134 | 297 | |||
| IIEES | SHRO | Z | Pg | E | 2011-12-08 20:05:01 | 0.13 | y | 179 | 226 | |||
| IIEES | SHRO | N | Sg | E | 2011-12-08 20:05:22 | -0.06 | y | 179 | 226 | |||
| IIEES | SHRT | Z | Pn | E | 2011-12-08 20:05:36 | 0.02 | y | 465 | 145 | |||
| IIEES | GHVR | Z | Pn | E | 2011-12-08 20:05:57 | -0.06 | y | 633 | 244 | |||
| IIEES | NASN | Z | Pn | E | 2011-12-08 20:05:58 | -0.17 | y | 640 | 223 | |||
| IIEES | KHMZ | Z | Pn | E | 2011-12-08 20:06:16 | 0.32 | y | 776 | 243 | |||
