Magnitude |
:3.2 |
| Date & Time (UTC) | 2011-11-28 22:17:56.9 |
| Date & Time (Local) | 1390/9/8 01:47:56.9 |

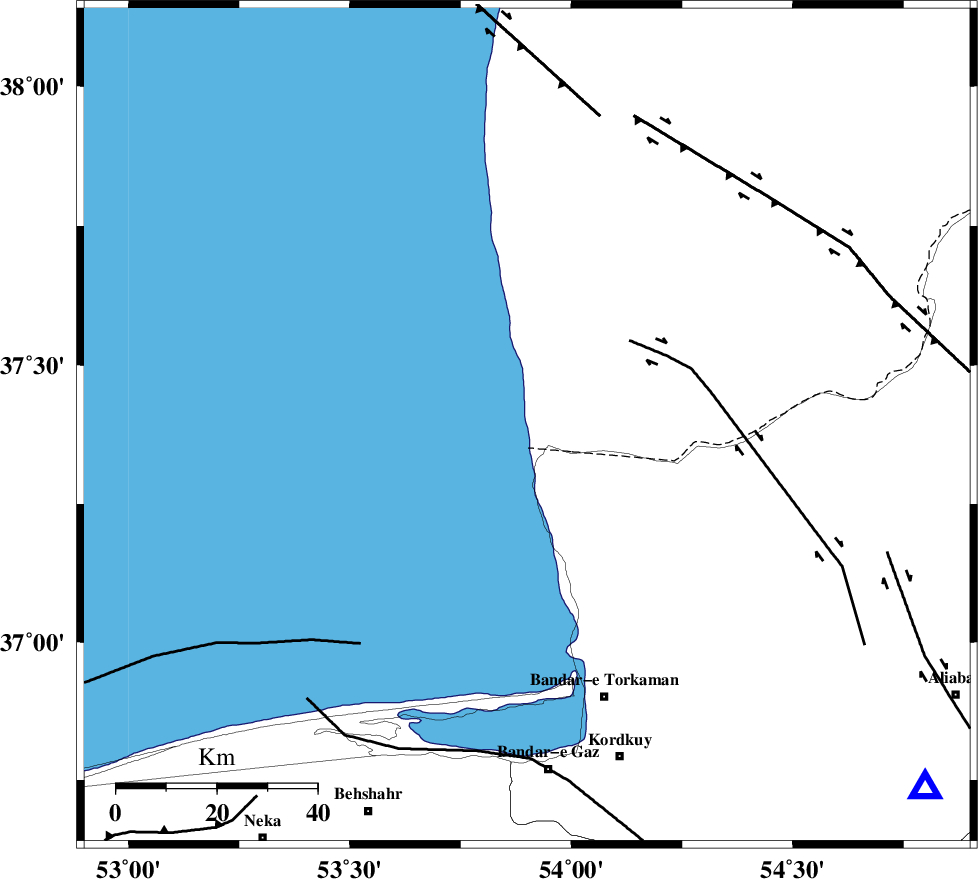

| Location | Lat:37.39 Lon: 53.9 |
| Region | 56 km North-West of Bandar-e torkaman |
Nearest Cities |
|
| 36 km North West of Gomishtappeh, Golestan Province | |
| 51 km North West of Banavar, Golestan Province | |
| 57 km North West of Bandar-e torkaman, Golestan Province | |
| 60 km North West of Sijval, Golestan Province | |
| 65 km North West of Aq Qaleh, Golestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 70 km | |
| N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 96 km | |
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 102 km | |
| Number of Phases | 9 |
| RMS | 0.3 |
| Number of Stations | 10 |
| Error in Latitude | >5.1 km |
| Error in Longitude | 1.9 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 80813 | IIEES | SHRO | E | 67.9 | 0.4 | 2011-11-28 22:19:12 | 2011-11-28 09:54:00 | n |
| 80814 | IIEES | SHRO | N | 60.1 | 0.28 | 2011-11-28 22:19:16 | 2011-11-28 09:54:00 | n |
| 80815 | IIEES | CHTH | E | 64.5 | 0.48 | 2011-11-28 22:19:32 | 2011-11-28 09:54:00 | n |
| 80816 | IIEES | THKV | N | 332.1 | 0.84 | 2011-11-28 22:19:37 | 2011-11-28 09:54:00 | n |
| 80817 | IIEES | THKV | E | 255.9 | 0.56 | 2011-11-28 22:19:38 | 2011-11-28 09:54:00 | n |
| 80818 | IIEES | GHVR | E | 115 | 0.76 | 2011-11-28 22:19:55 | 2011-11-28 09:54:00 | n |
| 80819 | IIEES | ASAO | N | 13.7 | 0.48 | 2011-11-28 22:20:15 | 2011-11-28 09:54:00 | n |
| 80820 | IIEES | ASAO | E | 18.3 | 0.6 | 2011-11-28 22:20:20 | 2011-11-28 09:54:00 | n |
| 80821 | IIEES | GRMI | N | 17.2 | 0.32 | 2011-11-28 22:20:10 | 2011-11-28 09:54:00 | n |
| 80822 | IIEES | GRMI | E | 13 | 0.24 | 2011-11-28 22:20:14 | 2011-11-28 09:54:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MRVT | Z | Pn | E | 2011-11-28 22:18:28 | -0.33 | y | 196 | 80 | |||
| IIEES | SHRO | Z | Pn | E | 2011-11-28 22:18:34 | -0.13 | y | 243 | 128 | |||
| IIEES | CHTH | Z | Pn | E | 2011-11-28 22:18:41 | 0.19 | y | 298 | 237 | |||
| IIEES | BJRD | Z | Pn | E | 2011-11-28 22:18:43 | 0.4 | y | 312 | 83 | |||
| IIEES | THKV | Z | Pn | E | 2011-11-28 22:18:44 | 0.39 | y | 316 | 240 | |||
| IIEES | GHVR | Z | Pn | E | 2011-11-28 22:18:53 | -0.55 | y | 402 | 217 | |||
| IIEES | ZNJK | Z | Pn | E | 2011-11-28 22:19:03 | -0.11 | y | 471 | 262 | |||
| IIEES | TABS | Z | Pn | E | 2011-11-28 22:19:07 | 0.26 | y | 507 | 144 | |||
| IIEES | GRMI | Z | Pn | E | 2011-11-28 22:19:12 | -0.14 | y | 550 | 289 | |||
