مشخصات زلزله

Magnitude	:2.8
Date & Time (UTC)	2011-11-17 08:10:17.5
Date & Time (Local)	1390/8/26  11:40:17.5

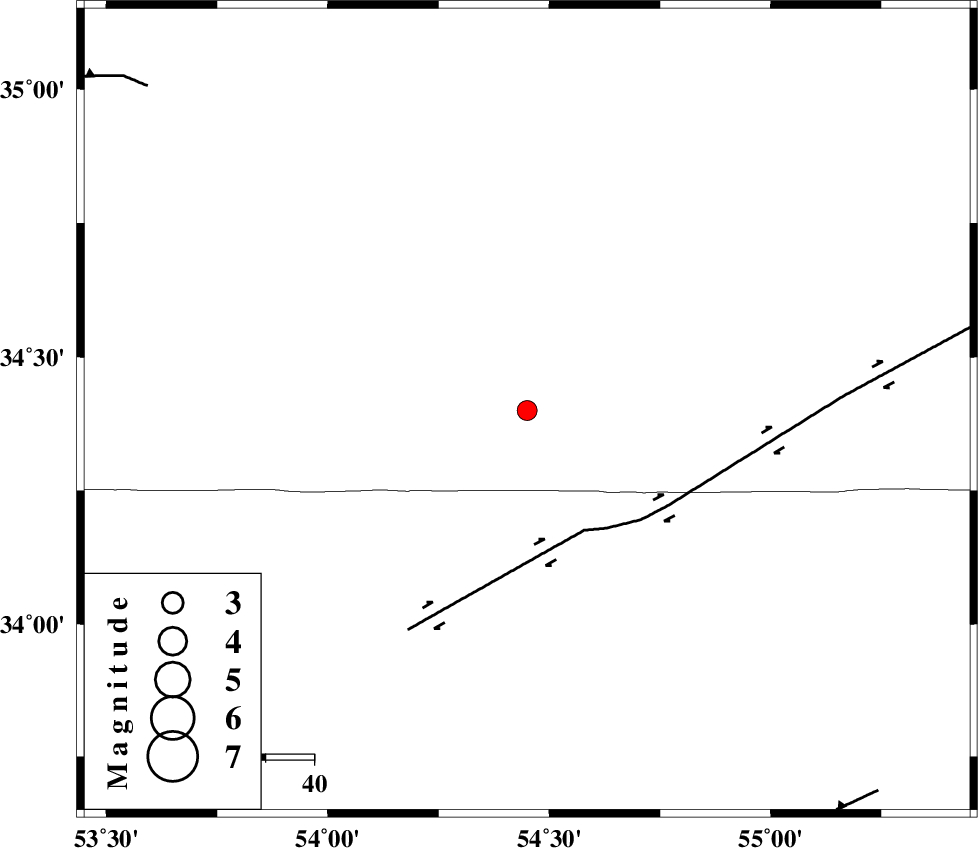

Location	Lat:34.4 Lon: 54.45
Region	Semnan Province, 196 km South of Damghan
Nearest Cities
	40 km North of Jondaq, Esfahan Province
	77 km North West of Farrokhi, Esfahan Province
	87 km North of Chupanan, Esfahan Province
	91 km North West of Khur, Esfahan Province
	119 km North West of Mehranjan, Esfahan Province
Depth	46 km
Agency
Faults within 150 km:
	DORUNEH_F (Length: 713 km) , Distance to epicenter: 28 km
	TORUD_F (Length: 136 km) , Distance to epicenter: 94 km
	KUH_E_GUGERD_F (Length: 73 km) , Distance to epicenter: 103 km
Number of Phases	7
RMS	0.5
Number of Stations	5
Error in Latitude	>4.6 km
Error in Longitude	3.1 km
Error in Depth	7.7 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
80695	IIEES	SHRO	E	66.5	0.32	2011-11-17 08:11:23	2011-11-17 12:03:00	n
80696	IIEES	SHRO	N	90	0.52	2011-11-17 08:11:25	2011-11-17 12:03:00	n
80697	IIEES	GHVR	N	24.4	0.4	2011-11-17 08:11:41	2011-11-17 12:03:00	n
80698	IIEES	GHVR	E	65.1	0.48	2011-11-17 08:11:42	2011-11-17 12:03:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	SHRO	Z	Pn	E		2011-11-17 08:10:50	0.58	y		228	38
IIEES	SHRO	N	Sg	E		2011-11-17 08:11:20	-0.68	y		228	38
IIEES	NASN	Z	Pn	E		2011-11-17 08:10:50	-0.6	y		234	221
IIEES	TABS	Z	Pn	E		2011-11-17 08:10:54	0.07	y		261	108
IIEES	TABS	N	Sg	E		2011-11-17 08:11:30	0.31	y		261	108
IIEES	GHVR	N	Sg	E		2011-11-17 08:11:38	-0.1	y		294	273
IIEES	CHTH	E	Sg	E		2011-11-17 08:11:53	0.48	y		346	300
