Magnitude |
:3.3 |
| Date & Time (UTC) | 2011-10-11 00:40:22.7 |
| Date & Time (Local) | 1390/7/19 04:10:22.7 |

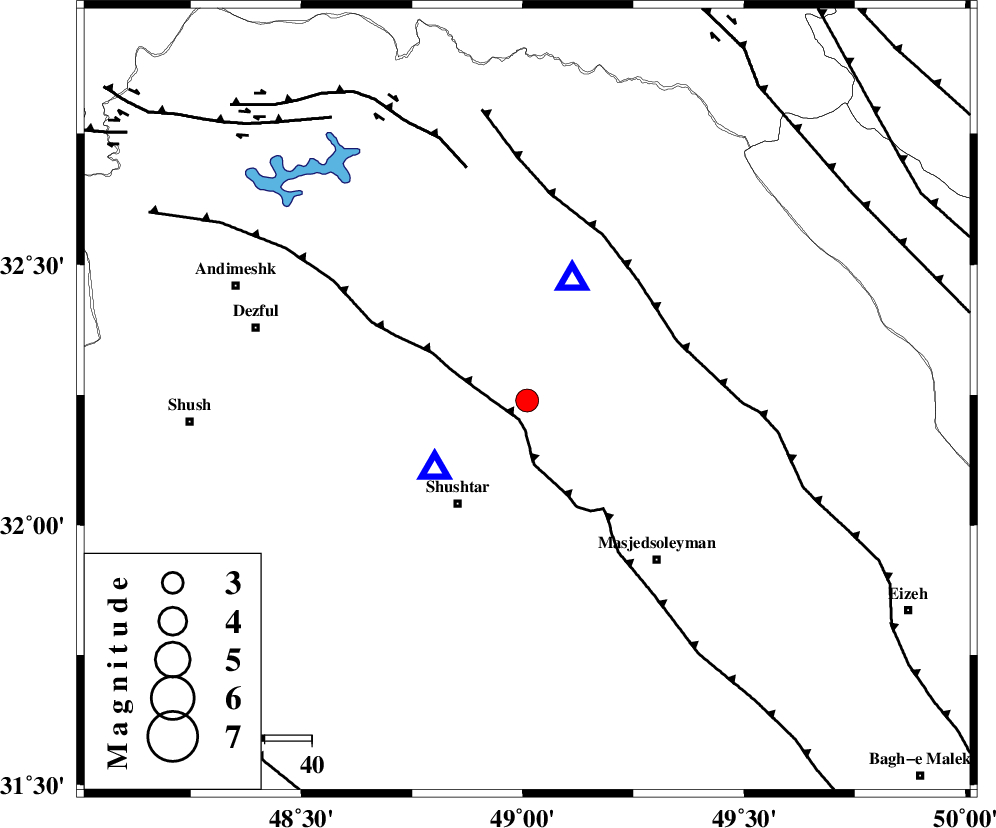

| Location | Lat:32.24 Lon: 49.01 |
| Region | Khoozestan Province, 19 km South of Lali |
Nearest Cities |
|
| 11 km West of Jaefarabad, Khoozestan Province | |
| 13 km North of Haft shahidan, Khoozestan Province | |
| 16 km North East of Samaleh, Khoozestan Province | |
| 19 km East of Gatvand, Khoozestan Province | |
| 19 km South of Lali, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 4 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 34 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 51 km | |
| Number of Phases | 8 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >1.4 km |
| Error in Longitude | 2.2 km |
| Error in Depth | 2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 80430 | IIEES | SHGR | N | 7105.9 | 0.36 | 2011-10-11 00:40:36 | 2011-10-11 12:59:00 | n |
| 80431 | IIEES | SHGR | E | 19039 | 0.36 | 2011-10-11 00:40:36 | 2011-10-11 12:59:00 | n |
| 80432 | IIEES | KHMZ | E | 318.5 | 0.44 | 2011-10-11 00:41:19 | 2011-10-11 12:59:00 | n |
| 80433 | IIEES | ASAO | N | 183.1 | 0.56 | 2011-10-11 00:41:47 | 2011-10-11 12:59:00 | n |
| 80434 | IIEES | ASAO | E | 125.9 | 0.56 | 2011-10-11 00:41:49 | 2011-10-11 12:59:00 | n |
| 80435 | IIEES | GHVR | E | 64 | 0.48 | 2011-10-11 00:42:01 | 2011-10-11 12:59:00 | n |
| 80436 | IIEES | GHVR | N | 28.2 | 0.4 | 2011-10-11 00:42:03 | 2011-10-11 12:59:00 | n |
| 80437 | IIEES | SNGE | E | 52.4 | 0.32 | 2011-10-11 00:42:06 | 2011-10-11 12:59:00 | n |
| 80438 | IIEES | SNGE | N | 56.1 | 0.52 | 2011-10-11 00:42:06 | 2011-10-11 12:59:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2011-10-11 00:40:27 | 0.01 | y | 24.3 | 235 | |||
| IIEES | KHMZ | Z | P | E | 2011-10-11 00:40:53 | -0.03 | y | 189 | 28 | |||
| IIEES | KHMZ | N | Sg | E | 2011-10-11 00:41:16 | 0.01 | y | 189 | 28 | |||
| IIEES | ASAO | Z | Pn | E | 2011-10-11 00:41:04 | 0.05 | y | 273 | 20 | |||
| IIEES | ASAO | N | Sg | E | 2011-10-11 00:41:39 | -0.02 | y | 273 | 20 | |||
| IIEES | GHVR | Z | Pn | E | 2011-10-11 00:41:10 | 0.09 | y | 324 | 39 | |||
| IIEES | SNGE | Z | Pn | E | 2011-10-11 00:41:14 | -0.06 | y | 353 | 334 | |||
| IIEES | NASN | Z | Pn | E | 2011-10-11 00:41:15 | -0.07 | y | 362 | 79 | |||
