مشخصات زلزله

Magnitude	:2.7
Date & Time (UTC)	2011-09-14 18:46:50.5
Date & Time (Local)	1390/6/23  23:16:50.5

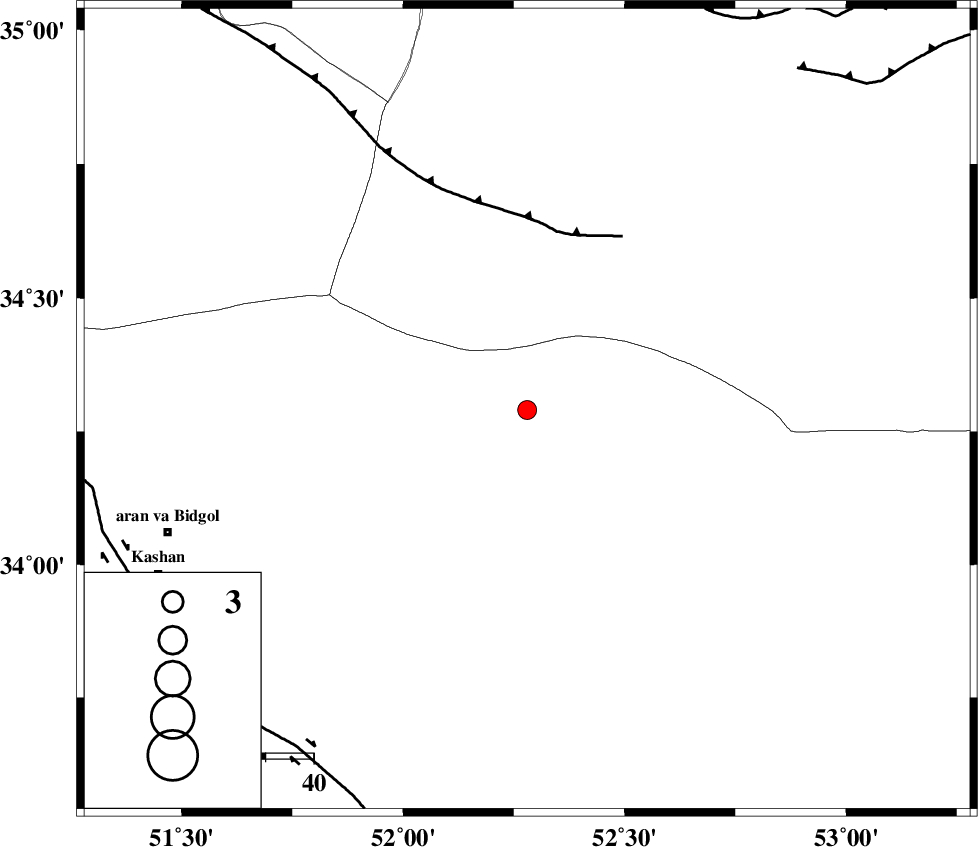

Location	Lat:34.29 Lon: 52.28
Region	Esfahan Province, 103 km South of Garmsar
Nearest Cities
	38 km East of Marnejab, Esfahan Province
	62 km North East of Hoseynabad, Esfahan Province
	62 km North East of Abuzeidabad, Esfahan Province
	75 km North East of Arisman, Esfahan Province
	79 km North East of Aran va bidgol, Esfahan Province
Depth	18 km
Agency
Faults within 150 km:
	SIAHKUH_F (Length: 154 km) , Distance to epicenter: 38 km
	ZEFREH_F (Length: 124 km) , Distance to epicenter: 85 km
	KASHAN_F (Length: 44 km) , Distance to epicenter: 87 km
Number of Phases	7
RMS	0
Number of Stations	5
Error in Latitude	>2.1 km
Error in Longitude	2 km
Error in Depth	2.5 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
80233	IIEES	NASN	E	67.7	0.24	2011-09-14 18:47:43	2011-09-14 07:13:00	n
80234	IIEES	NASN	N	67	0.36	2011-09-14 18:47:45	2011-09-14 07:13:00	n
80235	IIEES	ASAO	E	54.1	0.4	2011-09-14 18:47:54	2011-09-14 07:13:00	n
80236	IIEES	THKV	E	73	0.28	2011-09-14 18:47:58	2011-09-14 07:13:00	n
80237	IIEES	THKV	N	67.2	0.44	2011-09-14 18:47:59	2011-09-14 07:13:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	GHVR	Z	Pg	E		2011-09-14 18:47:07	-0.04	y		97.4	283
IIEES	GHVR	N	Sg	E		2011-09-14 18:47:19	0.04	y		97.4	283
IIEES	NASN	Z	Pg	E		2011-09-14 18:47:19	0.01	y		173	163
IIEES	ASAO	Z	Pn	E		2011-09-14 18:47:24	0.01	y		209	278
IIEES	ASAO	E	Sg	E		2011-09-14 18:47:50	-0.01	y		209	278
IIEES	THKV	Z	Pn	E		2011-09-14 18:47:25	0.01	y		221	325
IIEES	KHMZ	Z	Pn	E		2011-09-14 18:47:25	-0.02	y		222	255
