مشخصات زلزله

Magnitude	:2.5
Date & Time (UTC)	2011-07-10 17:37:48.7
Date & Time (Local)	1390/4/19  22:07:48.7

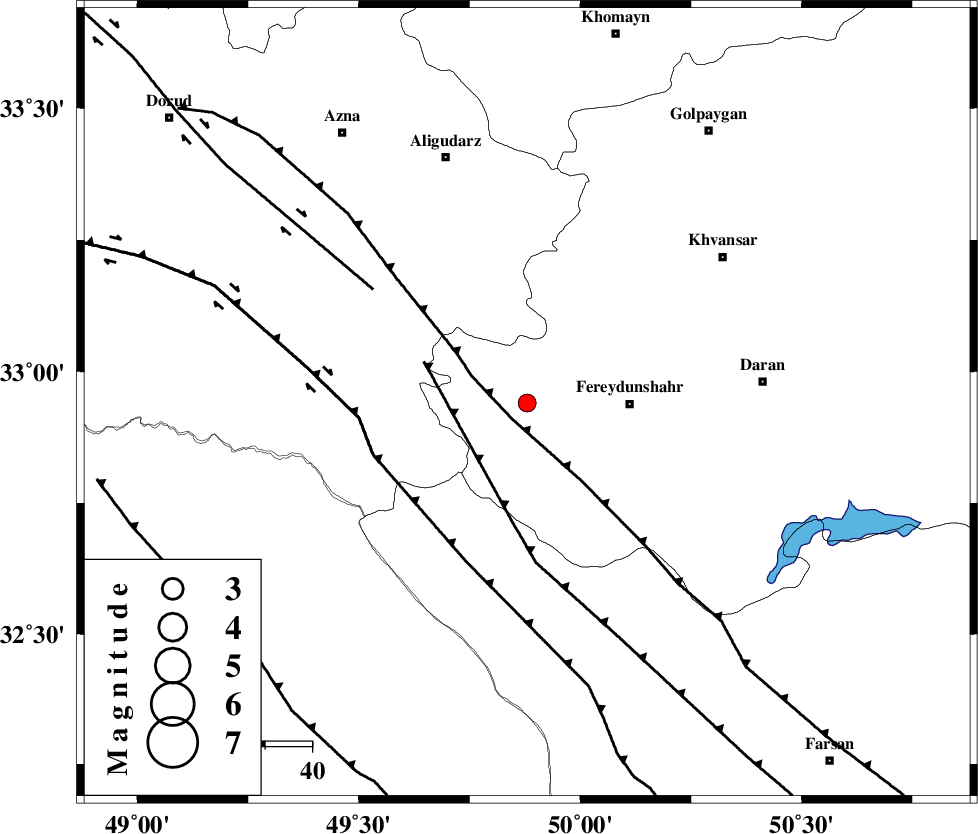

Location	Lat:32.94 Lon: 49.88
Region	Esfahan Province, 21 km West of Fereydunshahr
Nearest Cities
	11 km North of Masir, Esfahan Province
	16 km South of Farsesh, Lorestan Province
	18 km North West of Sibak, Esfahan Province
	21 km West of Afus, Esfahan Province
	22 km North West of Fereydunshahr, Esfahan Province
Depth	17 km
Agency
Faults within 150 km:
	MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 5 km
	ARDAL_F (Length: 170 km) , Distance to epicenter: 23 km
	HZF4 (Length: 492 km) , Distance to epicenter: 34 km
Number of Phases	6
RMS	0.1
Number of Stations	5
Error in Latitude	>1.6 km
Error in Longitude	3.4 km
Error in Depth	4.6 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
79652	IIEES	SHGR	N	74.4	0.64	2011-07-10 17:38:38	2011-07-10 06:47:00	n
79653	IIEES	SHGR	E	101.1	0.68	2011-07-10 17:38:42	2011-07-10 06:47:00	n
79654	IIEES	ASAO	N	41.1	0.56	2011-07-10 17:38:51	2011-07-10 06:47:00	n
79655	IIEES	ASAO	E	52.2	0.56	2011-07-10 17:38:53	2011-07-10 06:47:00	n
79656	IIEES	GHVR	E	43.5	0.68	2011-07-10 17:39:05	2011-07-10 06:47:00	n
79657	IIEES	GHVR	N	36.9	0.6	2011-07-10 17:39:11	2011-07-10 06:47:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	KHMZ	Z	Pg	E		2011-07-10 17:38:04	0.08	y		88.6	5
IIEES	KHMZ	E	Sg	E		2011-07-10 17:38:15	-0.09	y		88.6	5
IIEES	SHGR	Z	Pg	E		2011-07-10 17:38:11	0.14	y		138	228
IIEES	SHGR	E	Sg	E		2011-07-10 17:38:28	-0.12	y		138	228
IIEES	ASAO	Z	Pn	E		2011-07-10 17:38:18	0.05	y		178	4
IIEES	NASN	Z	Pn	E		2011-07-10 17:38:30	-0.06	y		274	93
