مشخصات زلزله

Magnitude	:2.8
Date & Time (UTC)	2011-07-09 01:11:40.4
Date & Time (Local)	1390/4/18  05:41:40.4
Location	Lat:31.26 Lon: 56.47
Region	Kerman Province, 32 km West of Ravar
Nearest Cities
	13 km North of Toghroljerd, Kerman Province
	21 km South East of Jor, Kerman Province
	24 km North of Dasht-e khak, Kerman Province
	24 km South East of Kuhbanan, Kerman Province
	32 km North West of Ahmadi, Kerman Province
Depth	18 km
Agency

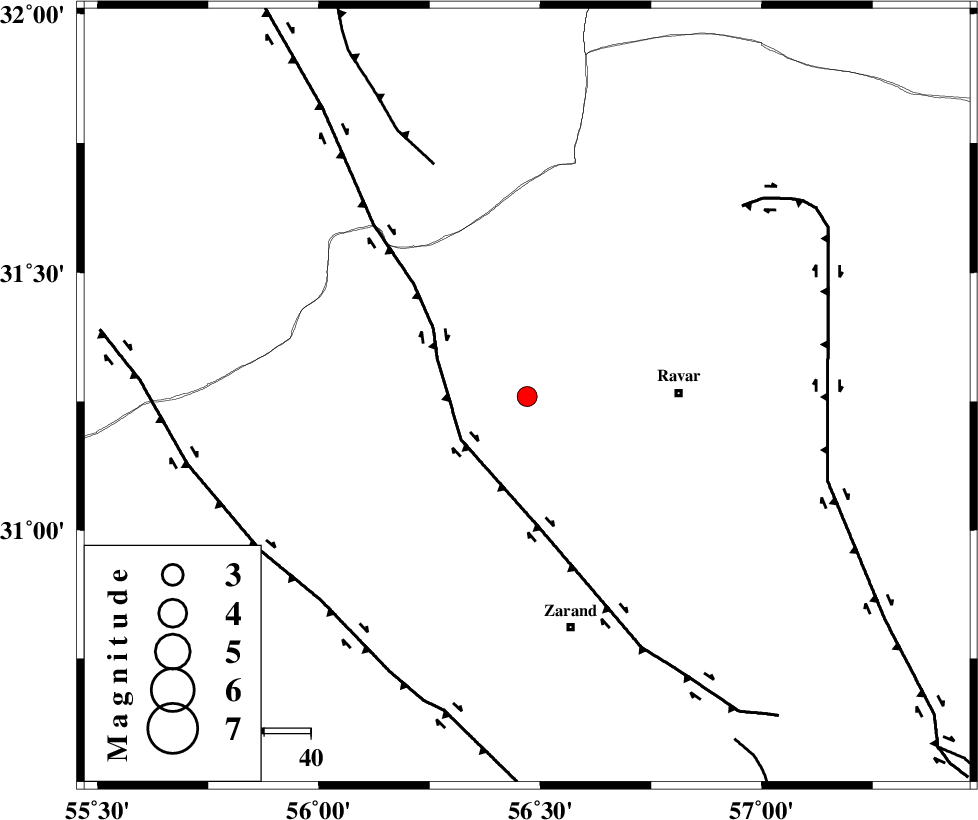

Faults within 150 km:
	KUHBANAN_F (Length: 189 km) , Distance to epicenter: 17 km
	JAFARABAD_F (Length: 60 km) , Distance to epicenter: 54 km
	LAKARKUH_F (Length: 138 km) , Distance to epicenter: 62 km
Number of Phases	5
RMS	0
Number of Stations	3
Error in Latitude	>0.9 km
Error in Longitude	4.2 km
Error in Depth	4.5 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
79600	IIEES	KRBR	N	247.8	0.28	2011-07-09 01:12:24	2011-07-09 01:25:00	n
79601	IIEES	KRBR	E	175.6	0.28	2011-07-09 01:12:28	2011-07-09 01:25:00	n
79602	IIEES	TABS	E	28.3	0.36	2011-07-09 01:13:04	2011-07-09 01:25:00	n
79603	IIEES	TABS	N	50.8	0.36	2011-07-09 01:13:07	2011-07-09 01:25:00	n
79604	IIEES	NASN	E	25.4	0.44	2011-07-09 01:13:29	2011-07-09 01:25:00	n
79605	IIEES	NASN	N	27.2	0.44	2011-07-09 01:13:33	2011-07-09 01:25:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	KRBR	Z	Pg	E		2011-07-09 01:12:04	-0.05	y		145	169
IIEES	KRBR	N	Sg	E		2011-07-09 01:12:22	0.05	y		145	169
IIEES	TABS	Z	Pn	E		2011-07-09 01:12:21	-0.04	y		271	13
IIEES	TABS	E	Sg	E		2011-07-09 01:12:56	0.03	y		271	13
IIEES	NASN	Z	Pn	E		2011-07-09 01:12:35	0.02	y		386	297
