Magnitude |
:3 |
| Date & Time (UTC) | 2011-01-23 20:38:38.9 |
| Date & Time (Local) | 1389/11/4 00:08:38.9 |
| Location | Lat:34.88 Lon: 51.87 |
| Region | Qom Province, 53 km South-East of Varamin |
Nearest Cities |
|
| 45 km South of Shorqazi, Semnan Province | |
| 47 km South West of Cheshmeh nadi, Semnan Province | |
| 48 km South East of Ab barik, Tehran Province | |
| 49 km South East of Pishva, Tehran Province | |
| 52 km South East of Varamin, Tehran Province | |
| Depth | 27 km |
| Agency | |

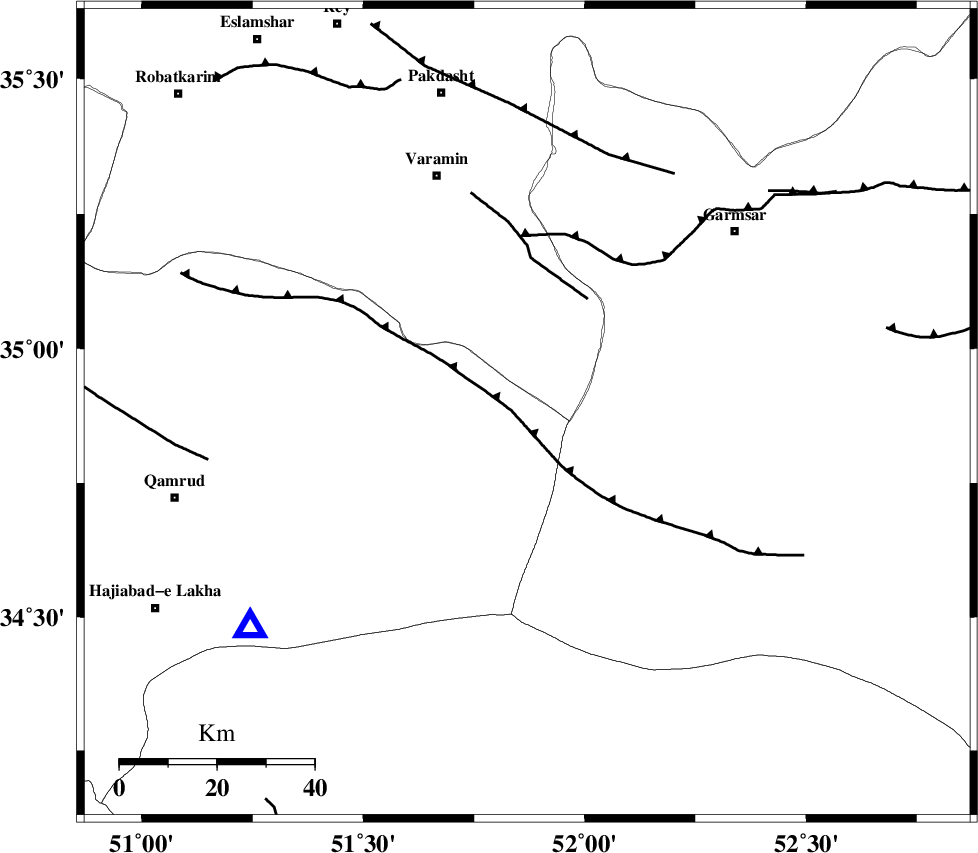

Faults within 150 km: |
|
| SIAHKUH_F (Length: 154 km) , Distance to epicenter: 8 km | |
| PISHAV_F (Length: 34 km) , Distance to epicenter: 27 km | |
| GARMSAR_F (Length: 77 km) , Distance to epicenter: 36 km | |
| Number of Phases | 10 |
| RMS | 0.2 |
| Number of Stations | 8 |
| Error in Latitude | >2.4 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 5.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 77312 | IIEES | GHVR | N | 1170.5 | 0.16 | 2011-01-23 20:39:01 | 2011-01-23 09:02:00 | n |
| 77313 | IIEES | GHVR | E | 839.6 | 0.12 | 2011-01-23 20:39:02 | 2011-01-23 09:02:00 | n |
| 77314 | IIEES | DAMV | E | 906.6 | 0.12 | 2011-01-23 20:39:06 | 2011-01-23 09:02:00 | n |
| 77315 | IIEES | DAMV | N | 1078.4 | 0.08 | 2011-01-23 20:39:06 | 2011-01-23 09:02:00 | n |
| 77316 | IIEES | CHTH | N | 211.3 | 0.27 | 2011-01-23 20:39:18 | 2011-01-23 09:02:00 | n |
| 77317 | IIEES | THKV | N | 219.5 | 0.28 | 2011-01-23 20:39:23 | 2011-01-23 09:02:00 | n |
| 77318 | IIEES | THKV | E | 125.1 | 0.37 | 2011-01-23 20:39:29 | 2011-01-23 09:02:00 | n |
| 77319 | IIEES | NASN | E | 82.5 | 0.44 | 2011-01-23 20:39:47 | 2011-01-23 09:02:00 | n |
| 77320 | IIEES | NASN | N | 60.9 | 0.32 | 2011-01-23 20:39:50 | 2011-01-23 09:02:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHVR | Z | Pg | E | 2011-01-23 20:38:51 | -0.3 | y | 72.3 | 233 | |||
| IIEES | DAMV | Z | Pg | E | 2011-01-23 20:38:53 | 0.3 | y | 84 | 6 | |||
| IIEES | CHTH | Z | Pg | E | 2011-01-23 20:39:00 | -0.1 | y | 133 | 330 | |||
| IIEES | THKV | Z | Pn | E | 2011-01-23 20:39:03 | -0.2 | y | 146 | 322 | |||
| IIEES | THKV | E | Sg | E | 2011-01-23 20:39:20 | -0.1 | y | 146 | 322 | |||
| IIEES | ASAO | Z | Pn | E | 2011-01-23 20:39:07 | 0 | y | 173 | 258 | |||
| IIEES | ASAO | N | Sg | E | 2011-01-23 20:39:27 | 0.1 | y | 173 | 258 | |||
| IIEES | KHMZ | Z | Pn | E | 2011-01-23 20:39:12 | 0.3 | y | 216 | 235 | |||
| IIEES | NASN | Z | Pn | E | 2011-01-23 20:39:16 | 0.2 | y | 246 | 159 | |||
| IIEES | TABS | Z | Pn | E | 2011-01-23 20:39:47 | -0.4 | y | 502 | 104 | |||
