Magnitude |
:4.5 |
| Date & Time (UTC) | 2010-11-21 15:58:37.4 |
| Date & Time (Local) | 1389/8/30 19:28:37.4 |

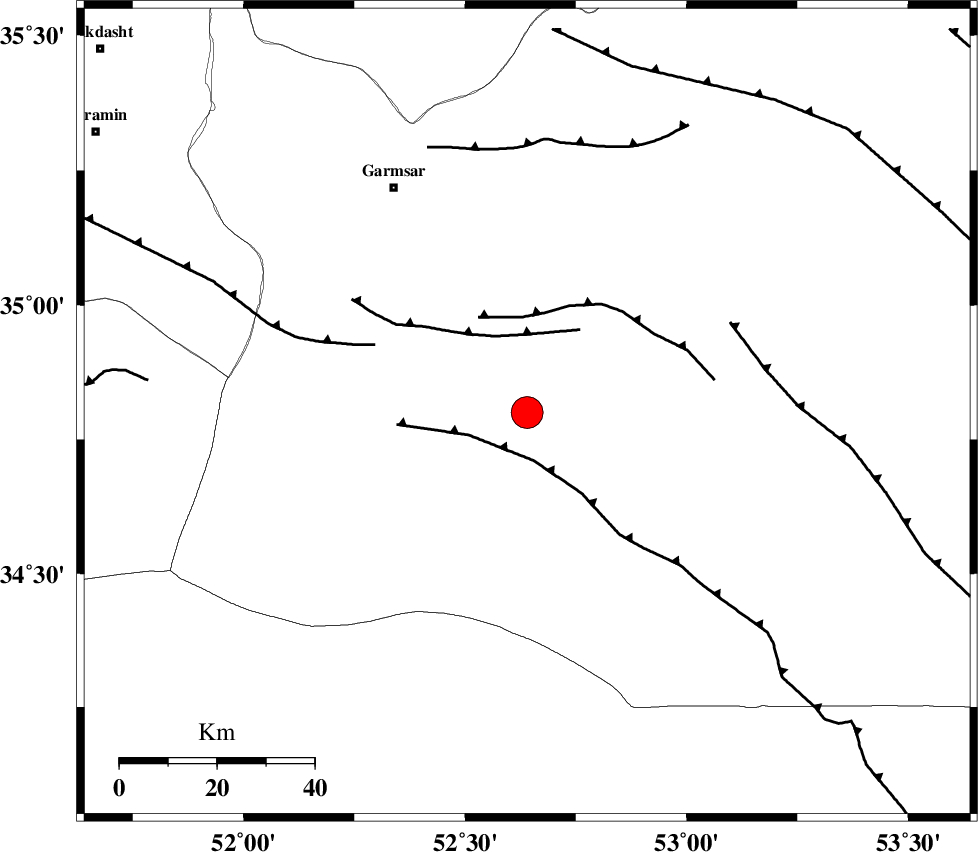

| Location | Lat:34.8 Lon: 52.64 |
| Region | Semnan Province, 54 km South-East of Garmsar |
Nearest Cities |
|
| 46 km South East of Gardovan, Semnan Province | |
| 48 km South of Kohanabad, Semnan Province | |
| 49 km South East of Davarabad, Semnan Province | |
| 51 km South East of Aradan, Semnan Province | |
| 52 km South East of Lajran, Semnan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| SIAHKUH_F (Length: 154 km) , Distance to epicenter: 23 km | |
| KUH_E_GUGERD_F (Length: 73 km) , Distance to epicenter: 27 km | |
| KUH_E_GACHAB_F1 (Length: 53 km) , Distance to epicenter: 27 km | |
| Number of Phases | 11 |
| RMS | 0.1 |
| Number of Stations | 8 |
| Error in Latitude | >1.7 km |
| Error in Longitude | 2.5 km |
| Error in Depth | 4.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 74170 | IIEES | DAMV | E | 12483.9 | 0.72 | 2010-11-21 15:59:11 | 2010-11-21 04:53:00 | n |
| 74171 | IIEES | NASN | E | 5986.7 | 0.44 | 2010-11-21 15:59:42 | 2010-11-21 04:53:00 | n |
| 74172 | IIEES | NASN | N | 8002.8 | 0.32 | 2010-11-21 15:59:42 | 2010-11-21 04:53:00 | n |
| 74173 | IIEES | ASAO | E | 2742 | 0.64 | 2010-11-21 15:59:46 | 2010-11-21 04:53:00 | n |
| 74174 | IIEES | ASAO | N | 2307.9 | 0.68 | 2010-11-21 15:59:47 | 2010-11-21 04:53:00 | n |
| 74175 | IIEES | SHRO | E | 840.9 | 0.64 | 2010-11-21 16:00:29 | 2010-11-21 04:53:00 | n |
| 74176 | IIEES | SHRO | N | 966.3 | 0.56 | 2010-11-21 16:00:32 | 2010-11-21 04:53:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | DAMV | Z | Pg | E | 2010-11-21 15:58:56 | 0.1 | y | 111 | 327 | |||
| IIEES | DAMV | E | Sg | E | 2010-11-21 15:59:10 | 0.1 | y | 111 | 327 | |||
| IIEES | GHVR | Z | Pg | E | 2010-11-21 15:58:59 | 0 | y | 133 | 255 | |||
| IIEES | GHVR | E | Sg | E | 2010-11-21 15:59:15 | 0.1 | y | 133 | 255 | |||
| IIEES | CHTH | Z | P | E | 2010-11-21 15:59:07 | -0.1 | y | 185 | 312 | |||
| IIEES | NASN | Z | P | E | 2010-11-21 15:59:12 | 0.1 | y | 222 | 176 | |||
| IIEES | ASAO | Z | Pn | E | 2010-11-21 15:59:14 | -0.2 | y | 242 | 264 | |||
| IIEES | ASAO | N | Sg | E | 2010-11-21 15:59:45 | -0.2 | y | 242 | 264 | |||
| IIEES | KHMZ | Z | Pn | E | 2010-11-21 15:59:18 | 0.1 | y | 273 | 245 | |||
| IIEES | SHRO | Z | P | E | 2010-11-21 15:59:26 | -0.2 | y | 334 | 65 | |||
| IIEES | MRVT | Z | P | E | 2010-11-21 15:59:39 | 0 | y | 443 | 43 | |||
